Name: Heater/Air Cond.External Components (Main Unit) (Itatiaia (Brazil)) ((V) FROMGT000001, (V) TOKT999999)
Rating: 4.9 (1 reviews)

Heater/Air Cond.External Components (Main Unit) (Itatiaia (Brazil)) ((V) FROMGT000001, (V) TOKT999999) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Heater/Air Cond.External Components (Main Unit) (Itatiaia (Brazil)) ((V) FROMGT000001, (V)...

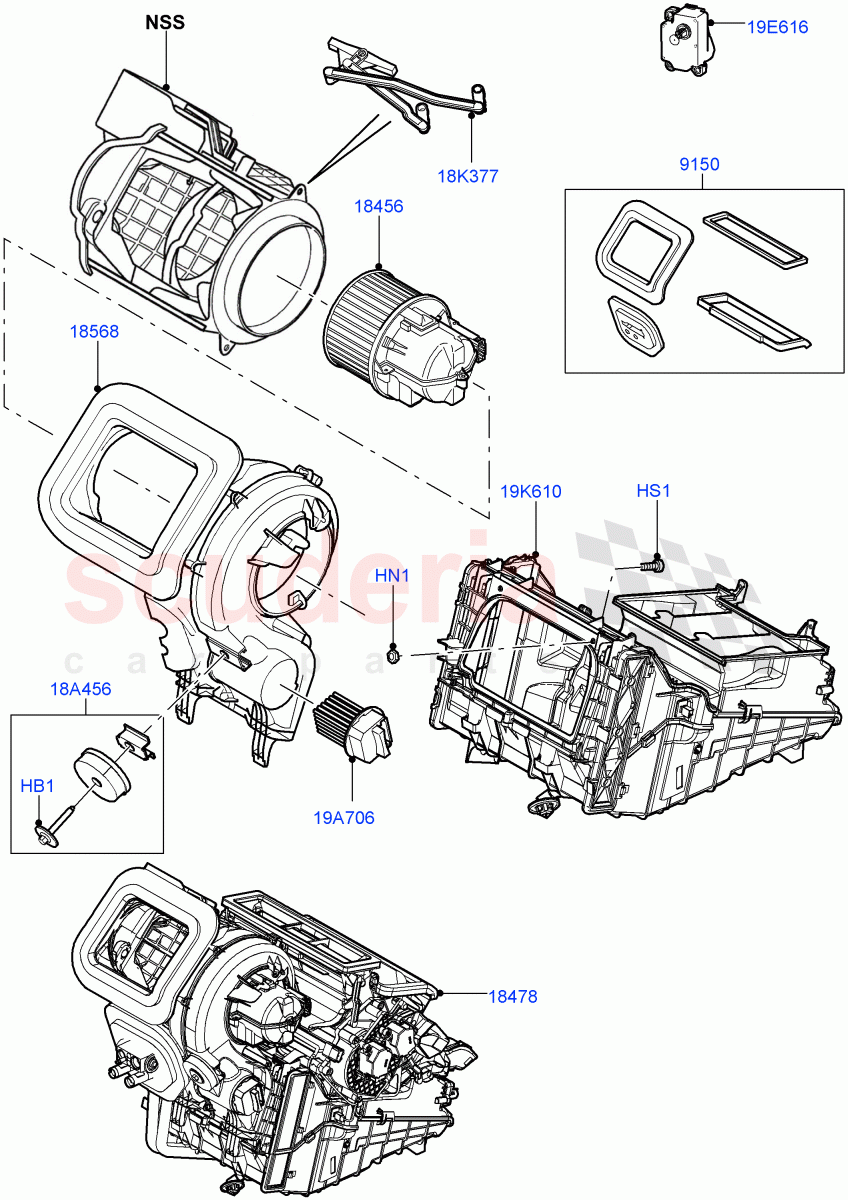

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR005381	BOLT AND WASHER - HEX.HEAD	$1.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001088	NUT	$3.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001090	SCREW	$3.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066930	KIT - SEAL	$37.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066917	MOTOR AND FAN - BLOWER	$132.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078678	HEATER & EVAPORATOR UNIT	$1,460.39	To Order
	LR078680	HEATER & EVAPORATOR UNIT	$1,462.60	To Order
	LR078682	HEATER & EVAPORATOR UNIT	$1,483.43	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR066920	HOUSING - HEATER BLOWER	$119.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003561	BRACKET - HEATER MOUNTING	$22.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003173	LEVER - CONTROL - AIR DISTRIBUTION	$6.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066932	RESISTOR - HEATER BLOWER MOTOR	$81.31	To Order
	LR094345	RESISTOR - HEATER BLOWER MOTOR	$561.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066927	STEPPER MOTOR - HEATER	$91.41	To Order
	LR066927	STEPPER MOTOR - HEATER	$91.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066928	HOUSING - A/C EVAPORATOR AND BLOWER	$96.17	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR005381	BOLT AND WASHER - HEX.HEAD	LR005381 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M6 X 40MM / From: GT000001	$1.32	1
HN1	LR001088	NUT	LR001088 NUT 3.5MM, With Spring Nut / From: GT000001	$3.78	2
HS1	LR001090	SCREW	LR001090 SCREW 3.5 x 16MM, Torx / From: GT000001	$3.98	2
18A456	LR003561	BRACKET - HEATER MOUNTING	LR003561 BRACKET - HEATER MOUNTING Service Kit / From: GT000001	$22.80	1
18K377	LR003173	LEVER - CONTROL - AIR DISTRIBUTION	LR003173 LEVER - CONTROL - AIR DISTRIBUTION From: GT000001	$6.60	1
19A706	LR066932	RESISTOR - HEATER BLOWER MOTOR	LR066932 RESISTOR - HEATER BLOWER MOTOR Blower Motor / From: GT000001 / To: HT999999	$81.31	1
19A706	LR094345	RESISTOR - HEATER BLOWER MOTOR	LR094345 RESISTOR - HEATER BLOWER MOTOR Blower Motor / From: JT000001	$561.64	1
19E616	LR066927	STEPPER MOTOR - HEATER	LR066927 STEPPER MOTOR - HEATER ATC Air Conditioning / From: GT000001	$91.41	5
19E616	LR066927	STEPPER MOTOR - HEATER	LR066927 STEPPER MOTOR - HEATER With Manual Air Conditioning / From: GT000001	$91.41	3
19K610	LR066928	HOUSING - A/C EVAPORATOR AND BLOWER	LR066928 HOUSING - A/C EVAPORATOR AND BLOWER Heater Assy / From: GT000001	$96.17	1
9150	LR066930	KIT - SEAL	LR066930 KIT - SEAL Set Of 4 Pieces / From: GT000001	$37.87	1
18456	LR066917	MOTOR AND FAN - BLOWER	LR066917 MOTOR AND FAN - BLOWER From: GT000001	$132.54	1
18478	LR078678	HEATER & EVAPORATOR UNIT	LR078678 HEATER & EVAPORATOR UNIT Less Pollution Sensor, Less Rear Compartment Duct, With Manual Air Conditioning / From: GT000001 / To: HT999999	$1,460.39	1
18478	LR078680	HEATER & EVAPORATOR UNIT	LR078680 HEATER & EVAPORATOR UNIT ATC Air Conditioning, Less Pollution Sensor, Less Rear Compartment Duct / From: GT000001 / To: HT999999	$1,462.60	1
18478	LR078682	HEATER & EVAPORATOR UNIT	LR078682 HEATER & EVAPORATOR UNIT ATC Air Conditioning, Less Rear Compartment Duct, With Pollution Sensor / From: GT000001 / To: HT999999	$1,483.43	1
18478	LR078684	HEATER & EVAPORATOR UNIT	LR078684 HEATER & EVAPORATOR UNIT ATC Air Conditioning, Less Pollution Sensor, With Rear Duct / B-Pillar / From: GT000001 / To: HT999999	$1,484.69	1
18478	LR078686	HEATER & EVAPORATOR UNIT	LR078686 HEATER & EVAPORATOR UNIT ATC Air Conditioning, With Pollution Sensor, With Rear Duct / B-Pillar / From: GT000001 / To: HT999999	$1,455.57	1
18478	LR094335	HEATER & EVAPORATOR UNIT	LR094335 HEATER & EVAPORATOR UNIT Less Air Purifier Sensor, Less Pollution Sensor, With Manual Air Conditioning / From: JT000001	$1,411.75	1
18478	LR094337	HEATER & EVAPORATOR UNIT	LR094337 HEATER & EVAPORATOR UNIT Less Air Purifier Sensor, Less Pollution Sensor, With Front Comfort Air Con (IHKA) / From: JT000001	$1,311.27	1
18478	LR094339	HEATER & EVAPORATOR UNIT	LR094339 HEATER & EVAPORATOR UNIT With Air Purifier Sensor, With Front Comfort Air Con (IHKA), With Pollution Sensor / From: JT000001	$1,538.06	1
18478	LR094341	HEATER & EVAPORATOR UNIT	LR094341 HEATER & EVAPORATOR UNIT Less Air Purifier Sensor, Less Pollution Sensor, With ATC Air Con & Row 2 Vents / From: JT000001	$1,565.05	1
18478	LR094343	HEATER & EVAPORATOR UNIT	LR094343 HEATER & EVAPORATOR UNIT With ATC Air Con & Row 2 Vents, With Air Purifier Sensor, With Pollution Sensor / From: JT000001	$1,631.87	1
18568	LR066920	HOUSING - HEATER BLOWER	LR066920 HOUSING - HEATER BLOWER From: GT000001	$119.66	1
