Find Your Part

View All

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073787	PIN - CENTERING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135858	PLUG - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095782	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073676	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073786	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122697	SEAL - CRANKSHAFT OIL - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR172770	RETAINER - CRANKSHAFT OIL SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125452	RETAINER AND SEAL - CRANKSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126181	SENSOR - CRANKSHAFT POSITION - CPS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057802	DOWEL - PIN	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HP1	LR073787	PIN - CENTERING	LR073787 PIN - CENTERING 15.7MM, Pin - Dowell / From: KG446856	-	2	Enquire
HP2	LR135858	PLUG - ENGINE	LR135858 PLUG - ENGINE Blanking, Chain Drive, Includes O'Ring	-	1	Enquire
HR1	LR095782	O-RING	LR095782 O-RING 17.0MM, Sensor - Crankshaft Position - CPS / From: KG446856	-	1	Enquire
HS1	LR073676	SCREW	LR073676 SCREW M8 x 35mm, Timing Chain Cover / From: KG446856	-	9	Enquire
HS2	LR073786	SCREW	LR073786 SCREW M8 X 30MM, Timing Chain Cover / From: KG446856	-	3	Enquire
HS3	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM, Sensor - Crankshaft Position - CPS / From: KG446856	-	1	Enquire
6C315	LR126181	SENSOR - CRANKSHAFT POSITION - CPS	LR126181 SENSOR - CRANKSHAFT POSITION - CPS From: LG106574	-	1	Enquire
19E744	LR057802	DOWEL - PIN	LR057802 DOWEL - PIN	-	2	Enquire
6019A	LR172770	RETAINER - CRANKSHAFT OIL SEAL	LR172770 RETAINER - CRANKSHAFT OIL SEAL From: KG446856	-	1	Enquire
6019B	LR125452	RETAINER AND SEAL - CRANKSHAFT	LR125452 RETAINER AND SEAL - CRANKSHAFT From: KG446856	-	1	Enquire
7052	LR122697	SEAL - CRANKSHAFT OIL - REAR	LR122697 SEAL - CRANKSHAFT OIL - REAR Crankshaft Oil Seal	-	1	Enquire

Haven't found what you're looking for?

View Cart / Checkout

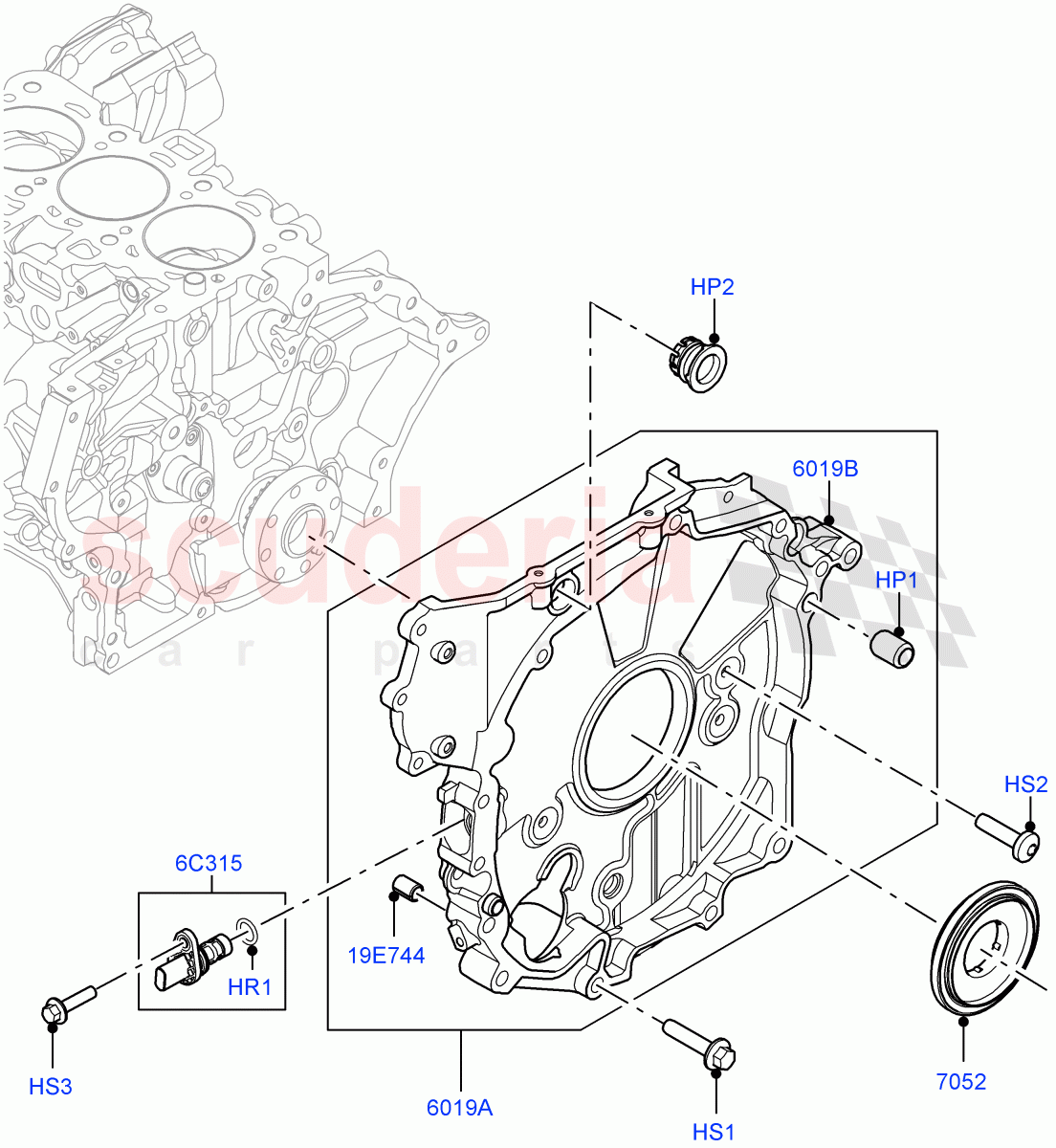

Timing Gear Covers (1.5L Aj20P3 Petrol High Phev, Changsu (China), 1.5L Aj20P3 Petrol High)

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]
