Cylinder Head Cover (1.5L AJ20P3 Petrol High PHEV, Halewood (UK), 1.5L AJ20P3 Petrol High) ((V) FROMLH000001) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Cylinder Head Cover (1.5L AJ20P3 Petrol High PHEV, Halewood (UK), 1.5L AJ20P3 Petrol High) ((V)...

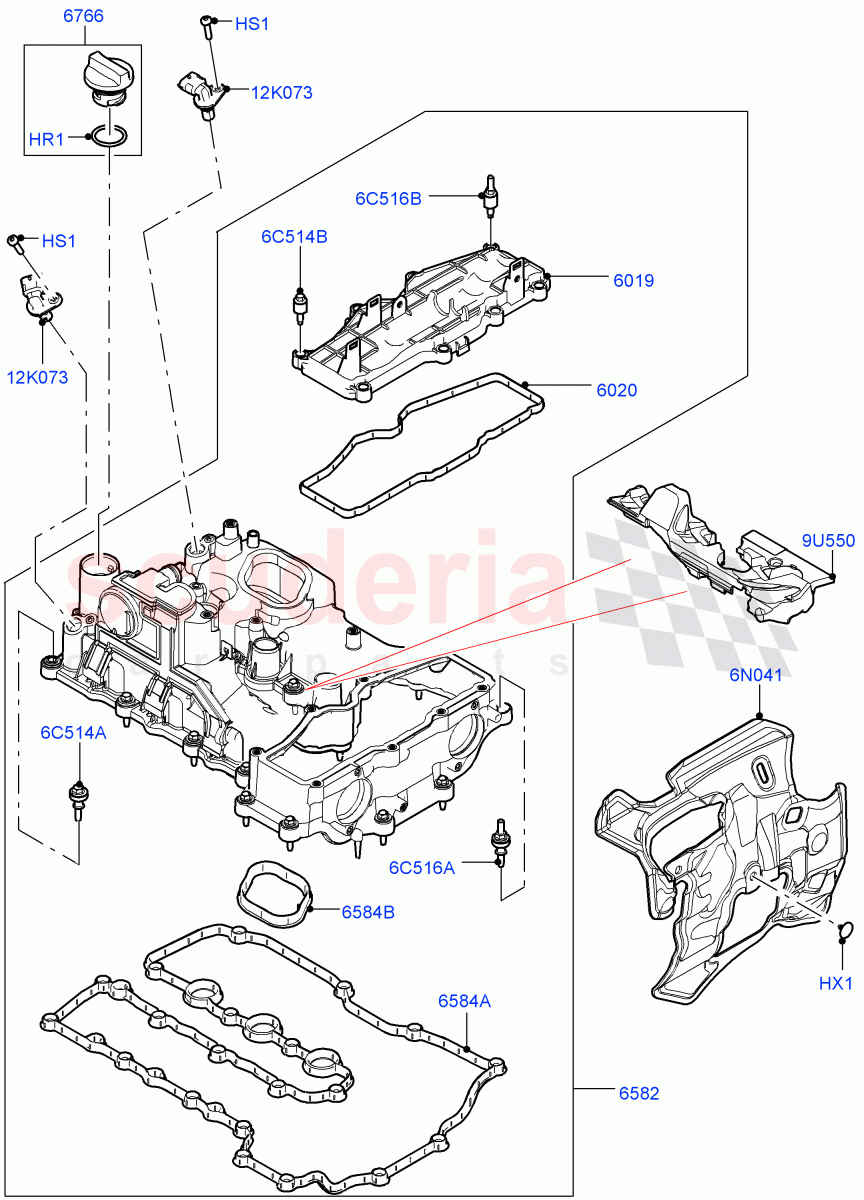

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073781	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073666	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125568	PIN - FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140253	COVER - CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140254	GASKET - COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125453	COVER - CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094641	CAP - OIL FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140255	GASKET - COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140289	GASKET - COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125567	INSULATOR - CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125402	COVER - INSULATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125465	SENSOR - CAMSHAFT POSITION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140285	SCREW AND SLEEVE - VALVE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140287	SCREW AND SLEEVE - VALVE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140286	STUD AND SLEEVE - VALVE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140288	STUD AND SLEEVE - VALVE COVER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HR1	LR073781	O-RING	LR073781 O-RING Filler Cap,	-	1	Enquire
HS1	LR073666	SCREW	LR073666 SCREW Camshaft Position Sensor, M5 x 20MM / From: LH000001	-	2	Enquire
HX1	LR125568	PIN - FIXING	LR125568 PIN - FIXING 4.75 X 0.79-7,9, Pin / From: LH000001	-	2	Enquire
6C514A	LR140285	SCREW AND SLEEVE - VALVE COVER	LR140285 SCREW AND SLEEVE - VALVE COVER Grommet Included, M6 x 35MM / From: LH000001	-	18	Enquire
6C514B	LR140287	SCREW AND SLEEVE - VALVE COVER	LR140287 SCREW AND SLEEVE - VALVE COVER Grommet Included, M6 X 28.5MM / From: LH000001	-	4	Enquire
6C516A	LR140286	STUD AND SLEEVE - VALVE COVER	LR140286 STUD AND SLEEVE - VALVE COVER Grommet Included, M6 x 15MM, M6 x 35MM / From: LH000001	-	2	Enquire
6C516B	LR140288	STUD AND SLEEVE - VALVE COVER	LR140288 STUD AND SLEEVE - VALVE COVER Stud & Grommet Assy / From: LH000001	-	4	Enquire
6N041	LR125567	INSULATOR - CYLINDER HEAD	LR125567 INSULATOR - CYLINDER HEAD LH / From: LH000001	-	1	Enquire
9U550	LR125402	COVER - INSULATOR	LR125402 COVER - INSULATOR Top / From: LH000001	-	1	Enquire
12K073	LR125465	SENSOR - CAMSHAFT POSITION	LR125465 SENSOR - CAMSHAFT POSITION Camshaft Position Sensor / From: LH000001	-	2	Enquire
6019	LR140253	COVER - CYLINDER HEAD	LR140253 COVER - CYLINDER HEAD Timing Chain, Upper / From: LH000001	-	1	Enquire
6020	LR140254	GASKET - COVER	LR140254 GASKET - COVER Cover, Upper / From: LH000001	-	1	Enquire
6582	LR125453	COVER - CAMSHAFT	LR125453 COVER - CAMSHAFT Includes Oil Separator / From: LH000001	-	1	Enquire
6584A	LR140255	GASKET - COVER	LR140255 GASKET - COVER Camshaft Cover / From: LH000001	-	1	Enquire
6584B	LR140289	GASKET - COVER	LR140289 GASKET - COVER For Fuel Pump Bracket / From: LH000001	-	1	Enquire
6766	LR094641	CAP - OIL FILLER	LR094641 CAP - OIL FILLER From: LH000001	-	1	Enquire
