Windscreen Wiper of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6] - Windscreen Wiper

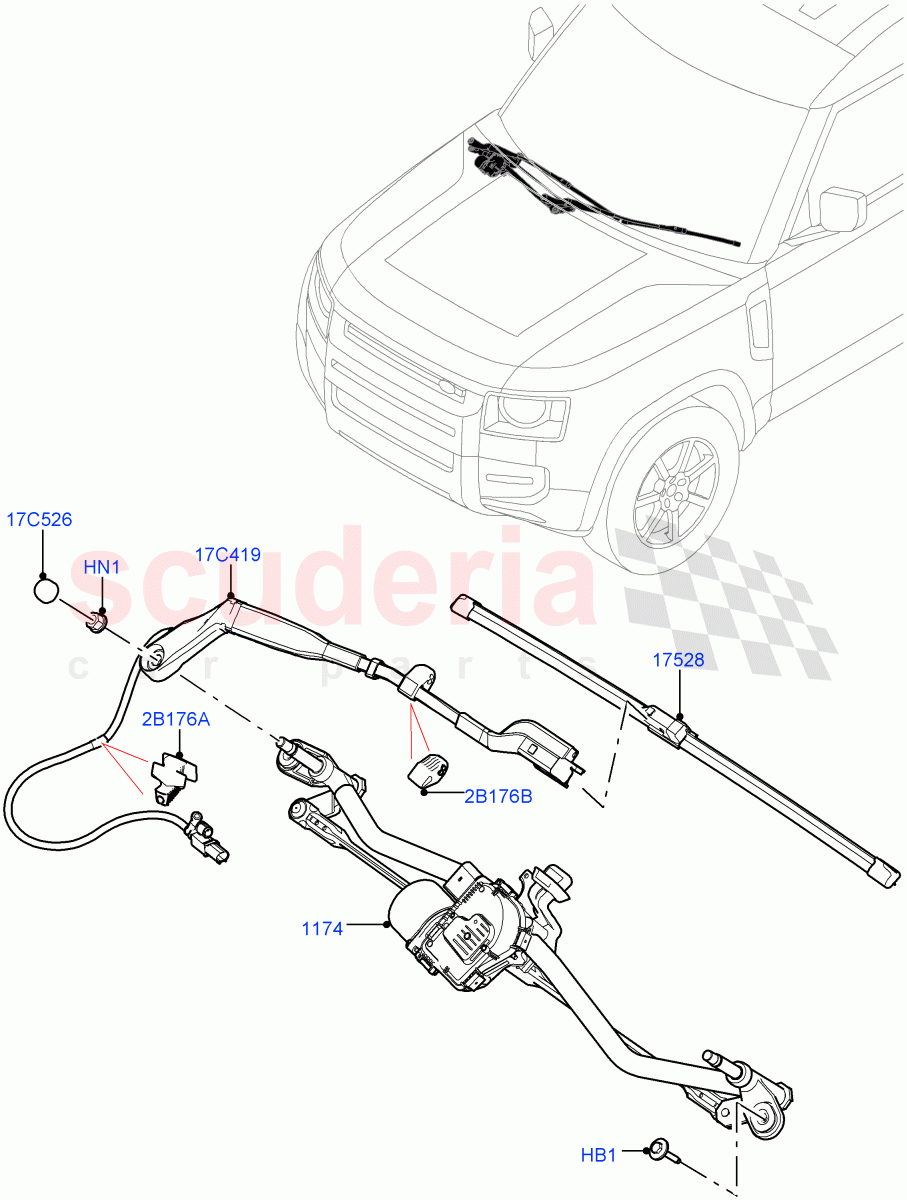

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500910	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500390	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132116	WIPER MOTOR AND MECHANISM	Enquire	To Order
	LR132117	WIPER MOTOR AND MECHANISM	Enquire	To Order
	LR146339	WIPER MOTOR AND MECHANISM	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR132122	BLADE - WIPER	Enquire	To Order
	LR132132	BLADE - WIPER	Enquire	To Order
	LR161915	BLADE - WIPER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR132119	ARM - WIPER	Enquire	To Order
	LR132123	ARM - WIPER	Enquire	To Order
	LR132124	ARM - WIPER	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR000085	CAP	Enquire	To Order
	LR139961	CAP - WIPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138648	GROMMET - WIPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138649	GROMMET - WIPER	Enquire	To Order
	LR138650	GROMMET - WIPER	Enquire	To Order
	LR138651	GROMMET - WIPER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	RYG500910	BOLT	RYG500910 BOLT Bolt And Washer, Hexagonal Head, M6 x 35MM	-	2	Enquire
HN1	RYH500390	NUT AND WASHER - HEX.	RYH500390 NUT AND WASHER - HEX. M10, Nut And Washer	-	2	Enquire
2B176A	LR138648	GROMMET - WIPER	LR138648 GROMMET - WIPER	-	1	Enquire
2B176B	LR138649	GROMMET - WIPER	LR138649 GROMMET - WIPER LHD / RH	-	1	Enquire
2B176B	LR138650	GROMMET - WIPER	LR138650 GROMMET - WIPER LHD / LH	-	1	Enquire
2B176B	LR138651	GROMMET - WIPER	LR138651 GROMMET - WIPER RHD / RH	-	1	Enquire
2B176B	LR138652	GROMMET - WIPER	LR138652 GROMMET - WIPER RHD / LH	-	1	Enquire
17C419	LR132119	ARM - WIPER	LR132119 ARM - WIPER Less Heated Washer Jet, RHD / RH / To: L2028996	-	1	Enquire
17C419	LR132123	ARM - WIPER	LR132123 ARM - WIPER Less Heated Washer Jet, RHD / LH / To: L2028996	-	1	Enquire
17C419	LR132124	ARM - WIPER	LR132124 ARM - WIPER RHD, With Heated Washer Jet / RH / To: L2029000	-	1	Enquire
17C419	LR132125	ARM - WIPER	LR132125 ARM - WIPER RHD, With Heated Washer Jet / LH / To: L2029000	-	1	Enquire
17C419	LR132130	ARM - WIPER	LR132130 ARM - WIPER LHD, Less Heated Washer Jet / LH / To: L2028898	-	1	Enquire
17C419	LR132128	ARM - WIPER	LR132128 ARM - WIPER LHD, Less Heated Washer Jet / RH / To: L2028898	-	1	Enquire
17C419	LR132127	ARM - WIPER	LR132127 ARM - WIPER LHD, With Heated Washer Jet / LH / To: L2028930	-	1	Enquire
17C419	LR132126	ARM - WIPER	LR132126 ARM - WIPER LHD, With Heated Washer Jet / RH / To: L2028930	-	1	Enquire
17C419	LR161910	ARM - WIPER	LR161910 ARM - WIPER LHD, Less Heated Washer Jet / LH / From: L2028899	-	1	Enquire
17C419	LR161911	ARM - WIPER	LR161911 ARM - WIPER LHD, Less Heated Washer Jet / RH / From: L2028899	-	1	Enquire
17C419	LR161914	ARM - WIPER	LR161914 ARM - WIPER LHD, With Heated Washer Jet / RH / From: L2028931	-	1	Enquire
17C419	LR161904	ARM - WIPER	LR161904 ARM - WIPER Less Heated Washer Jet, RHD / RH / From: L2028997	-	1	Enquire
17C419	LR161908	ARM - WIPER	LR161908 ARM - WIPER RHD, With Heated Washer Jet / RH / From: L2029001	-	1	Enquire
17C419	LR161909	ARM - WIPER	LR161909 ARM - WIPER RHD, With Heated Washer Jet / LH / From: L2029001	-	1	Enquire
17C419	LR161913	ARM - WIPER	LR161913 ARM - WIPER LHD, With Heated Washer Jet / LH / From: L2028931	-	1	Enquire
17C419	LR161906	ARM - WIPER	LR161906 ARM - WIPER Less Heated Washer Jet, RHD / LH / From: L2028997	-	1	Enquire
17C526	LR000085	CAP	LR000085 CAP To: L2022253	-	2	Enquire
17C526	LR139961	CAP - WIPER ARM	LR139961 CAP - WIPER ARM From: L2022254	-	2	Enquire
1174	LR132116	WIPER MOTOR AND MECHANISM	LR132116 WIPER MOTOR AND MECHANISM LHD / To: L2022253	-	1	Enquire
1174	LR132117	WIPER MOTOR AND MECHANISM	LR132117 WIPER MOTOR AND MECHANISM RHD / To: L2022253	-	1	Enquire
1174	LR146339	WIPER MOTOR AND MECHANISM	LR146339 WIPER MOTOR AND MECHANISM LHD / From: L2022254 / To: L2028930	-	1	Enquire
1174	LR146338	WIPER MOTOR AND MECHANISM	LR146338 WIPER MOTOR AND MECHANISM RHD / From: L2022254 / To: L2028996	-	1	Enquire
1174	LR147368	WIPER MOTOR AND MECHANISM	LR147368 WIPER MOTOR AND MECHANISM LHD / From: L2028931 / To: N2091504	-	1	Enquire
1174	LR147367	WIPER MOTOR AND MECHANISM	LR147367 WIPER MOTOR AND MECHANISM RHD / From: L2028997 / To: N2092421	-	1	Enquire
1174	LR167161	WIPER MOTOR AND MECHANISM	LR167161 WIPER MOTOR AND MECHANISM LHD / From: N2091505	-	1	Enquire
1174	LR167160	WIPER MOTOR AND MECHANISM	LR167160 WIPER MOTOR AND MECHANISM RHD / From: N2092422	-	1	Enquire
17528	LR132122	BLADE - WIPER	LR132122 BLADE - WIPER RHD / RH/LH / To: L2028996	-	2	Enquire
17528	LR132132	BLADE - WIPER	LR132132 BLADE - WIPER LHD / RH/LH / To: L2028898	-	2	Enquire
17528	LR161915	BLADE - WIPER	LR161915 BLADE - WIPER RHD / RH/LH / From: L2028997	-	2	Enquire
17528	LR162053	BLADE - WIPER	LR162053 BLADE - WIPER LHD / RH/LH / From: L2028899	-	2	Enquire
