Front Panels, Aprons & Side Members (Reinforcement - Member, Front End) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6] - Front Panels, Aprons & Side Members (Reinforcement - Member, Front End)

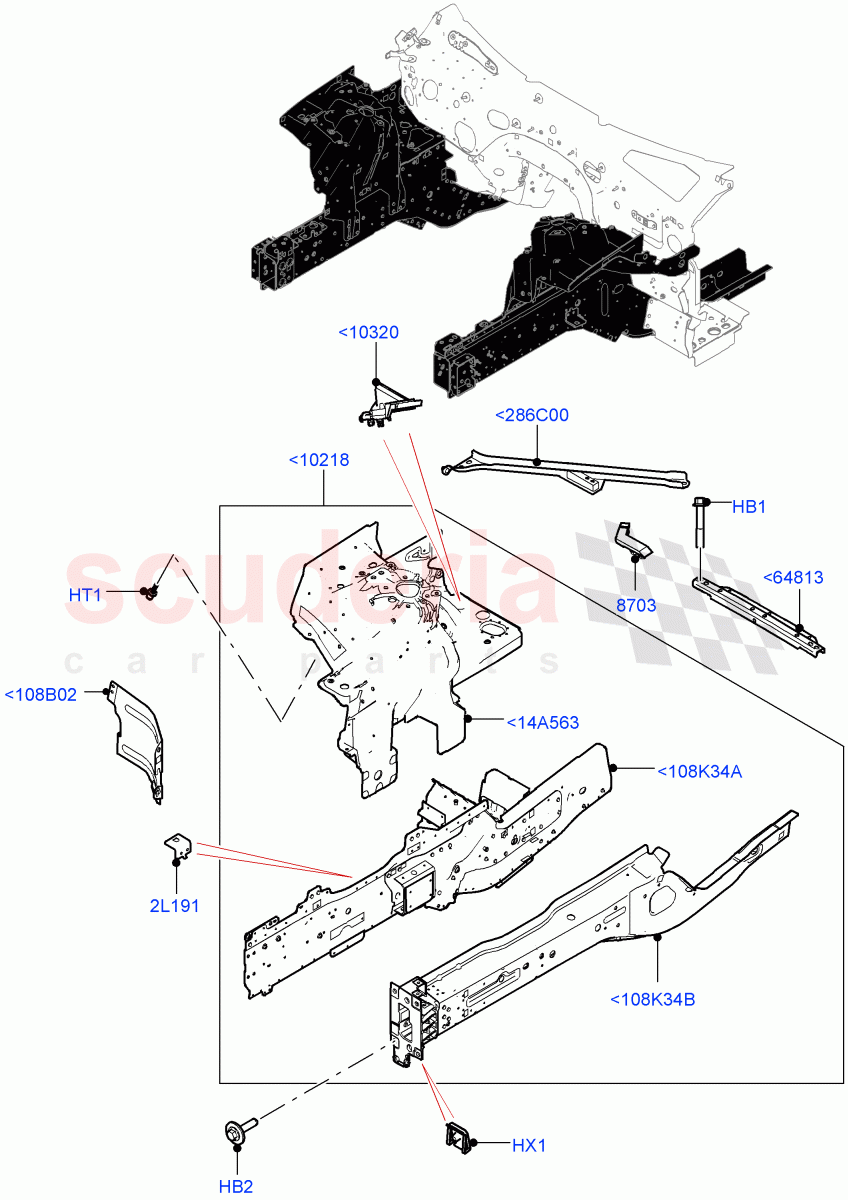

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FB108106	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034249	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033007	STUD - RIVET - FRONT END	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYH500100	NUT - SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139085	GAITER - SEAT BUCKLE	Enquire	To Order
	LR139086	GAITER - SEAT BUCKLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117032	BRACKET - BRAKE HOSE SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129010	MEMBER - SIDE	Enquire	To Order
	LR129016	MEMBER - SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139463	SEAL - COVER	Enquire	To Order
	LR143607	SEAL - COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131976	BRACE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131696	REINFORCEMENT - "B" PILLAR	Enquire	To Order
	LR131697	REINFORCEMENT - "B" PILLAR	Enquire	To Order
	LR144032	REINFORCEMENT - "B" PILLAR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR133451	HOUSING - FRONT SUSPENSION	Enquire	To Order
	LR133450	HOUSING - FRONT SUSPENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133091	STRUT - SUSPENSION	Enquire	To Order
	LR133092	STRUT - SUSPENSION	Enquire	To Order
	LR174411	Strut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129018	REINFORCEMENT - MEMBER - SIDE	Enquire	To Order
	LR129019	REINFORCEMENT - MEMBER - SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129025	REINFORCEMENT - MEMBER - SIDE	Enquire	To Order
	LR129027	REINFORCEMENT - MEMBER - SIDE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<14A563	LR133451	HOUSING - FRONT SUSPENSION	LR133451 HOUSING - FRONT SUSPENSION LH, Category A	-	1	Enquire
<14A563	LR133450	HOUSING - FRONT SUSPENSION	LR133450 HOUSING - FRONT SUSPENSION RH, Category A, VIN Stamped	-	1	Enquire
<108B02	LR131696	REINFORCEMENT - "B" PILLAR	LR131696 REINFORCEMENT - "B" PILLAR RH / To: L2010672	-	1	Enquire
<108B02	LR131697	REINFORCEMENT - "B" PILLAR	LR131697 REINFORCEMENT - "B" PILLAR LH / To: L2010672	-	1	Enquire
<108B02	LR144032	REINFORCEMENT - "B" PILLAR	LR144032 REINFORCEMENT - "B" PILLAR RH / From: L2010673	-	1	Enquire
<108B02	LR144036	REINFORCEMENT - "B" PILLAR	LR144036 REINFORCEMENT - "B" PILLAR LH / From: L2010673	-	1	Enquire
<108K34A	LR129018	REINFORCEMENT - MEMBER - SIDE	LR129018 REINFORCEMENT - MEMBER - SIDE RH, Category A, Outer	-	1	Enquire
<108K34A	LR129019	REINFORCEMENT - MEMBER - SIDE	LR129019 REINFORCEMENT - MEMBER - SIDE LH, Category A, Outer	-	1	Enquire
<108K34B	LR129025	REINFORCEMENT - MEMBER - SIDE	LR129025 REINFORCEMENT - MEMBER - SIDE RH, Category A, Inner	-	1	Enquire
<108K34B	LR129027	REINFORCEMENT - MEMBER - SIDE	LR129027 REINFORCEMENT - MEMBER - SIDE LH, Category A, Inner	-	1	Enquire
<286C00	LR133091	STRUT - SUSPENSION	LR133091 STRUT - SUSPENSION RH	-	1	Enquire
<286C00	LR133092	STRUT - SUSPENSION	LR133092 STRUT - SUSPENSION LH / To: N2999999	-	1	Enquire
<286C00	LR174411	Strut	LR174411 Strut LH / From: P2000001	-	1	Enquire
<10218	LR129010	MEMBER - SIDE	LR129010 MEMBER - SIDE RH, Category A, VIN Stamped	-	1	Enquire
<10218	LR129016	MEMBER - SIDE	LR129016 MEMBER - SIDE LH, Category A	-	1	Enquire
<10320	LR139463	SEAL - COVER	LR139463 SEAL - COVER LH, Seal / To: L2018628	-	1	Enquire
<10320	LR143607	SEAL - COVER	LR143607 SEAL - COVER LH, Seal / From: L2018629	-	1	Enquire
<64813	LR131976	BRACE	LR131976 BRACE	-	1	Enquire
HB1	FB108106	BOLT	FB108106 BOLT Hexagonal Head, M8 x 50MM	-	4	Enquire
HB2	LR034249	BOLT AND WASHER - HEX.HEAD	LR034249 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M10 x 37MM	-	8	Enquire
HT1	LR033007	STUD - RIVET - FRONT END	LR033007 STUD - RIVET - FRONT END M6 x 15MM	-	4	Enquire
HX1	KYH500100	NUT - SPRING	KYH500100 NUT - SPRING M10, Nut "U" Spring	-	8	Enquire
2L191	LR117032	BRACKET - BRAKE HOSE SUPPORT	LR117032 BRACKET - BRAKE HOSE SUPPORT Bracket, Brake Hose, Outer, RH/LH	-	2	Enquire
8703	LR139085	GAITER - SEAT BUCKLE	LR139085 GAITER - SEAT BUCKLE RH	-	1	Enquire
8703	LR139086	GAITER - SEAT BUCKLE	LR139086 GAITER - SEAT BUCKLE LH	-	1	Enquire
