Find Your Part

View All

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR125667	CLIP - TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095783	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500810	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074074	OIL SPILL GAITER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121255	MANIFOLD - INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091766	GASKET - INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129538	COVER - ENGINE TOP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121740	STUD - BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074085	BOLT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139515	INSULATOR - CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074073	GASKET - THROTTLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122989	SENSOR - AIR TEMPERATURE & PRESSURE	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR125667	CLIP - TRIM	LR125667 CLIP - TRIM 5.8 X 4.5-8, Insulator	-	2	Enquire
HR1	LR095783	O-RING	LR095783 O-RING 7.5MM, MAP Sensor	-	1	Enquire
HS1	RYP500810	SCREW	RYP500810 SCREW Hexagonal Head, M5 x 20MM, MAP Sensor	-	1	Enquire
6A949	LR129538	COVER - ENGINE TOP	LR129538 COVER - ENGINE TOP Engine	-	1	Enquire
6A957	LR121740	STUD - BALL	LR121740 STUD - BALL Ball Stud, Engine Cover	-	1	Enquire
6N028	LR074085	BOLT - SPECIAL	LR074085 BOLT - SPECIAL M6 x 42MM, Manifold To Cylinder Head	-	9	Enquire
6N041	LR139515	INSULATOR - CYLINDER HEAD	LR139515 INSULATOR - CYLINDER HEAD LH Side	-	1	Enquire
9E931	LR074073	GASKET - THROTTLE	LR074073 GASKET - THROTTLE Throttle Body To Intake	-	1	Enquire
12A697	LR122989	SENSOR - AIR TEMPERATURE & PRESSURE	LR122989 SENSOR - AIR TEMPERATURE & PRESSURE Pressure	-	1	Enquire
8703	LR074074	OIL SPILL GAITER	LR074074 OIL SPILL GAITER Oil Spill	-	1	Enquire
9424	LR121255	MANIFOLD - INLET	LR121255 MANIFOLD - INLET	-	1	Enquire
9450	LR091766	GASKET - INTAKE MANIFOLD	LR091766 GASKET - INTAKE MANIFOLD Inlet Manifold	-	6	Enquire

Haven't found what you're looking for?

View Cart / Checkout

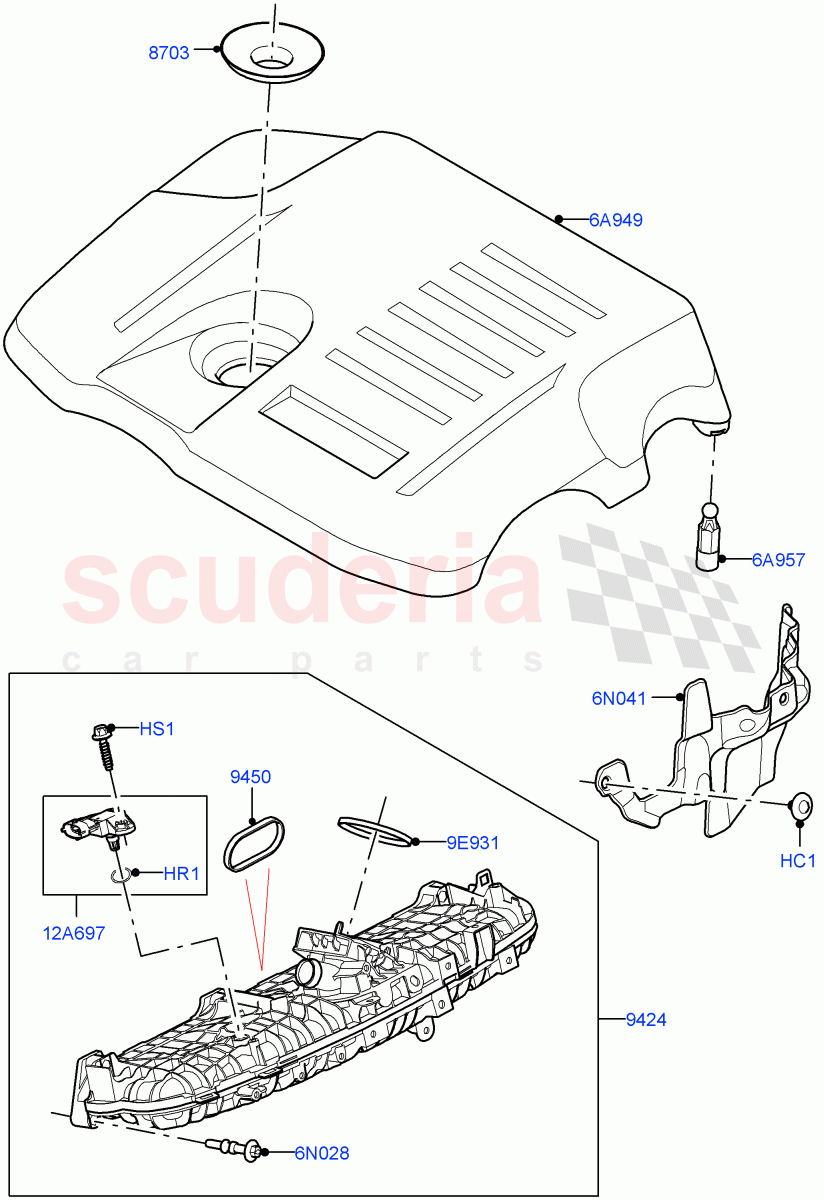

Inlet Manifold (Nitra Plant Build) (3.0L Aj20P6 Petrol High) ((V) Froml2000001)

Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6]
