Cylinder Head (Nitra Plant Build) (3.0L Aj20P6 Petrol High) ((V) Froml2000001)

Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6] - Cylinder Head (Nitra Plant Build) (3.0L AJ20P6 Petrol High) ((V) FROML2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR105438 BOLT - HEX.HEAD $2.38 To Order
Photo Part No Description Price (each) Stock
LR170956 Plug $0.76 To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.54 IN STOCK
Photo Part No Description Price (each) Stock
LR121308 CYLINDER HEAD $3,120.08 To Order
Photo Part No Description Price (each) Stock
LR121241 GASKET-CYLINDER HEAD $218.55 To Order
Photo Part No Description Price (each) Stock
LR091487 BOLT - HEX.HEAD $11.41 To Order
Photo Part No Description Price (each) Stock
LR121800 TENSIONER - TIMING CHAIN $139.47 IN STOCK
Photo Part No Description Price (each) Stock
LR073777 TAPPET - VALVE $48.38 To Order
Photo Part No Description Price (each) Stock
LR091763 VALVE - EXHAUST $22.42 To Order
LR134473 VALVE - EXHAUST $26.62 To Order
Photo Part No Description Price (each) Stock
LR121763 VALVE - INLET $27.81 To Order
LR146779 VALVE - INLET $27.58 To Order
Photo Part No Description Price (each) Stock
LR091753 RETAINER - VALVE SPRING - UPPER $16.25 To Order
Photo Part No Description Price (each) Stock
LR073774 COLLET - VALVE SPRING RETAINER $3.16 To Order
Photo Part No Description Price (each) Stock
LR091754 ARM - VALVE ROCKER $44.07 To Order
LR163044 ARM - VALVE ROCKER $41.55 To Order
Photo Part No Description Price (each) Stock
LR116489 SEAL - VALVE STEM $7.62 IN STOCK
Photo Part No Description Price (each) Stock
LR121406 HOSE - OIL $59.17 To Order
Photo Part No Description Price (each) Stock
LR121400 HOSE - COOLANT BLEED $62.43 To Order
Photo Part No Description Price (each) Stock
LR121813 SPRING - VALVE $56.69 To Order
LR147017 SPRING - VALVE $12.25 To Order
Photo Part No Description Price (each) Stock
LR121814 SPRING - VALVE $56.69 To Order
LR147016 SPRING - VALVE $12.14 To Order
Photo Part No Description Price (each) Stock
LR077674 VALVE - CHECK $9.16 To Order
Photo Part No Description Price (each) Stock
LR073651 DOWEL - PIN $3.66 To Order
Photo Part No Description Price (each) Stock
LR115083 SENSOR - CYLINDER HEAD TEMPERATURE $47.85 To Order
LR155114 SENSOR - CYLINDER HEAD TEMPERATURE $60.60 To Order
Photo Part No Description Price (each) Stock
LR121756 HOSE - WATER $120.45 To Order
LR150613 HOSE - WATER $132.87 To Order
Photo Part No Description Price (each) Stock
LR073685 TUBE - DRAIN $23.53 To Order
View All

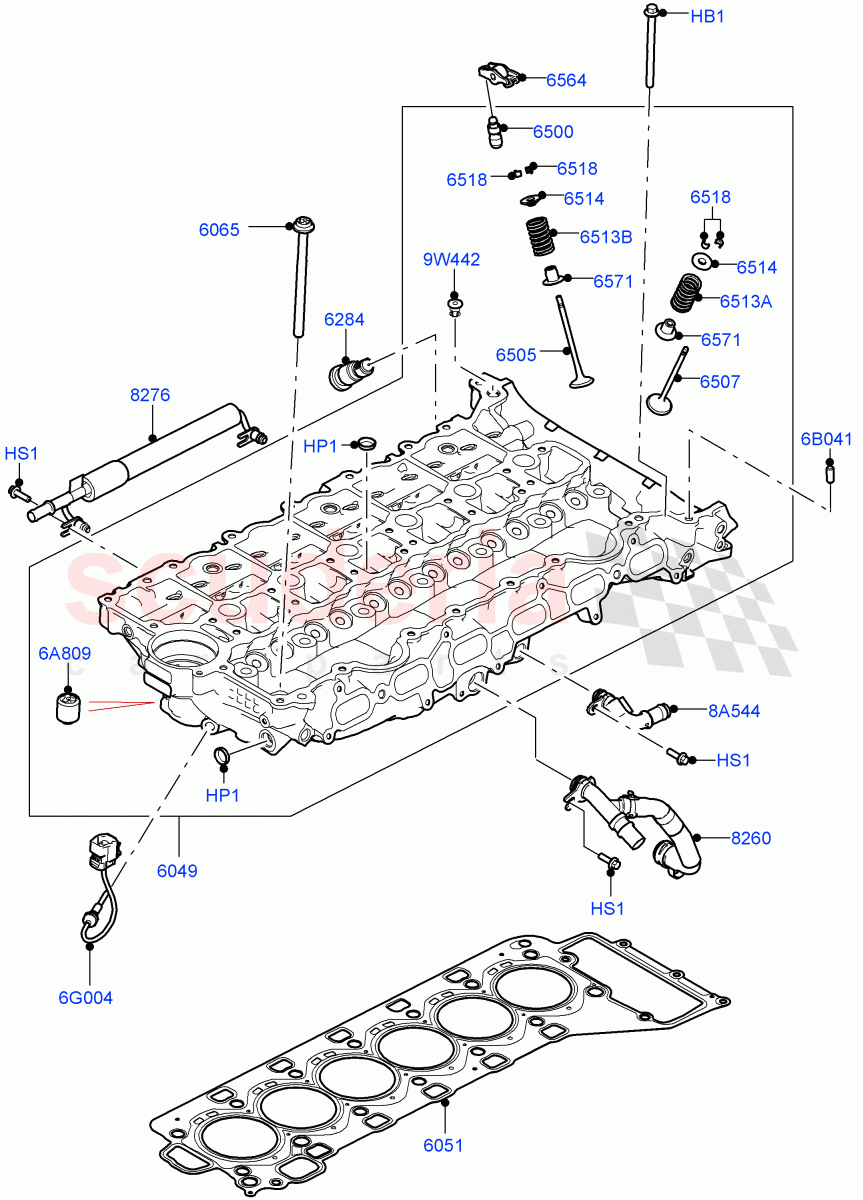

Cylinder Head (Nitra Plant Build) (3.0L AJ20P6 Petrol High) ((V) FROML2000001) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR105438
BOLT - HEX.HEAD
M8 X 75MM 		$2.38 2
HP1 LR170956
Plug 		$0.76 7
HS1 LR073655
SCREW
Hexagonal Head, M6 X 20MM
IN STOCK 		$1.54 4
6A809 LR077674
VALVE - CHECK 		$9.16 1
6B041 LR073651
DOWEL - PIN
8 x 19MM 		$3.66 2
6G004 LR115083
SENSOR - CYLINDER HEAD TEMPERATURE
Temperature / To: M2047140 		$47.85 1
6G004 LR155114
SENSOR - CYLINDER HEAD TEMPERATURE
Temperature / From: M2047141 		$60.60 1
8A544 LR121756
HOSE - WATER
Water Charge Air Cooler / To: M2035641 		$120.45 1
8A544 LR150613
HOSE - WATER
Water Charge Air Cooler / From: M2035642 		$132.87 1
9W442 LR073685
TUBE - DRAIN
Drain 		$23.53 1
6049 LR121308
CYLINDER HEAD
With Valves 		$3,120.08 1
6051 LR121241
GASKET-CYLINDER HEAD 		$218.55 1
6065 LR091487
BOLT - HEX.HEAD 		$11.41 14
6284 LR121800
TENSIONER - TIMING CHAIN
Secondary
IN STOCK 		$139.47 1
6500 LR073777
TAPPET - VALVE 		$48.38 12
6505 LR091763
VALVE - EXHAUST
To: M2049565 		$22.42 12
6505 LR134473
VALVE - EXHAUST
From: M2049566 		$26.62 12
6507 LR121763
VALVE - INLET
To: M2049565 		$27.81 12
6507 LR146779
VALVE - INLET
From: M2049566 		$27.58 12
6513A LR121813
SPRING - VALVE
Intake Side / To: L2021263 		$56.69 12
6513A LR147017
SPRING - VALVE
Intake Side / From: L2021264 		$12.25 12
6513B LR121814
SPRING - VALVE
EXHAUST SIDE / To: L2021263 		$56.69 12
6513B LR147016
SPRING - VALVE
EXHAUST SIDE / From: L2021264 		$12.14 12
6514 LR091753
RETAINER - VALVE SPRING - UPPER 		$16.25 24
6518 LR073774
COLLET - VALVE SPRING RETAINER 		$3.16 48
6564 LR091754
ARM - VALVE ROCKER
To: N2081929 		$44.07 12
6564 LR163044
ARM - VALVE ROCKER
From: N2081930 		$41.55 12
6571 LR116489
SEAL - VALVE STEM
IN STOCK 		$7.62 24
8260 LR121406
HOSE - OIL
To Oil Cooler 		$59.17 1
8276 LR121400
HOSE - COOLANT BLEED
RH Side 		$62.43 1
