Electronic Damper Control (With Continuous Variable Damping)

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] - Electronic Damper Control (With Continuous Variable Damping)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
XYG500160 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
RYH500420 NUT AND WASHER - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
FN106042 NUT Enquire To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR084257 SENSOR - ACCELERATION Enquire To Order
Photo Part No Description Price (each) Stock
LR044865 BRACKET - CONTROL MODULE Enquire To Order
Photo Part No Description Price (each) Stock
LR129717 MODULE - AIR SUSPENSION CONTROL Enquire To Order
LR140068 MODULE - AIR SUSPENSION CONTROL Enquire To Order
LR149618 MODULE - AIR SUSPENSION CONTROL Enquire To Order
View All

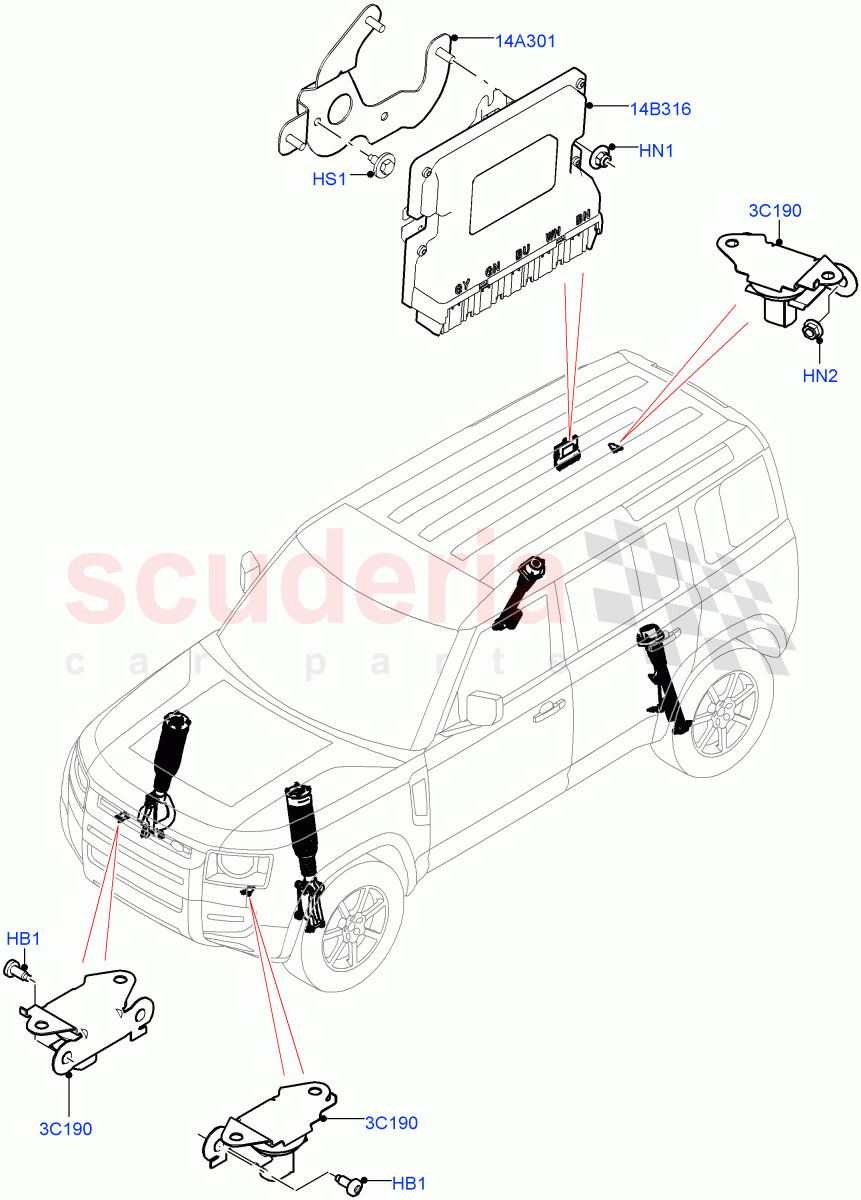

Electronic Damper Control (With Continuous Variable Damping) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 XYG500160
BOLT
M6 x 12MM, Torx 		- 4 Enquire
HN1 RYH500420
NUT AND WASHER - HEX.
Hexagonal Head, M6, Nut And Washer 		- 3 Enquire
HN2 FN106042
NUT
Hexagonal Head, M6 		- 2 Enquire
HS1 FS106166
SCREW
Short Wheelbase / Hexagonal Head, M6 X 16MM 		- 2 Enquire
3C190 LR084257
SENSOR - ACCELERATION
Accelerometer, Front / Rear 		- 3 Enquire
14A301 LR044865
BRACKET - CONTROL MODULE
Standard Wheelbase / Control Module 		- 1 Enquire
14B316 LR129717
MODULE - AIR SUSPENSION CONTROL
Air Suspension Module / To: L2000583 		- 1 Enquire
14B316 LR140068
MODULE - AIR SUSPENSION CONTROL
Air Suspension Module / From: L2000584 / To: L2999999 		- 1 Enquire
14B316 LR149618
MODULE - AIR SUSPENSION CONTROL
From: M2000001 		- 1 Enquire
