Rear Knuckle And Hub of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6]

View All

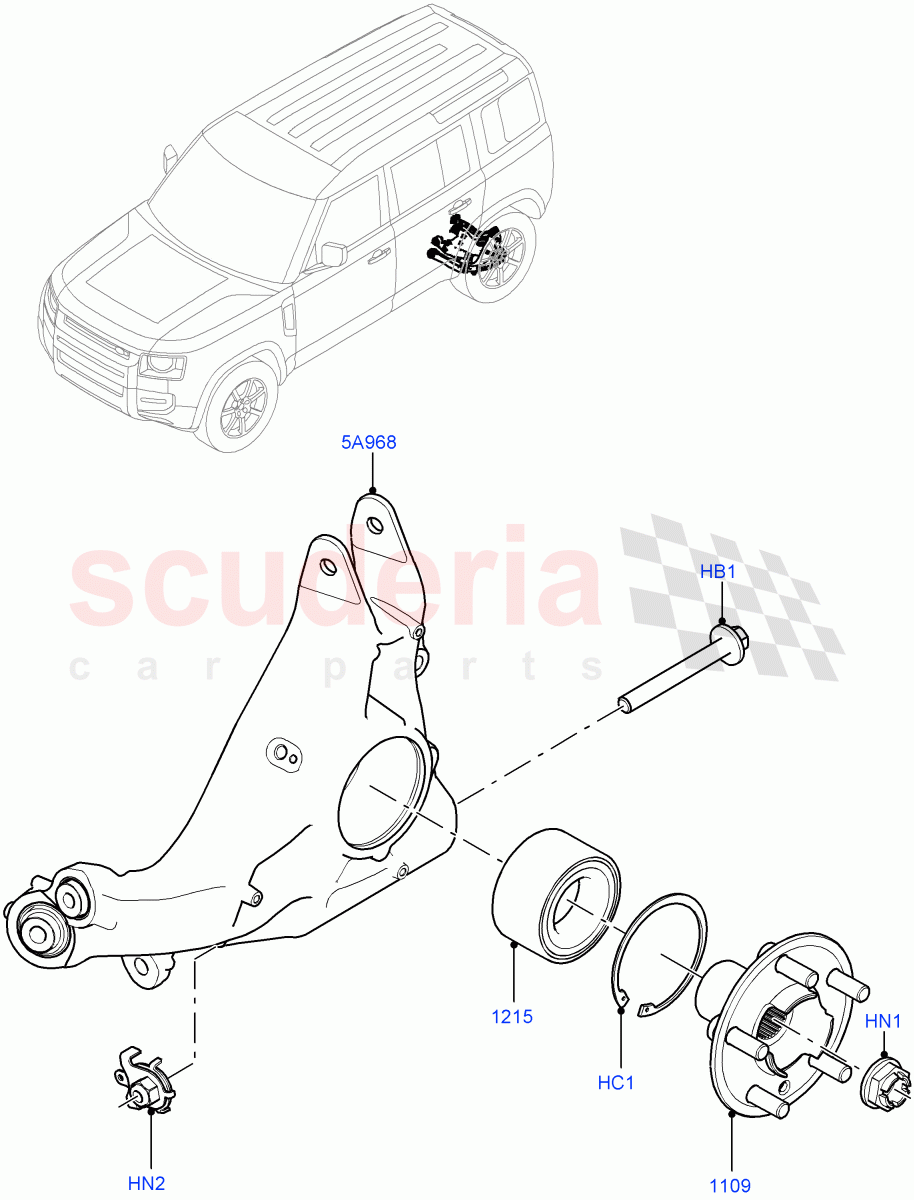

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] - Rear Knuckle And Hub

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR038196	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163796	CIRCLIP	Enquire	To Order
	LR038382	CIRCLIP	Enquire	To Order
	LR038382	CIRCLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024151	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034277	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR130577	HUB - WHEEL	Enquire	To Order
	LR081538	HUB - WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122585	BEARING - WHEEL HUB	Enquire	To Order
	LR163820	BEARING - WHEEL HUB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142087	KNUCKLE - REAR WHEEL	Enquire	To Order
	LR142086	KNUCKLE - REAR WHEEL	Enquire	To Order
	LR168185	KNUCKLE - REAR WHEEL	Enquire	To Order

...and 3 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR038196	BOLT	LR038196 BOLT Hexagonal Head, M14 X 125	-	2	Enquire
HC1	LR163796	CIRCLIP	LR163796 CIRCLIP Long Wheelbase /	-	2	Enquire
HC1	LR038382	CIRCLIP	LR038382 CIRCLIP 95MM, Retaining Ring / To: N2999999	-	2	Enquire
HC1	LR038382	CIRCLIP	LR038382 CIRCLIP Standard Wheelbase / 95MM, Retaining Ring / From: P2000001	-	2	Enquire
HN1	LR024151	NUT AND WASHER - HEX.	LR024151 NUT AND WASHER - HEX. M24X2.0	-	2	Enquire
HN2	LR034277	NUT	LR034277 NUT M14, Nut And Washer	-	2	Enquire
5A968	LR142087	KNUCKLE - REAR WHEEL	LR142087 KNUCKLE - REAR WHEEL RH / To: N2999999	-	1	Enquire
5A968	LR142086	KNUCKLE - REAR WHEEL	LR142086 KNUCKLE - REAR WHEEL LH / To: N2999999	-	1	Enquire
5A968	LR168185	KNUCKLE - REAR WHEEL	LR168185 KNUCKLE - REAR WHEEL Short Wheelbase / LH / From: P2000001	-	1	Enquire
5A968	LR168184	KNUCKLE - REAR WHEEL	LR168184 KNUCKLE - REAR WHEEL Short Wheelbase / RH / From: P2000001	-	1	Enquire
5A968	LR168187	KNUCKLE - REAR WHEEL	LR168187 KNUCKLE - REAR WHEEL Long Wheelbase / LH / From: P2000001	-	1	Enquire
5A968	LR168186	KNUCKLE - REAR WHEEL	LR168186 KNUCKLE - REAR WHEEL Long Wheelbase / RH / From: P2000001	-	1	Enquire
1109	LR130577	HUB - WHEEL	LR130577 HUB - WHEEL Disc And Caliper Size-Frt 19/RR 19 / RH/LH	-	2	Enquire
1109	LR081538	HUB - WHEEL	LR081538 HUB - WHEEL Disc And Caliper Size-Frt 20/RR 20 / RH/LH	-	2	Enquire
1215	LR122585	BEARING - WHEEL HUB	LR122585 BEARING - WHEEL HUB Standard Wheelbase / RH/LH	-	2	Enquire
1215	LR163820	BEARING - WHEEL HUB	LR163820 BEARING - WHEEL HUB Long Wheelbase / RH/LH / From: P2000001	-	2	Enquire
