Name: Rear Exhaust System (Nitra Plant Build) (3.0L AJ20D6 Diesel High, ULEV 125 Emission, EU6D - Final (Diesel) Emission) ((V) FROMM2000001)
Rating: 4.2 (1 reviews)

Rear Exhaust System (Nitra Plant Build) (3.0L AJ20D6 Diesel High, ULEV 125 Emission, EU6D - Final (Diesel) Emission) ((V) FROMM2000001) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] - Rear Exhaust System (Nitra Plant Build) (3.0L AJ20D6 Diesel High, ULEV 125 Emission, EU6D - Final...

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR141903	BOLT	$2.32	To Order

Photo	Part No	Description	Price (each)	Stock
	WYH500060	NUT	$3.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137014	BRACKET - EXHAUST PIPE MOUNTING	$32.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132502	BRACKET - EXHAUST PIPE MOUNTING	$39.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR143250	PIPE - EXHAUST	$829.66	To Order
	LR143251	PIPE - EXHAUST	$854.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152886	INSULATOR - RUBBER	$63.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR143255	MUFFLER AND PIPE - REAR	$899.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141782	ACTUATOR - ELECTRONIC EXHAUST VALVE	$156.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR088315	CLAMP - EXHAUST	$63.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036441	CLAMP - EXHAUST	$29.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100224	INSULATOR - RUBBER	$31.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR104929	INSULATOR - RUBBER	$8.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137024	BRACKET - REAR MUFFLER	$49.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082700	BRACKET - EXHAUST PIPE MOUNTING	$32.38	To Order

View All

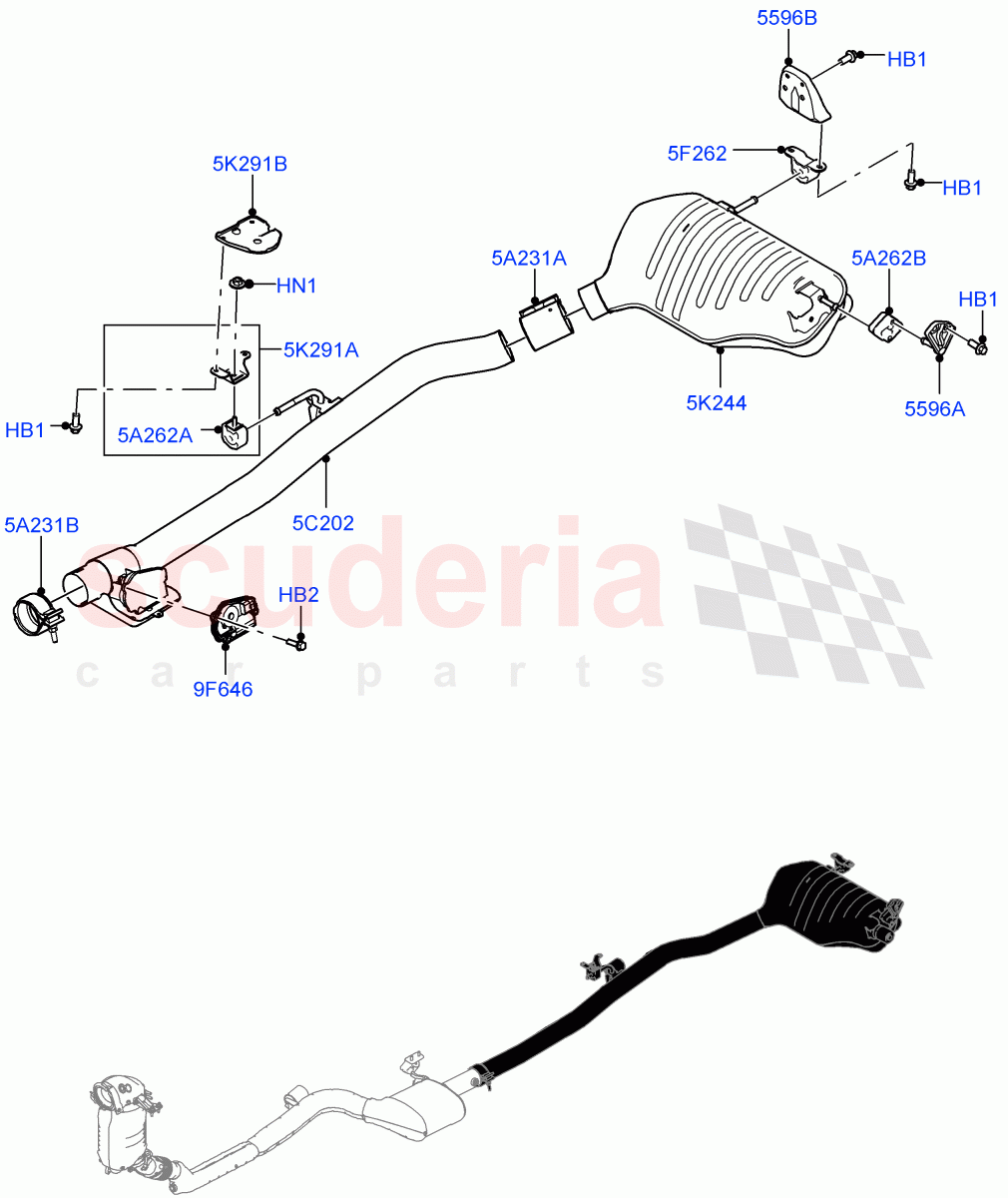

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM / From: M2000001 IN STOCK	$2.23	10
HB2	LR141903	BOLT	LR141903 BOLT M6 X 20MM / From: M2000001	$2.32	3
HN1	WYH500060	NUT	WYH500060 NUT M8 / From: M2000001	$3.77	1
5A231A	LR088315	CLAMP - EXHAUST	LR088315 CLAMP - EXHAUST 70MM, Centre / From: M2000001	$63.77	1
5A231B	LR036441	CLAMP - EXHAUST	LR036441 CLAMP - EXHAUST 70MM, Front / From: M2000001	$29.81	1
5A262A	LR100224	INSULATOR - RUBBER	LR100224 INSULATOR - RUBBER Front / From: M2000001	$31.44	1
5A262B	LR104929	INSULATOR - RUBBER	LR104929 INSULATOR - RUBBER For Rear Muffler / From: M2000001	$8.97	1
5C202	LR143250	PIPE - EXHAUST	LR143250 PIPE - EXHAUST Short Wheelbase / From: M2000001	$829.66	1
5C202	LR143251	PIPE - EXHAUST	LR143251 PIPE - EXHAUST Standard Wheelbase / From: M2000001	$854.73	1
5F262	LR152886	INSULATOR - RUBBER	LR152886 INSULATOR - RUBBER For Rear Muffler / From: M2000001	$63.67	1
5K244	LR143255	MUFFLER AND PIPE - REAR	LR143255 MUFFLER AND PIPE - REAR From: M2000001	$899.20	1
5K291A	LR137024	BRACKET - REAR MUFFLER	LR137024 BRACKET - REAR MUFFLER Lower Front / From: M2000001	$49.03	1
5K291B	LR082700	BRACKET - EXHAUST PIPE MOUNTING	LR082700 BRACKET - EXHAUST PIPE MOUNTING Upper Front / From: M2000001	$32.38	1
9F646	LR141782	ACTUATOR - ELECTRONIC EXHAUST VALVE IN STOCK	LR141782 ACTUATOR - ELECTRONIC EXHAUST VALVE From: M2000001 IN STOCK	$156.25	1
5596A	LR137014	BRACKET - EXHAUST PIPE MOUNTING	LR137014 BRACKET - EXHAUST PIPE MOUNTING LH / From: M2000001	$32.38	1
5596B	LR132502	BRACKET - EXHAUST PIPE MOUNTING	LR132502 BRACKET - EXHAUST PIPE MOUNTING RH, For Rear Muffler / From: M2000001	$39.86	1
