Name: Rear Exhaust System (Nitra Plant Build) (3.0L AJ20D6 Diesel High, Euro Stage 4 Emissions, EU5 + SCR, Stage V Plus DPF, Proconve L6 Emissions) ((V) FROMM2000001)
Rating: 5.0 (1 reviews)

Rear Exhaust System (Nitra Plant Build) (3.0L AJ20D6 Diesel High, Euro Stage 4 Emissions, EU5 + SCR, Stage V Plus DPF, Proconve L6 Emissions) ((V) FROMM2000001) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] - Rear Exhaust System (Nitra Plant Build) (3.0L AJ20D6 Diesel High, Euro Stage 4 Emissions, EU5 +...

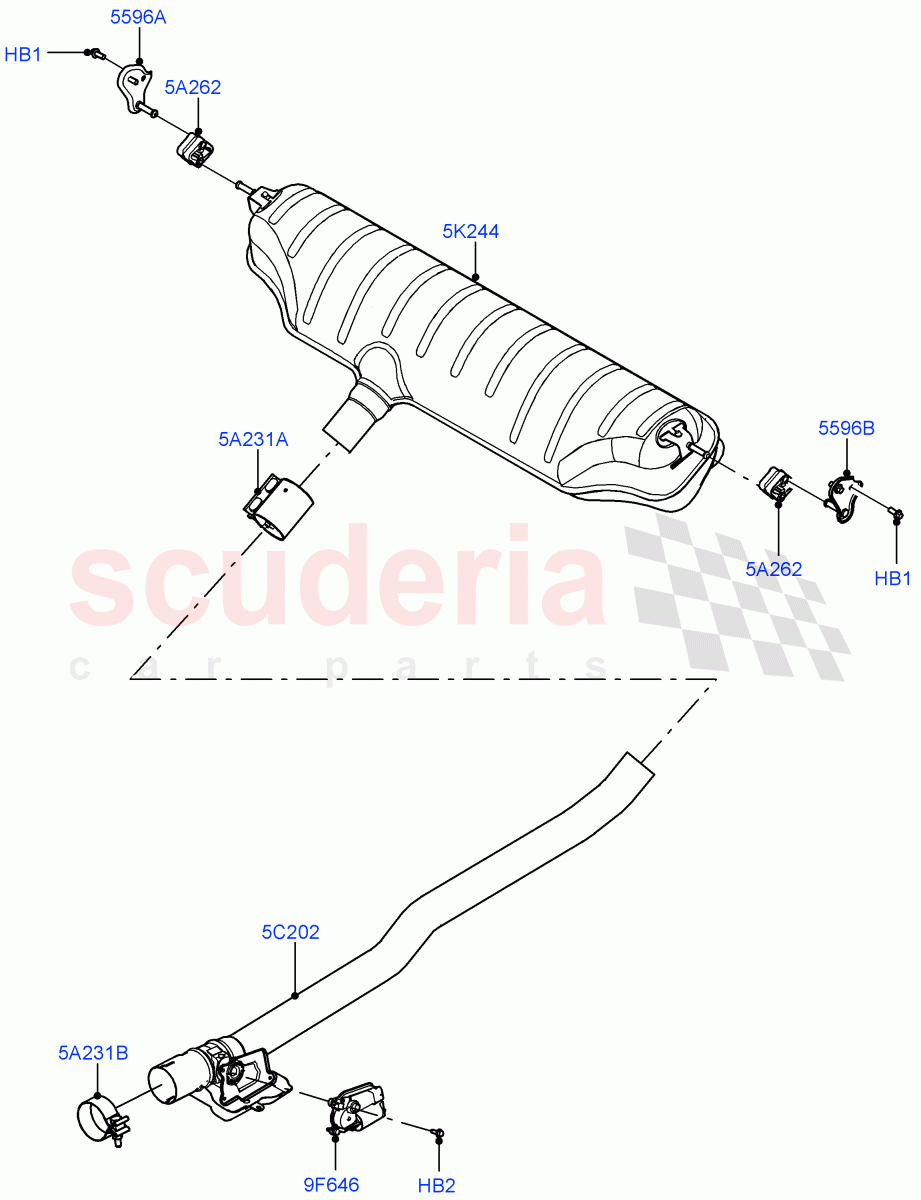

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR141903	BOLT	$2.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137013	BRACKET - EXHAUST PIPE MOUNTING	$32.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137014	BRACKET - EXHAUST PIPE MOUNTING	$32.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	$23.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR143252	PIPE - EXHAUST	$896.02	To Order
	LR143253	PIPE - EXHAUST	$897.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR143254	MUFFLER AND PIPE - REAR	$914.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141782	ACTUATOR - ELECTRONIC EXHAUST VALVE	$156.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR128613	CLAMP - EXHAUST	$84.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036441	CLAMP - EXHAUST	$29.81	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM / From: M2000001 IN STOCK	$2.23	4
HB2	LR141903	BOLT	LR141903 BOLT M6 X 20MM / From: M2000001	$2.32	3
5A231A	LR128613	CLAMP - EXHAUST	LR128613 CLAMP - EXHAUST 65MM, Centre / From: M2000001	$84.62	1
5A231B	LR036441	CLAMP - EXHAUST	LR036441 CLAMP - EXHAUST 70MM, Front / From: M2000001	$29.81	1
5A262	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER For Rear Muffler / From: M2000001	$23.23	2
5C202	LR143252	PIPE - EXHAUST	LR143252 PIPE - EXHAUST Short Wheelbase / From: M2000001	$896.02	1
5C202	LR143253	PIPE - EXHAUST	LR143253 PIPE - EXHAUST Standard Wheelbase / From: M2000001	$897.47	1
5K244	LR143254	MUFFLER AND PIPE - REAR	LR143254 MUFFLER AND PIPE - REAR From: M2000001	$914.85	1
9F646	LR141782	ACTUATOR - ELECTRONIC EXHAUST VALVE IN STOCK	LR141782 ACTUATOR - ELECTRONIC EXHAUST VALVE From: M2000001 IN STOCK	$156.25	1
5596A	LR137013	BRACKET - EXHAUST PIPE MOUNTING	LR137013 BRACKET - EXHAUST PIPE MOUNTING RH / From: M2000001	$32.38	1
5596B	LR137014	BRACKET - EXHAUST PIPE MOUNTING	LR137014 BRACKET - EXHAUST PIPE MOUNTING LH / From: M2000001	$32.38	1
