Front Brake Discs And Calipers (Disc And Caliper Size-Frt 19/RR 19) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Diesel]

View All

Land Rover Defender (2020+) [2.0 Turbo Diesel] - Front Brake Discs And Calipers (Disc And Caliper Size-Frt 19/RR 19)

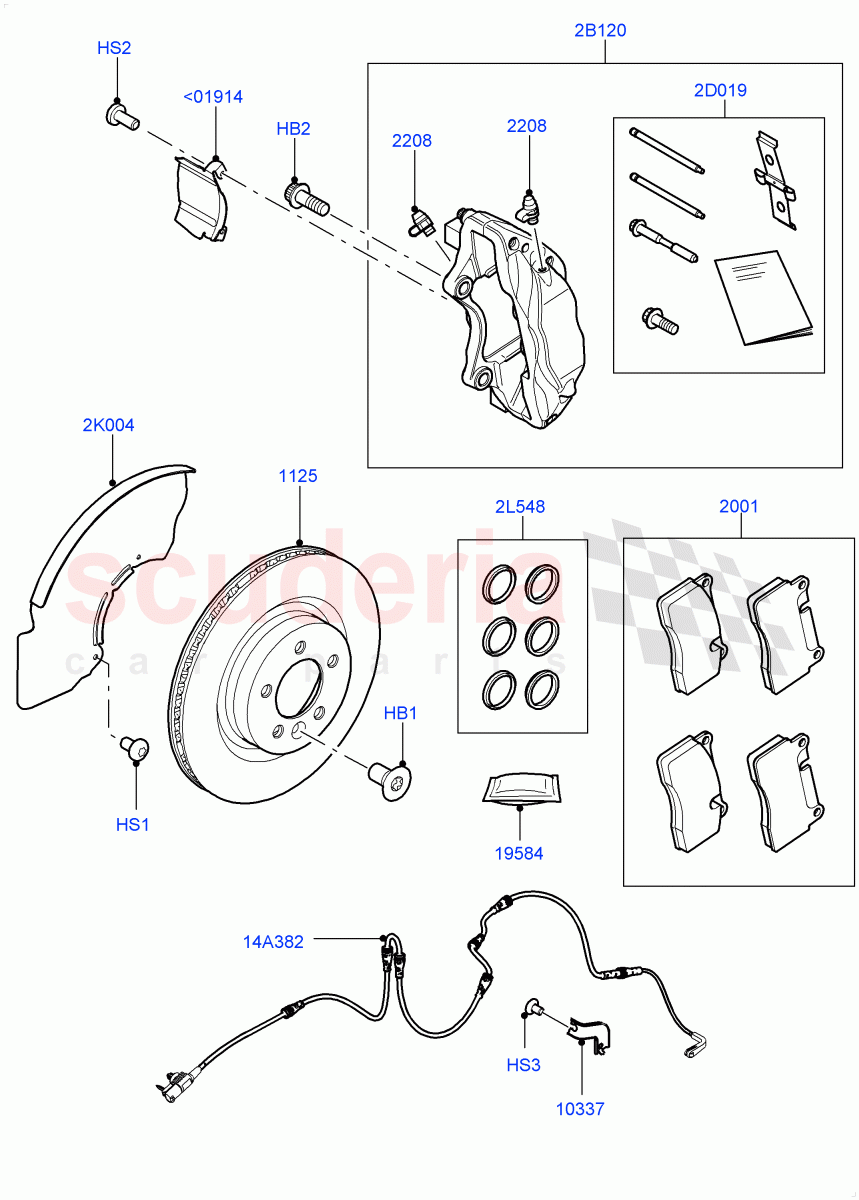

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR139520	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033274	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043873	SCREW - PAN - TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500920	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018509	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132809	DISC - BRAKE	Enquire	To Order
	LR161896	DISC - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110084	KIT - CALIPER BRAKE PAD	Enquire	To Order
	LR138646	KIT - CALIPER BRAKE PAD	Enquire	To Order
	LR149626	BRAKE PADS - LESS SPRINGS	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR039525	SCREW - BLEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR102045	BRACKET - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020053	GREASE - CHASSIS LUBRICATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138603	CALIPER - BRAKE - LESS PADS	Enquire	To Order
	LR138606	CALIPER - BRAKE - LESS PADS	Enquire	To Order
	LR138607	CALIPER - BRAKE - LESS PADS	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR110072	KIT - BRAKE CALIPER ATTACHMENT	Enquire	To Order
	LR149362	KIT - BRAKE CALIPER ATTACHMENT	Enquire	To Order
	LR156545	KIT - BRAKE CALIPER ATTACHMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132748	SHIELD - SPLASH	Enquire	To Order
	LR132749	SHIELD - SPLASH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110135	KIT - BOOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039165	DUCT - BRAKE CALIPER COOLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR098988	WIRE - BRAKE PAD WEAR WARNING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<01914	LR039165	DUCT - BRAKE CALIPER COOLING	LR039165 DUCT - BRAKE CALIPER COOLING Brake Caliper Cooling	-	2	Enquire
HB1	LR139520	BOLT	LR139520 BOLT M8 X 12, Torx	-	2	Enquire
HB2	LR033274	BOLT	LR033274 BOLT Hexagonal Head, M16 X 40	-	4	Enquire
HS1	LR043873	SCREW - PAN - TORX	LR043873 SCREW - PAN - TORX M6 X 16MM, Torx	-	4	Enquire
HS2	RYP500920	SCREW	RYP500920 SCREW M6 X 14MM, Torx	-	4	Enquire
HS3	LR018509	SCREW	LR018509 SCREW M6 X 10MM, Torx	-	1	Enquire
2B120	LR138603	CALIPER - BRAKE - LESS PADS	LR138603 CALIPER - BRAKE - LESS PADS With Non Painted Brake Calipers / RH / To: L2030999	-	1	Enquire
2B120	LR138606	CALIPER - BRAKE - LESS PADS	LR138606 CALIPER - BRAKE - LESS PADS With Non Painted Brake Calipers / LH / To: L2030999	-	1	Enquire
2B120	LR138607	CALIPER - BRAKE - LESS PADS	LR138607 CALIPER - BRAKE - LESS PADS Brake Calipers - Orange / LH / To: L2030999	-	1	Enquire
2B120	LR149370	CALIPER - BRAKE - LESS PADS	LR149370 CALIPER - BRAKE - LESS PADS With Non Painted Brake Calipers / LH / From: L2031000	-	1	Enquire
2B120	LR149367	CALIPER - BRAKE - LESS PADS	LR149367 CALIPER - BRAKE - LESS PADS With Non Painted Brake Calipers / RH / From: L2031000	-	1	Enquire
2B120	LR138604	CALIPER - BRAKE - LESS PADS	LR138604 CALIPER - BRAKE - LESS PADS Brake Calipers - Orange / RH / To: M2065456	-	1	Enquire
2B120	LR149802	CALIPER - BRAKE - LESS PADS	LR149802 CALIPER - BRAKE - LESS PADS Brake Calipers - Orange / LH / From: L2031000 / To: M2065456	-	1	Enquire
2B120	LR159357	CALIPER - BRAKE - LESS PADS	LR159357 CALIPER - BRAKE - LESS PADS Brake Calipers - Orange / RH / From: M2065457	-	1	Enquire
2B120	LR159359	CALIPER - BRAKE - LESS PADS	LR159359 CALIPER - BRAKE - LESS PADS Brake Calipers - Orange / LH / From: M2065457	-	1	Enquire
2D019	LR110072	KIT - BRAKE CALIPER ATTACHMENT	LR110072 KIT - BRAKE CALIPER ATTACHMENT Pad Clip And Retaining Pins / To: L2030999	-	2	Enquire
2D019	LR149362	KIT - BRAKE CALIPER ATTACHMENT	LR149362 KIT - BRAKE CALIPER ATTACHMENT Pad Clip And Retaining Pins / From: L2031000 / To: M2050952	-	2	Enquire
2D019	LR156545	KIT - BRAKE CALIPER ATTACHMENT	LR156545 KIT - BRAKE CALIPER ATTACHMENT Pad Clip And Retaining Pins / From: M2050953	-	2	Enquire
2K004	LR132748	SHIELD - SPLASH	LR132748 SHIELD - SPLASH RH	-	1	Enquire
2K004	LR132749	SHIELD - SPLASH	LR132749 SHIELD - SPLASH LH	-	1	Enquire
2L548	LR110135	KIT - BOOT	LR110135 KIT - BOOT Brake Caliper	-	2	Enquire
14A382	LR098988	WIRE - BRAKE PAD WEAR WARNING	LR098988 WIRE - BRAKE PAD WEAR WARNING	-	1	Enquire
1125	LR132809	DISC - BRAKE	LR132809 DISC - BRAKE 363MM, RH/LH / To: N2072238	-	2	Enquire
1125	LR161896	DISC - BRAKE	LR161896 DISC - BRAKE 363MM, RH/LH / From: N2072239	-	2	Enquire
2001	LR110084	KIT - CALIPER BRAKE PAD	LR110084 KIT - CALIPER BRAKE PAD Axle Set, Less Clips / To: L2999999	-	1	Enquire
2001	LR138646	KIT - CALIPER BRAKE PAD	LR138646 KIT - CALIPER BRAKE PAD Axle Set, Less Clips / From: M2000001 / To: M2051241	-	1	Enquire
2001	LR149626	BRAKE PADS - LESS SPRINGS	LR149626 BRAKE PADS - LESS SPRINGS Axle Set, Less Clips / From: M2051242 / To: M2065456	-	1	Enquire
2001	LR157174	BRAKE PADS - LESS SPRINGS	LR157174 BRAKE PADS - LESS SPRINGS Axle Set, Less Clips / From: M2065457	-	1	Enquire
2208	LR039525	SCREW - BLEED	LR039525 SCREW - BLEED	-	4	Enquire
10337	LR102045	BRACKET - WIRING	LR102045 BRACKET - WIRING	-	1	Enquire
19584	LR020053	GREASE - CHASSIS LUBRICATION	LR020053 GREASE - CHASSIS LUBRICATION	-	1	Enquire
