ABS Sensors (ABS/Speed Sensor) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Diesel]

View All

Land Rover Defender (2020+) [2.0 Turbo Diesel] - ABS Sensors (ABS/Speed Sensor)

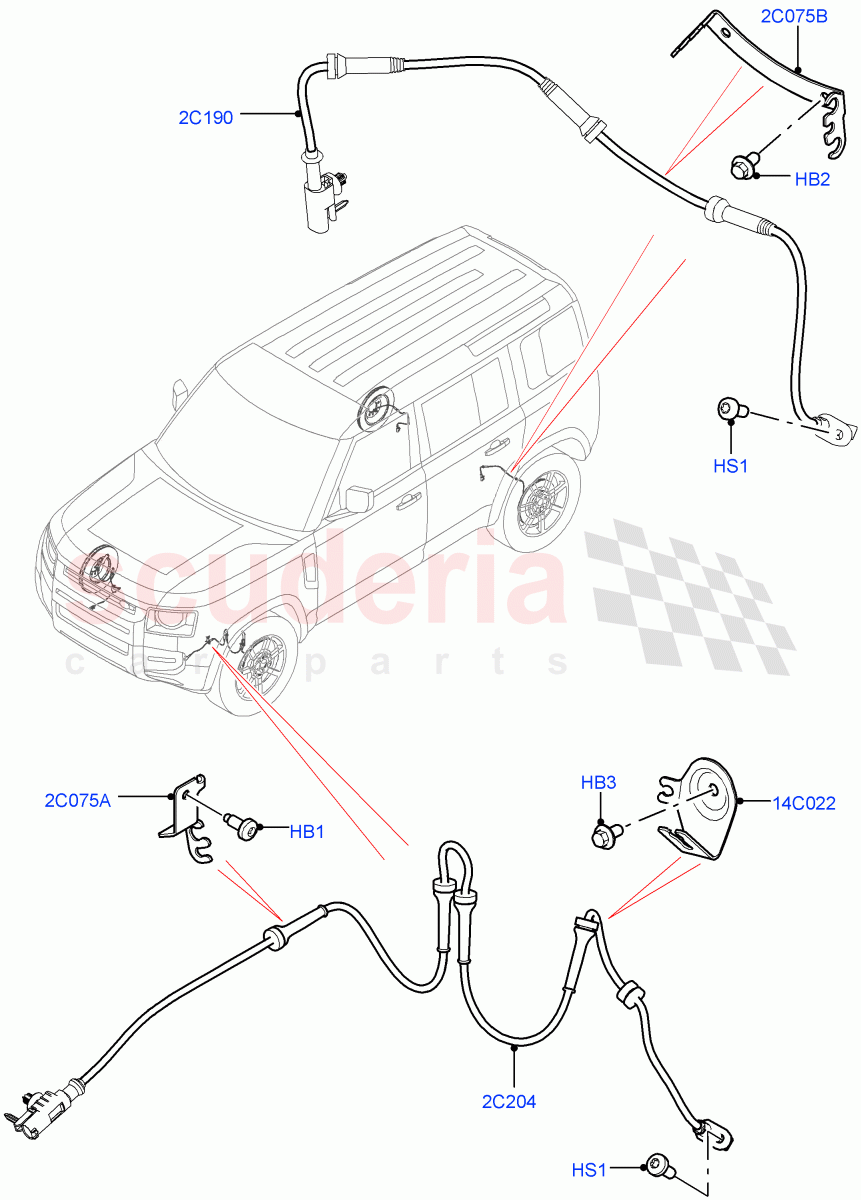

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	XYG500160	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106126M	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108166	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500920	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081609	SENSOR - ABS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081610	SENSOR - ABS	Enquire	To Order
	LR130686	SENSOR - ABS	Enquire	To Order
	LR130686	SENSOR - ABS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132743	BRACKET - WIRING	Enquire	To Order
	LR132736	BRACKET - WIRING	Enquire	To Order
	LR132736	BRACKET - WIRING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR033463	BRACKET - ABS SENSOR MOUNTING	Enquire	To Order
	LR033465	BRACKET - ABS SENSOR MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033304	BRACKET - ABS SENSOR MOUNTING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	XYG500160	BOLT	XYG500160 BOLT M6 x 12MM, Torx	-	2	Enquire
HB2	FS106126M	BOLT	FS106126M BOLT Hexagonal Head, M6 x 12MM	-	4	Enquire
HB3	FS108166	BOLT	FS108166 BOLT Hexagonal Head, M8 X 16MM	-	2	Enquire
HS1	RYP500920	SCREW	RYP500920 SCREW M6 X 14MM, Torx	-	4	Enquire
2C075A	LR033463	BRACKET - ABS SENSOR MOUNTING	LR033463 BRACKET - ABS SENSOR MOUNTING LH, Front, Inner	-	1	Enquire
2C075A	LR033465	BRACKET - ABS SENSOR MOUNTING	LR033465 BRACKET - ABS SENSOR MOUNTING RH, Front, Inner	-	1	Enquire
2C075B	LR033304	BRACKET - ABS SENSOR MOUNTING	LR033304 BRACKET - ABS SENSOR MOUNTING Rear, RH/LH	-	2	Enquire
2C190	LR081609	SENSOR - ABS	LR081609 SENSOR - ABS ABS, Rear, RH/LH	-	2	Enquire
2C204	LR081610	SENSOR - ABS	LR081610 SENSOR - ABS ABS, Front, RH/LH / To: L2999999	-	2	Enquire
2C204	LR130686	SENSOR - ABS	LR130686 SENSOR - ABS Disc And Caliper Size-Frt 18/RR 18 / ABS, Front, RH/LH / To: L2999999	-	2	Enquire
2C204	LR130686	SENSOR - ABS	LR130686 SENSOR - ABS ABS, Front, RH/LH / From: M2000001	-	2	Enquire
14C022	LR132743	BRACKET - WIRING	LR132743 BRACKET - WIRING Disc And Caliper Size-Frt 19/RR 19 / LH, Front, Outer / To: L2999999	-	1	Enquire
14C022	LR132736	BRACKET - WIRING	LR132736 BRACKET - WIRING Disc And Caliper Size-Frt 19/RR 19 / RH, Front, Outer / To: L2999999	-	1	Enquire
14C022	LR132736	BRACKET - WIRING	LR132736 BRACKET - WIRING RH, Front, Outer / From: M2000001	-	1	Enquire
14C022	LR132743	BRACKET - WIRING	LR132743 BRACKET - WIRING LH, Front, Outer / From: M2000001	-	1	Enquire
