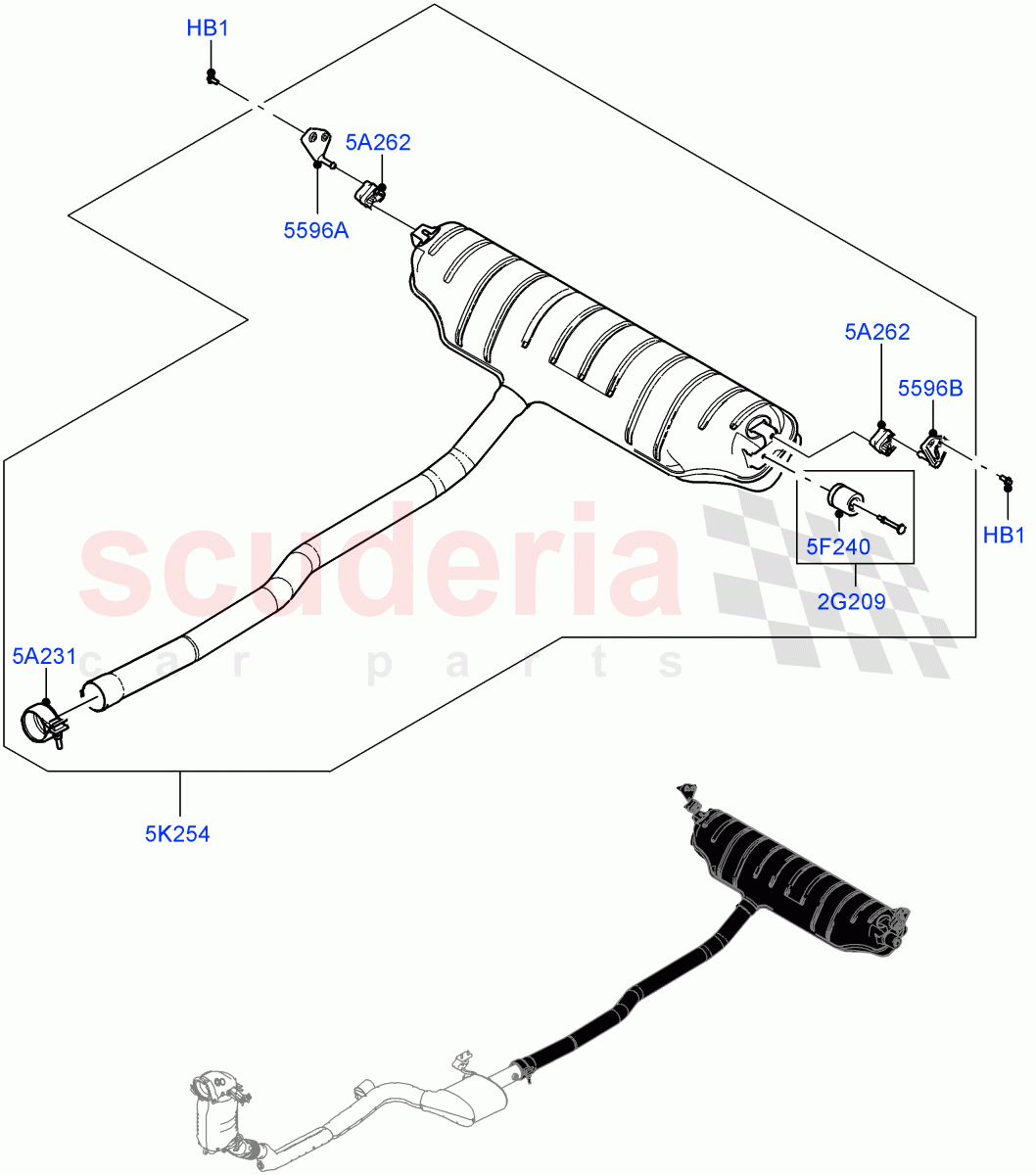

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137705	DAMPER - EXHAUST SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137013	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137014	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077709	CLAMP - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR144655	DAMPER	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FS108206	BOLT	FS108206 BOLT Hexagonal Head, M8 X 20MM	-	4	Enquire
2G209	LR137705	DAMPER - EXHAUST SYSTEM	LR137705 DAMPER - EXHAUST SYSTEM Kit	-	1	Enquire
5A231	LR077709	CLAMP - EXHAUST	LR077709 CLAMP - EXHAUST 70MM, Front	-	1	Enquire
5A262	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER For Rear Muffler	-	2	Enquire
5F240	LR144655	DAMPER	LR144655 DAMPER	-	1	Enquire
5K254	LR129584	MUFFLER - REAR	LR129584 MUFFLER - REAR Standard Wheelbase	-	1	Enquire
5K254	LR129581	MUFFLER - REAR	LR129581 MUFFLER - REAR Short Wheelbase	-	1	Enquire
5596A	LR137013	BRACKET - EXHAUST PIPE MOUNTING	LR137013 BRACKET - EXHAUST PIPE MOUNTING RH, For Rear Muffler	-	1	Enquire
5596B	LR137014	BRACKET - EXHAUST PIPE MOUNTING	LR137014 BRACKET - EXHAUST PIPE MOUNTING LH, For Rear Muffler	-	1	Enquire
