Front Exhaust System (Nitra Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, Stage V Plus DPF, Euro Stage 4 Emissions) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Diesel]

View All

Land Rover Defender (2020+) [2.0 Turbo Diesel] - Front Exhaust System (Nitra Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, Stage V Plus DPF, Euro Stage...

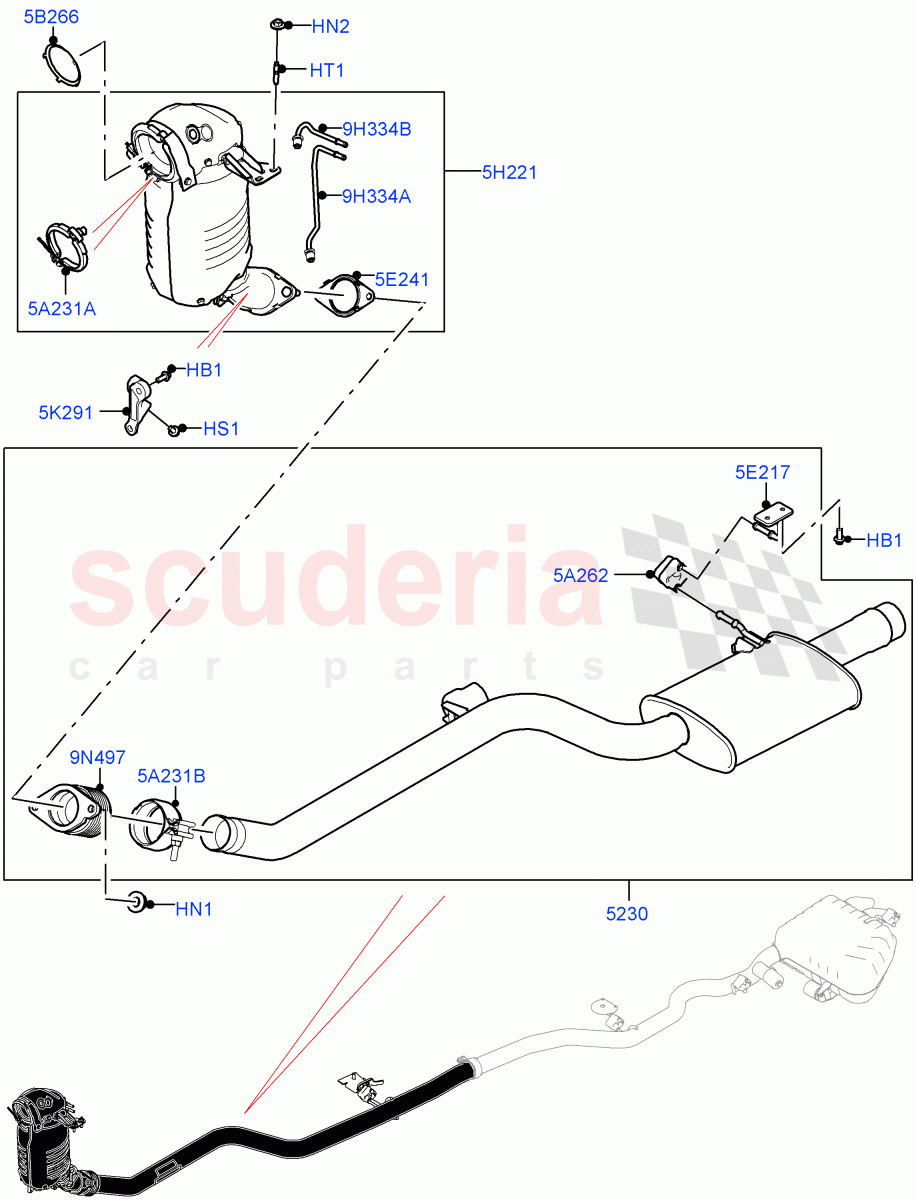

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FX110046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500370	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500190	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082730	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128248	PIPE - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072251	GASKET - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140313	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085942	GASKET - EXHAUST PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR111127	CATALYTIC CONVERTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082694	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088316	PIPE - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR111338	CLAMP - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007465	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095891	TUBE - EXHAUST PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095892	TUBE - EXHAUST PRESSURE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FS108206	BOLT	FS108206 BOLT Bracket, Hexagonal Head, M8 X 20MM	-	4	Enquire
HN1	FX110046	NUT - HEX.	FX110046 NUT - HEX. M10	-	2	Enquire
HN2	RYH500370	NUT AND WASHER - HEX.	RYH500370 NUT AND WASHER - HEX. M8 Hex, Nut And Washer	-	2	Enquire
HS1	RYP500190	SCREW	RYP500190 SCREW Bracket, Hexagonal Head, M6 x 12MM	-	2	Enquire
HT1	LR082730	STUD	LR082730 STUD M8 X 21.5MM + M8 X 22MM	-	2	Enquire
5A231A	LR111338	CLAMP - EXHAUST	LR111338 CLAMP - EXHAUST 101 mm, Turbocharger Outlet	-	1	Enquire
5A231B	LR007465	CLAMP	LR007465 CLAMP 60MM, Catalyst	-	1	Enquire
5A262	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER	-	1	Enquire
5B266	LR072251	GASKET - TURBOCHARGER	LR072251 GASKET - TURBOCHARGER 101 mm, Turbocharger Outlet	-	1	Enquire
5E217	LR140313	BRACKET - EXHAUST PIPE MOUNTING	LR140313 BRACKET - EXHAUST PIPE MOUNTING Rear	-	1	Enquire
5E241	LR085942	GASKET - EXHAUST PIPE	LR085942 GASKET - EXHAUST PIPE Post DPF	-	1	Enquire
5H221	LR111127	CATALYTIC CONVERTER	LR111127 CATALYTIC CONVERTER	-	1	Enquire
5K291	LR082694	BRACKET - EXHAUST PIPE MOUNTING	LR082694 BRACKET - EXHAUST PIPE MOUNTING Transmission	-	1	Enquire
9H334A	LR095891	TUBE - EXHAUST PRESSURE	LR095891 TUBE - EXHAUST PRESSURE Post DPF	-	1	Enquire
9H334B	LR095892	TUBE - EXHAUST PRESSURE	LR095892 TUBE - EXHAUST PRESSURE Pre DPF	-	1	Enquire
9N497	LR088316	PIPE - EXHAUST	LR088316 PIPE - EXHAUST Catalyst, Flexible, Inlet	-	1	Enquire
5230	LR128248	PIPE - EXHAUST	LR128248 PIPE - EXHAUST	-	1	Enquire
