Load Compartment Trim (Floor) (With Third Row Power Folding Seat) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

View All

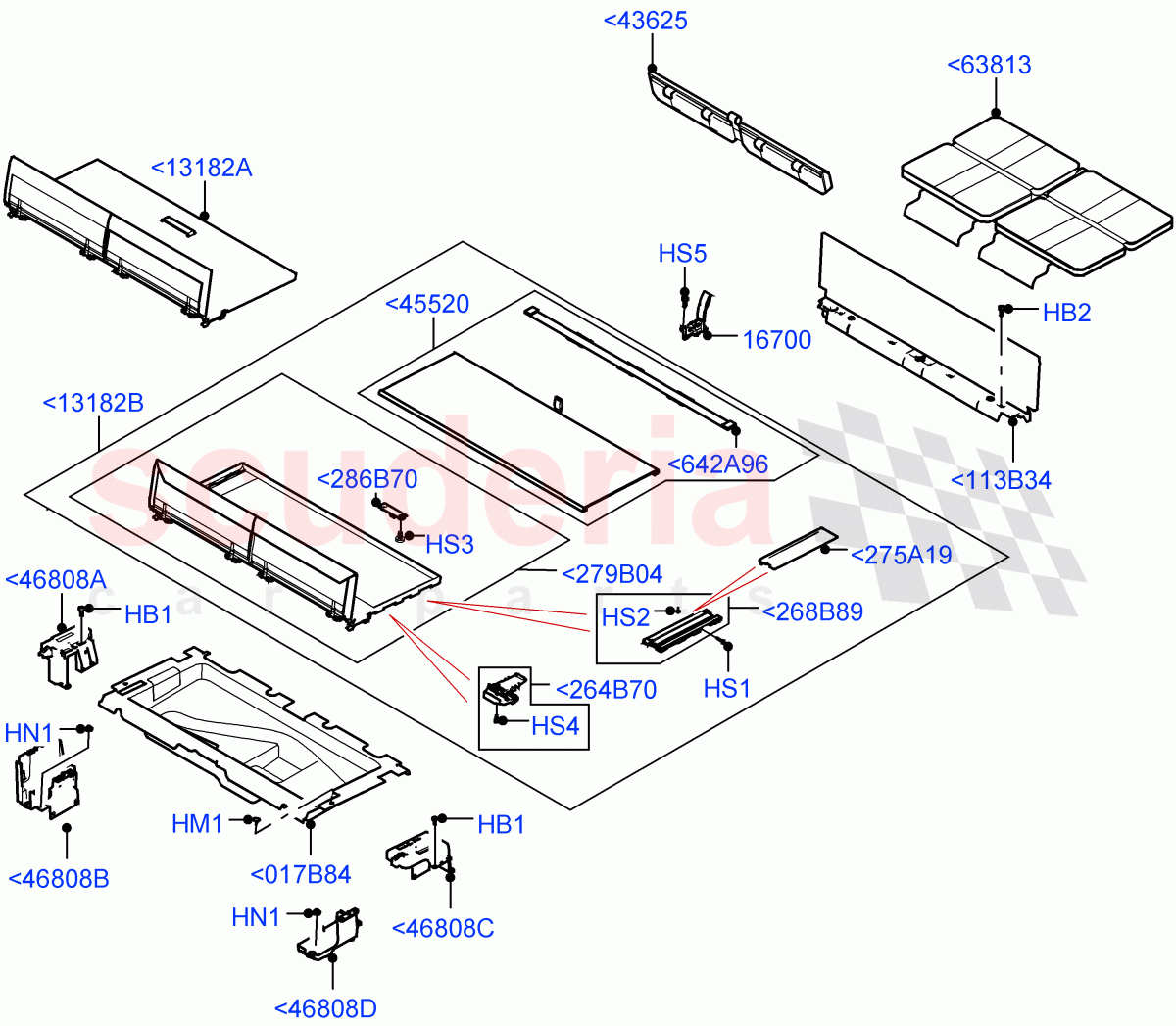

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Load Compartment Trim (Floor) (With Third Row Power Folding Seat)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	XYG500160	BOLT	Enquire	To Order
	XYG500160	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033409	BOLT AND WASHER M6 X 13.5 - HEXAGON HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RZM500070	PIN - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500540	NUT - SPECIAL	Enquire	To Order
	RYH500540	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151644	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151717	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151719	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151720	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500960	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151799	LATCH	Enquire	To Order
	LR173154	Latch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151624	EVENT SEAT BACKREST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153489	FLOOR BOARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151623	EVENT SEAT CUSHION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151621	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151836	PLATE - TAILGATE RECLINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151584	CARPET - FLOOR - LOADING COMP.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151586	CARPET - FLOOR - LOADING COMP.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153135	TRUNK FLOOR LIFTING MECHANISM	Enquire	To Order
	LR153133	TRUNK FLOOR LIFTING MECHANISM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153525	TRUNK FLOOR MECHANISM	Enquire	To Order
	LR153523	TRUNK FLOOR MECHANISM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153565	TRUNK FLOOR MECHANISM COVER	Enquire	To Order
	LR153564	TRUNK FLOOR MECHANISM COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153491	LOAD FLOOR TRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153526	STRIKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151593	BRACKET - SPARE WHEEL CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151591	BRACKET - SPARE WHEEL CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151616	BRACKET - SPARE WHEEL CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151615	BRACKET - SPARE WHEEL CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153514	STRAP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<017B84	LR151621	FOAM PAD - ENERGY ABSORBING	LR151621 FOAM PAD - ENERGY ABSORBING	-	1	Enquire
<113B34	LR151836	PLATE - TAILGATE RECLINE	LR151836 PLATE - TAILGATE RECLINE	-	1	Enquire
<264B70	LR153135	TRUNK FLOOR LIFTING MECHANISM	LR153135 TRUNK FLOOR LIFTING MECHANISM Versatile Loadspace Floor / LH	-	1	Enquire
<264B70	LR153133	TRUNK FLOOR LIFTING MECHANISM	LR153133 TRUNK FLOOR LIFTING MECHANISM Versatile L/Spce Flr W/Pre Cushns / RH	-	1	Enquire
<268B89	LR153525	TRUNK FLOOR MECHANISM	LR153525 TRUNK FLOOR MECHANISM Versatile L/Spce Flr W/Pre Cushns / LH	-	1	Enquire
<268B89	LR153523	TRUNK FLOOR MECHANISM	LR153523 TRUNK FLOOR MECHANISM Versatile L/Spce Flr W/Pre Cushns / RH	-	1	Enquire
<275A19	LR153565	TRUNK FLOOR MECHANISM COVER	LR153565 TRUNK FLOOR MECHANISM COVER Flip Flop Flr w Cshn,Lght,Spkr / LH	-	1	Enquire
<275A19	LR153564	TRUNK FLOOR MECHANISM COVER	LR153564 TRUNK FLOOR MECHANISM COVER Flip Flop Flr w Cshn,Lght,Spkr / RH	-	1	Enquire
<279B04	LR153491	LOAD FLOOR TRAY	LR153491 LOAD FLOOR TRAY Versatile Loadspace Floor	-	1	Enquire
<286B70	LR153526	STRIKER	LR153526 STRIKER Versatile Loadspace Floor	-	1	Enquire
<642A96	LR153514	STRAP	LR153514 STRAP Flip Flop Floor-Lights and Speakers	-	1	Enquire
<13182A	LR151584	CARPET - FLOOR - LOADING COMP.	LR151584 CARPET - FLOOR - LOADING COMP. Load Floor - Standard / Standard Floor	-	1	Enquire
<13182B	LR151586	CARPET - FLOOR - LOADING COMP.	LR151586 CARPET - FLOOR - LOADING COMP. Versatile Loadspace Floor / Smart Floor	-	1	Enquire
<43625	LR151624	EVENT SEAT BACKREST	LR151624 EVENT SEAT BACKREST Flip Flop Flr w Cshn,Lght,Spkr, Kit - Tyre Repair Service, With Mini Alloy Spare Wheel	-	1	Enquire
<45520	LR153489	FLOOR BOARD	LR153489 FLOOR BOARD Flip Flop Flr w Cshn,Lght,Spkr	-	1	Enquire
<46808A	LR151593	BRACKET - SPARE WHEEL CARRIER	LR151593 BRACKET - SPARE WHEEL CARRIER RH, Upper	-	1	Enquire
<46808B	LR151591	BRACKET - SPARE WHEEL CARRIER	LR151591 BRACKET - SPARE WHEEL CARRIER RH, Lower	-	1	Enquire
<46808C	LR151616	BRACKET - SPARE WHEEL CARRIER	LR151616 BRACKET - SPARE WHEEL CARRIER LH, Upper	-	1	Enquire
<46808D	LR151615	BRACKET - SPARE WHEEL CARRIER	LR151615 BRACKET - SPARE WHEEL CARRIER LH, Lower	-	1	Enquire
<63813	LR151623	EVENT SEAT CUSHION	LR151623 EVENT SEAT CUSHION Kit - Tyre Repair Service, Versatile L/Spce Flr W/Pre Cushns, With Mini Alloy Spare Wheel	-	1	Enquire
HB1	XYG500160	BOLT	XYG500160 BOLT RH, M6 x 12MM, Torx	-	6	Enquire
HB1	XYG500160	BOLT	XYG500160 BOLT LH, M6 x 12MM, Torx	-	4	Enquire
HB2	LR033409	BOLT AND WASHER M6 X 13.5 - HEXAGON HEAD	LR033409 BOLT AND WASHER M6 X 13.5 - HEXAGON HEAD M6 X 13.5MM	-	4	Enquire
HM1	RZM500070	PIN - SPECIAL	RZM500070 PIN - SPECIAL 6.4 X 20.4, Push Pin	-	2	Enquire
HN1	RYH500540	NUT - SPECIAL	RYH500540 NUT - SPECIAL LH, M6	-	2	Enquire
HN1	RYH500540	NUT - SPECIAL	RYH500540 NUT - SPECIAL RH, M6	-	3	Enquire
HS1	LR151644	SCREW	LR151644 SCREW Flip Flop Floor-Lights and Speakers / PIA to Smart Floor	-	4	Enquire
HS2	LR151717	SCREW	LR151717 SCREW Versatile L/Spce Flr W/Pre Cushns / PIA to Board Mechanism	-	8	Enquire
HS3	LR151719	SCREW	LR151719 SCREW Versatile L/Spce Flr W/Pre Cushns / Striker	-	2	Enquire
HS4	LR151720	SCREW	LR151720 SCREW Versatile L/Spce Flr W/Pre Cushns / PIA to Lifting Mechanism	-	1	Enquire
HS5	RYP500960	SCREW	RYP500960 SCREW Latch, M6 X 16MM, Torx	-	1	Enquire
16700	LR151799	LATCH	LR151799 LATCH Versatile L/Spce Flr W/Pre Cushns / To: NA000676	-	1	Enquire
16700	LR173154	Latch	LR173154 Latch Flip Flop Floor-Lights and Speakers / From: NA000677	-	1	Enquire
