Engine Harness (3.0L AJ20D6 Diesel High, Less Electric Engine Battery) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

View All

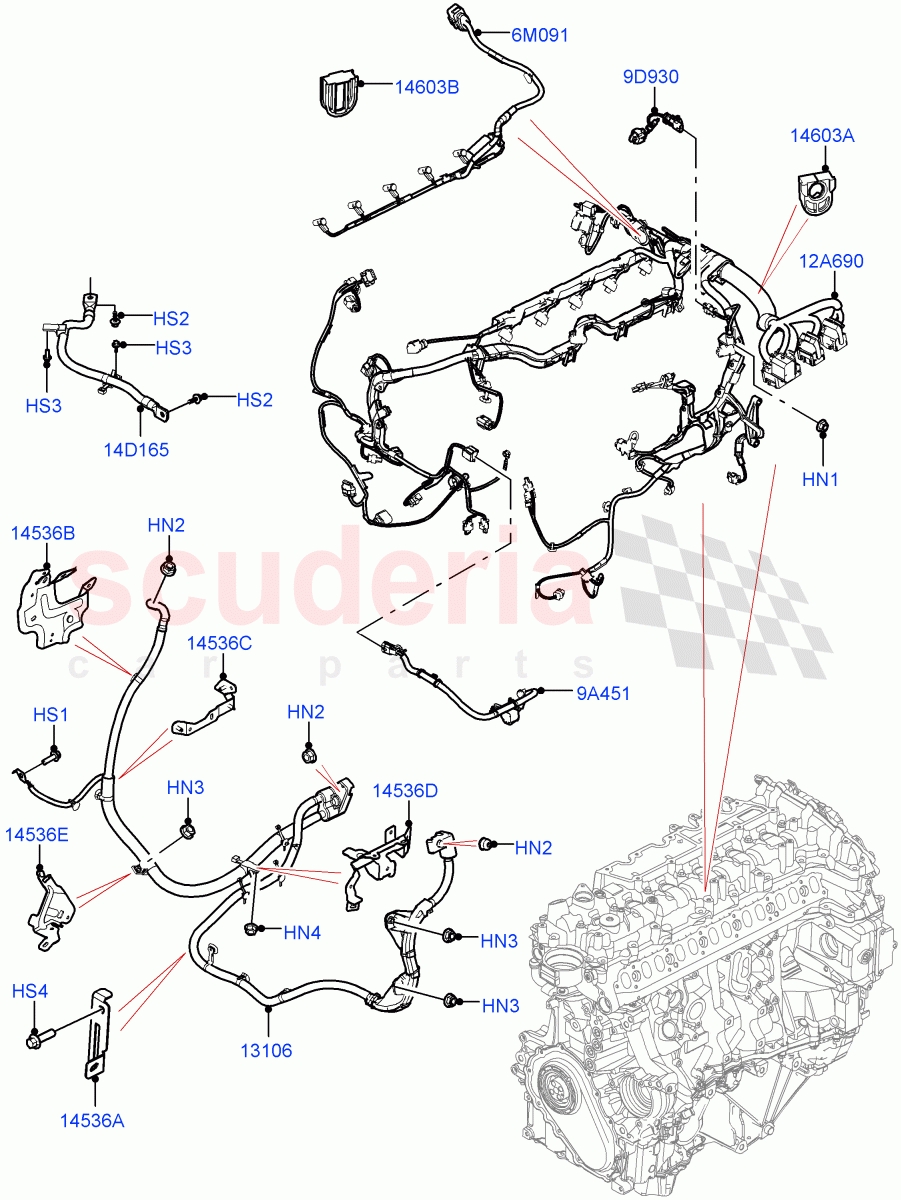

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Engine Harness (3.0L AJ20D6 Diesel High, Less Electric Engine Battery)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR087242	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122999	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154100	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154102	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124564	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122583	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108306	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159198	WIRING - ALTERNATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157219	WIRE - GLOW PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159245	LINK - CAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR171955	WIRE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157128	WIRING - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159061	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159862	BRACKET - JUMP START	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR173655	Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR164401	BRACKET - STARTER MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163551	BRACKET - STARTER MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154782	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154772	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159240	WIRE - ENGINE EARTH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HN1	LR087242	NUT - HEX.	LR087242 NUT - HEX. M6	-	1	Enquire
HN2	LR122999	NUT - HEX.	LR122999 NUT - HEX. M8	-	4	Enquire
HN3	LR154100	NUT - FLANGED	LR154100 NUT - FLANGED M6	-	3	Enquire
HN4	FN106046	NUT - HEX.	FN106046 NUT - HEX. Hexagonal Head, M6	-	1	Enquire
HS1	LR154102	Screw	LR154102 Screw M8X25	-	1	Enquire
HS2	LR124564	SCREW	LR124564 SCREW Hexagonal Head, M8 X 20MM, Taptite	-	2	Enquire
HS3	LR122583	SCREW	LR122583 SCREW Hexagonal Head, M6 X 16	-	2	Enquire
HS4	FS108306	SCREW	FS108306 SCREW Bracket, M8 x 30MM	-	1	Enquire
6M091	LR157219	WIRE - GLOW PLUG	LR157219 WIRE - GLOW PLUG	-	1	Enquire
9A451	LR159245	LINK - CAN	LR159245 LINK - CAN Alternator, Link	-	1	Enquire
9D930	LR171955	WIRE	LR171955 WIRE Fuel Pressure Sensor	-	1	Enquire
12A690	LR157128	WIRING - ENGINE	LR157128 WIRING - ENGINE	-	1	Enquire
14D165	LR159240	WIRE - ENGINE EARTH	LR159240 WIRE - ENGINE EARTH Engine Earth	-	1	Enquire
13106	LR159198	WIRING - ALTERNATOR	LR159198 WIRING - ALTERNATOR Alternator, Starter Motor	-	1	Enquire
14536A	LR159061	BRACKET	LR159061 BRACKET	-	1	Enquire
14536B	LR159862	BRACKET - JUMP START	LR159862 BRACKET - JUMP START Jump Start	-	1	Enquire
14536C	LR173655	Bracket	LR173655 Bracket Starter Cable	-	1	Enquire
14536D	LR164401	BRACKET - STARTER MOTOR	LR164401 BRACKET - STARTER MOTOR LH, Starter Motor	-	1	Enquire
14536E	LR163551	BRACKET - STARTER MOTOR	LR163551 BRACKET - STARTER MOTOR RH, Starter Motor	-	1	Enquire
14603A	LR154782	PLUG - BLANKING	LR154782 PLUG - BLANKING Engine Harness	-	1	Enquire
14603B	LR154772	PLUG - BLANKING	LR154772 PLUG - BLANKING Blanking Plug	-	1	Enquire
