Name: Auto Trans Assy & Speedometer Drive (3.0L AJ20P6 Petrol High, 8 Speed Auto Trans ZF 8HP76)
Rating: 4.8 (1 reviews)

View All

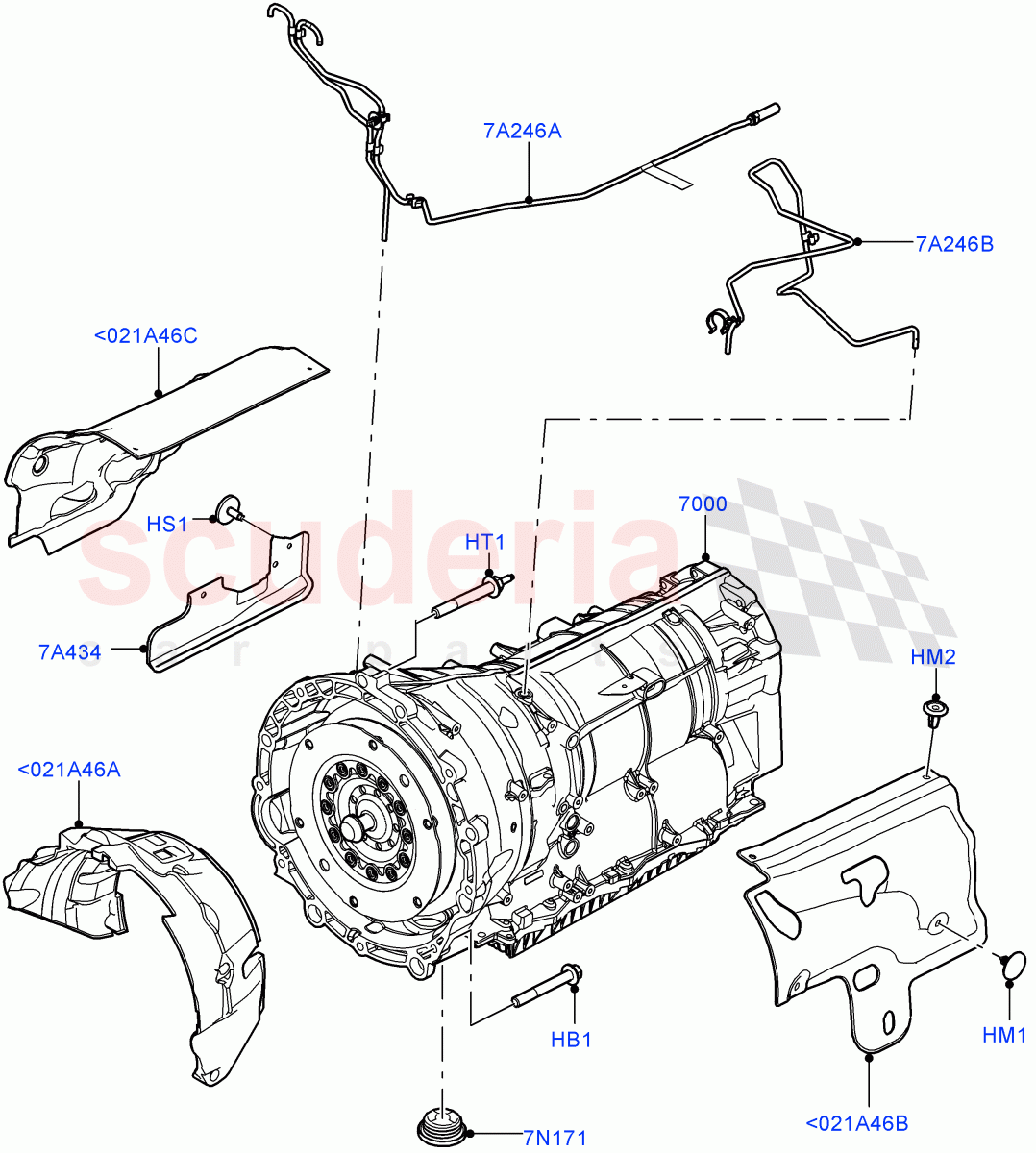

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FB110156	BOLT - HEX.HEAD	$2.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR078426	FASTENER - COVER	$1.39	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500040	FASTENER	$0.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR042472	SCREW	$0.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017279	STUD	$2.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159572	AUTOMATIC TRANSMISSION	$12,766.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152491	SHIELD - TRANSMISSION	$21.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123854	GROMMET - CONVERTER ACCESS	$7.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR164077	TUBE - TRANSMISSION VENTILATION	$59.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR164076	TUBE - TRANSMISSION VENTILATION	$61.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139493	INSULATOR	$142.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121409	INSULATOR - TRANSMISSION	$138.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121407	INSULATOR - TRANSMISSION	$142.13	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<021A46A	LR139493	INSULATOR	LR139493 INSULATOR Front	$142.96	1
<021A46B	LR121409	INSULATOR - TRANSMISSION	LR121409 INSULATOR - TRANSMISSION Thermal Encapsulation Covers / LH	$138.21	1
<021A46C	LR121407	INSULATOR - TRANSMISSION	LR121407 INSULATOR - TRANSMISSION Thermal Encapsulation Covers / RH	$142.13	1
HB1	FB110156	BOLT - HEX.HEAD IN STOCK	FB110156 BOLT - HEX.HEAD Hexagonal Head, M10 x 75MM, Transmission To Engine IN STOCK	$2.58	5
HM1	LR078426	FASTENER - COVER	LR078426 FASTENER - COVER Thermal Encapsulation Covers / 4.75 x 0.76 - 7.9	$1.39	4
HM2	RYQ500040	FASTENER IN STOCK	RYQ500040 FASTENER Thermal Encapsulation Covers / 6.25 x 1.6/6MM IN STOCK	$0.58	2
HS1	LR042472	SCREW	LR042472 SCREW Heatshield, Hexagonal Head, M6 X 16MM	$0.95	2
HT1	LR017279	STUD	LR017279 STUD M10 x 75MM, M6 X 16MM, Transmission To Engine	$2.16	3
7A246A	LR164077	TUBE - TRANSMISSION VENTILATION	LR164077 TUBE - TRANSMISSION VENTILATION Rear	$59.92	1
7A246B	LR164076	TUBE - TRANSMISSION VENTILATION	LR164076 TUBE - TRANSMISSION VENTILATION Front	$61.96	1
7A434	LR152491	SHIELD - TRANSMISSION	LR152491 SHIELD - TRANSMISSION Front	$21.91	1
7N171	LR123854	GROMMET - CONVERTER ACCESS	LR123854 GROMMET - CONVERTER ACCESS Converter Drain Access	$7.06	1
7000	LR159572	AUTOMATIC TRANSMISSION	LR159572 AUTOMATIC TRANSMISSION Includes Converter	$12,766.02	1

Auto Trans Assy & Speedometer Drive (3.0L Aj20P6 Petrol High, 8 Speed Auto Trans Zf 8Hp76)

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]
