Timing Gear (4.4 V8 Turbo Petrol (Nc10))

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

Find Your Part

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Timing Gear (4.4 V8 Turbo Petrol (NC10))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR158435 BOLT $202.70 To Order
Photo Part No Description Price (each) Stock
LR158534 SCREW $2.70 To Order
Photo Part No Description Price (each) Stock
LR159214 BOLT $4.30 To Order
Photo Part No Description Price (each) Stock
LR158273 BOLT AND WASHER - HEX.HEAD $2.07 To Order
Photo Part No Description Price (each) Stock
LR158552 SCREW $12.25 To Order
Photo Part No Description Price (each) Stock
LR158553 BOLT $9.18 To Order
Photo Part No Description Price (each) Stock
LR158537 SCREW $10.13 To Order
Photo Part No Description Price (each) Stock
LR158331 TENSIONER - TIMING BELT $134.57 To Order
Photo Part No Description Price (each) Stock
LR158220 GASKET - OIL TUBE $4.31 To Order
Photo Part No Description Price (each) Stock
LR159296 SPROCKET - CAMSHAFT $535.61 To Order
Photo Part No Description Price (each) Stock
LR159295 SPROCKET - CAMSHAFT $535.61 To Order
Photo Part No Description Price (each) Stock
LR158706 KIT - TIMING CHAIN AND RAIL $196.01 To Order
Photo Part No Description Price (each) Stock
LR158707 KIT - TIMING CHAIN AND RAIL $177.26 To Order
Photo Part No Description Price (each) Stock
LR158327 KEY - WOODRUFF $3.98 To Order
Photo Part No Description Price (each) Stock
LR158346 SPROCKET $73.41 To Order
Photo Part No Description Price (each) Stock
LR159292 GUIDE - TIMING CHAIN $62.43 To Order
Photo Part No Description Price (each) Stock
LR158324 GUIDE - TIMING CHAIN $57.24 To Order
Photo Part No Description Price (each) Stock
LR159289 GUIDE $62.43 To Order
Photo Part No Description Price (each) Stock
LR158333 GUIDE - TIMING CHAIN $62.43 To Order
Photo Part No Description Price (each) Stock
LR170336 GUIDE $62.86 To Order
View All

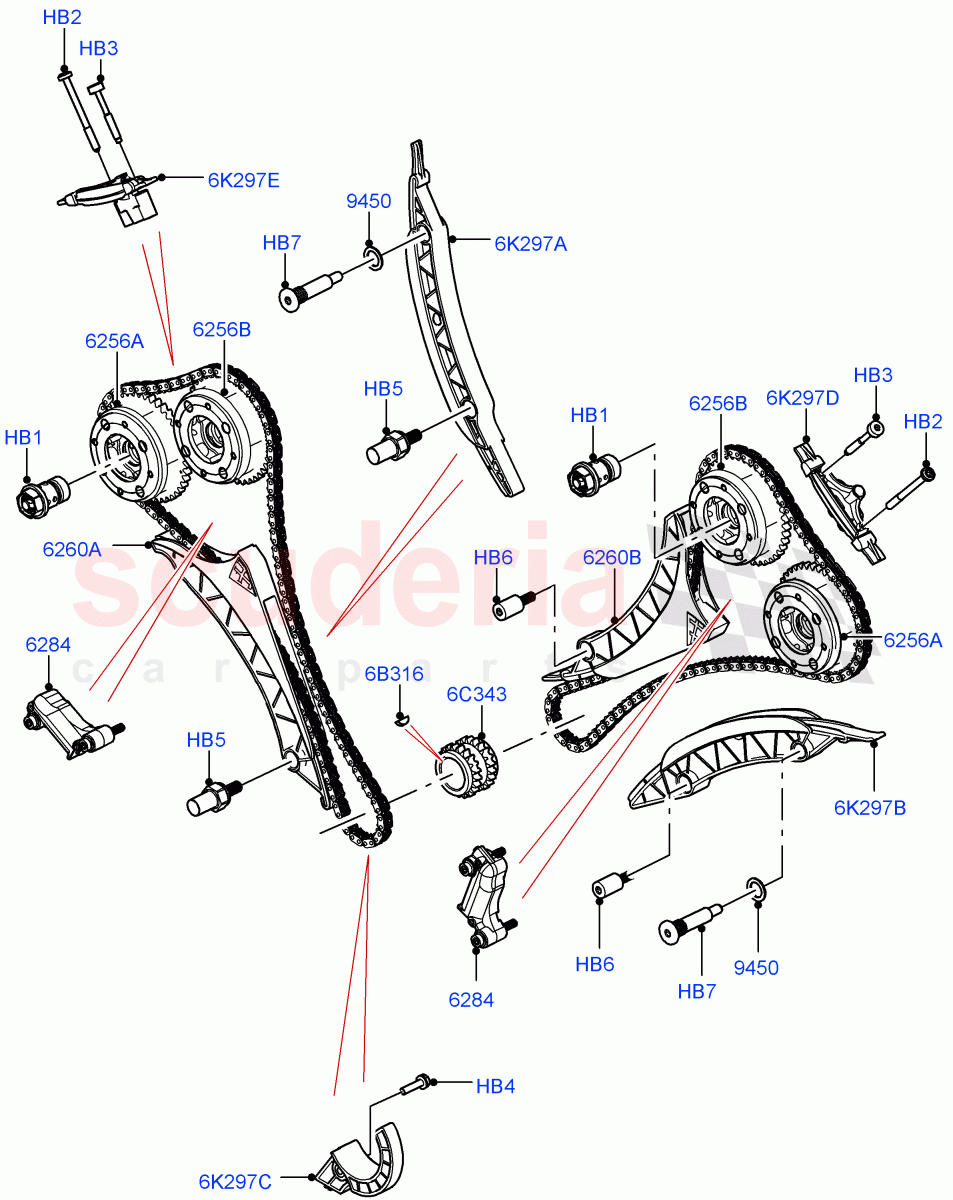

Timing Gear (4.4 V8 Turbo Petrol (NC10)) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR158435
BOLT
Solenoid - Engine Variable Timing 		$202.70 4
HB2 LR158534
SCREW
Chain Guide, M6 x 67 mm, Upper 		$2.70 2
HB3 LR159214
BOLT
Chain Guide, M6 x 48 mm, Upper 		$4.30 2
HB4 LR158273
BOLT AND WASHER - HEX.HEAD
Chain Guide, Lower, M6 x 25MM, RH Cylinder Bank 		$2.07 1
HB5 LR158552
SCREW
Centre, Chain Guide, RH Cylinder Bank 		$12.25 2
HB6 LR158553
BOLT
Centre, Chain Guide, LH Cylinder Bank 		$9.18 2
HB7 LR158537
SCREW
Centre, Chain Guide 		$10.13 2
6B316 LR158327
KEY - WOODRUFF 		$3.98 1
6C343 LR158346
SPROCKET 		$73.41 1
6K297A LR159292
GUIDE - TIMING CHAIN
Centre, RH Cylinder Bank 		$62.43 1
6K297B LR158324
GUIDE - TIMING CHAIN
Centre, LH Cylinder Bank 		$57.24 1
6K297C LR159289
GUIDE
Lower, RH Cylinder Bank 		$62.43 1
6K297D LR158333
GUIDE - TIMING CHAIN
LH Cylinder Bank, Upper 		$62.43 1
6K297E LR170336
GUIDE
RH Cylinder Bank, Upper 		$62.86 1
6256A LR159296
SPROCKET - CAMSHAFT
Inlet, Variable Valve Timing Unit 		$535.61 2
6256B LR159295
SPROCKET - CAMSHAFT
Exhaust, Variable Valve Timing Unit 		$535.61 2
6260A LR158706
KIT - TIMING CHAIN AND RAIL
RH Cylinder Bank, With Tensioner Rail 		$196.01 1
6260B LR158707
KIT - TIMING CHAIN AND RAIL
LH Cylinder Bank, With Tensioner Rail 		$177.26 1
6284 LR158331
TENSIONER - TIMING BELT 		$134.57 2
9450 LR158220
GASKET - OIL TUBE
A14 x 21, Centre, Chain Guide 		$4.31 2
