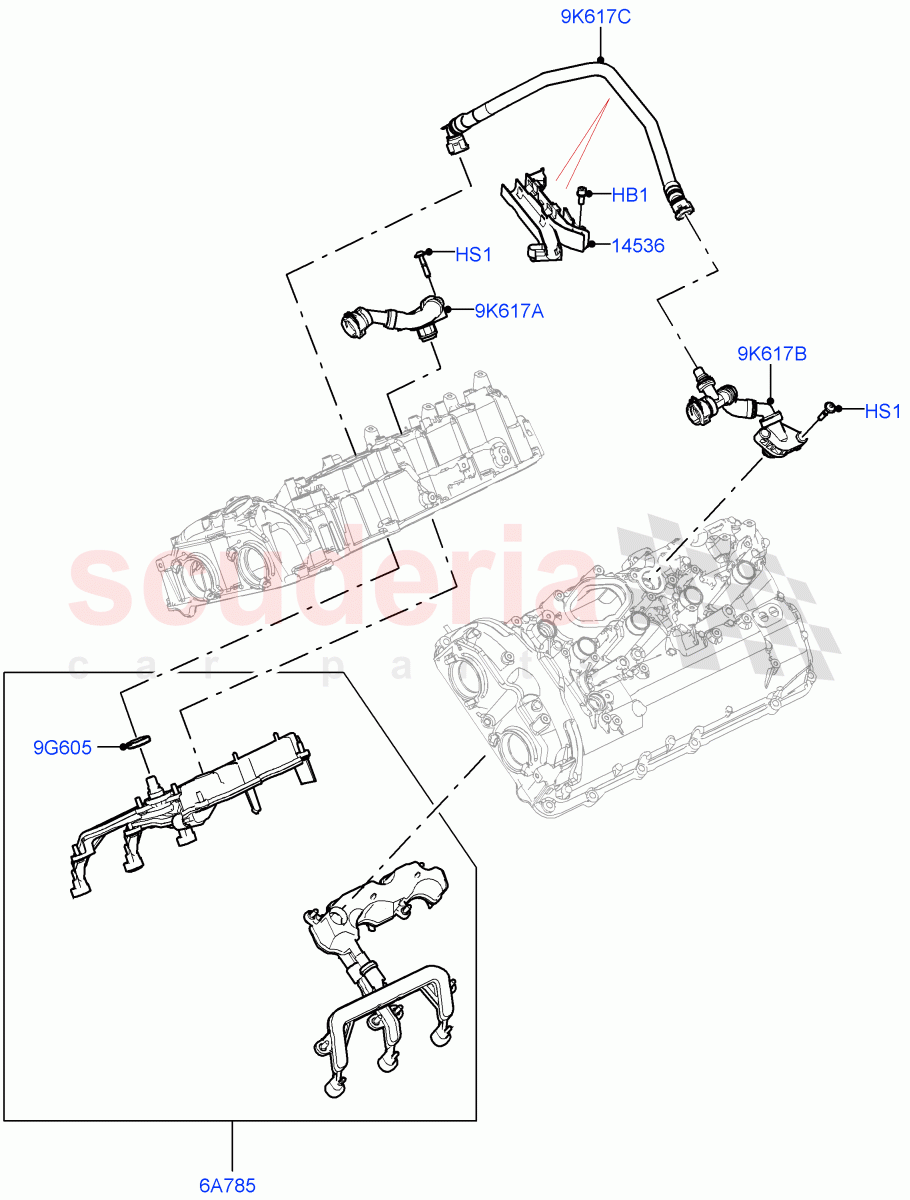

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR158585	BOLT AND WASHER - TORX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158545	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159853	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158677	COVER - BREATHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158335	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158760	HOSE - CRANKCASE VENTILATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158759	HOSE - CRANKCASE VENTILATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158727	TUBE - BREATHER	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR158585	BOLT AND WASHER - TORX HEAD	LR158585 BOLT AND WASHER - TORX HEAD Bracket, M6 X 16MM	-	1	Enquire
HS1	LR158545	SCREW	LR158545 SCREW Breather, M6 X 16, Tube	-	4	Enquire
6A785	LR158677	COVER - BREATHER	LR158677 COVER - BREATHER Kit/Set, RH/LH	-	1	Enquire
9G605	LR158335	GASKET	LR158335 GASKET RH Cylinder Bank	-	1	Enquire
9K617A	LR158760	HOSE - CRANKCASE VENTILATION	LR158760 HOSE - CRANKCASE VENTILATION RH Cylinder Bank	-	1	Enquire
9K617B	LR158759	HOSE - CRANKCASE VENTILATION	LR158759 HOSE - CRANKCASE VENTILATION LH Cylinder Bank	-	1	Enquire
9K617C	LR158727	TUBE - BREATHER	LR158727 TUBE - BREATHER RH/LH	-	1	Enquire
14536	LR159853	BRACKET	LR159853 BRACKET Interconnection, RH And LH, Wire	-	1	Enquire

Haven't found what you're looking for?

View Cart / Checkout

Emission Control - Crankcase (4.4 V8 Turbo Petrol (Nc10))

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]
