Name: Rear Cross Member & Stabilizer Bar (Crossmember)
Rating: 4.8 (1 reviews)

Rear Cross Member & Stabilizer Bar (Crossmember) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6]

View All

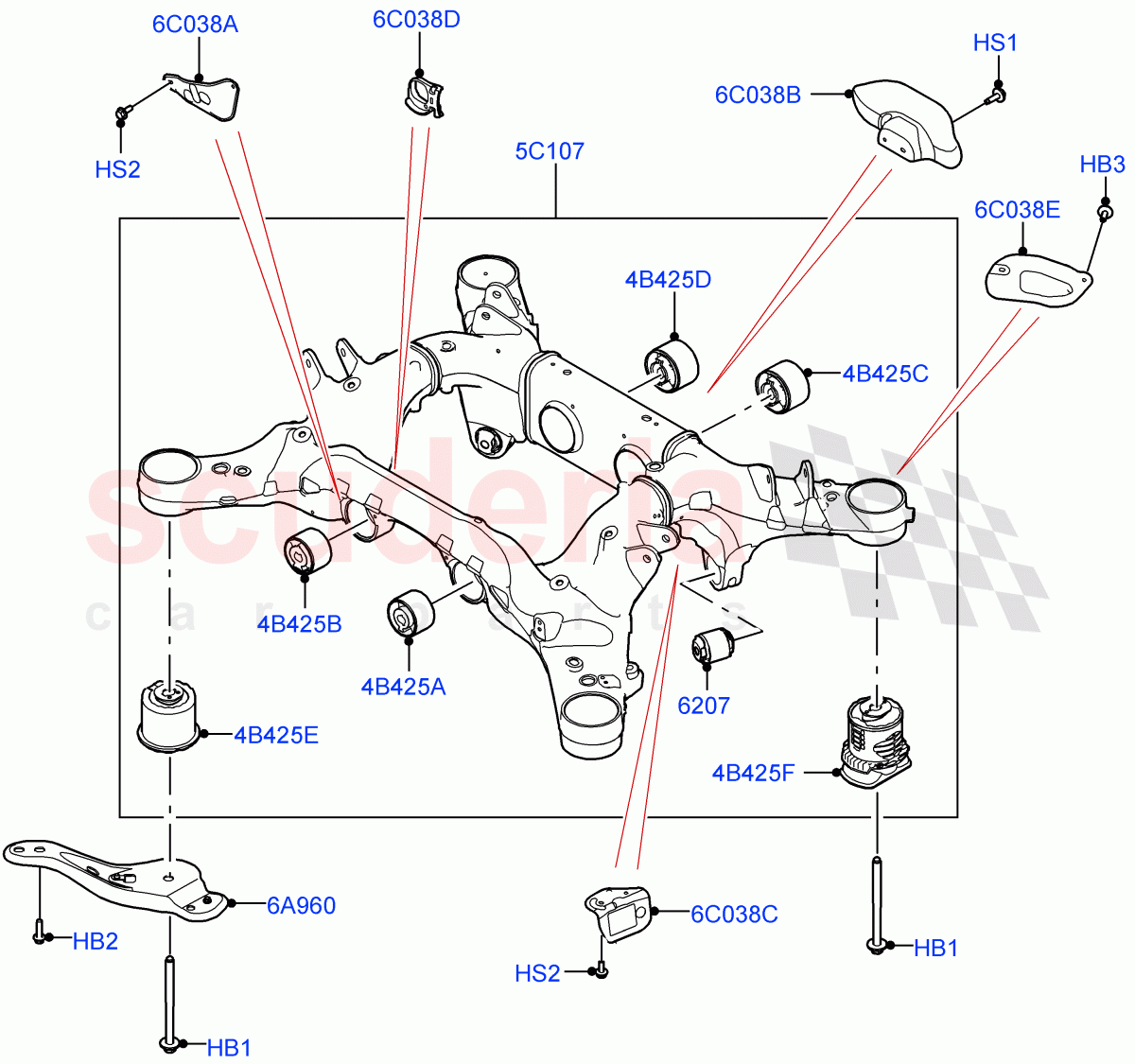

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] - Rear Cross Member & Stabilizer Bar (Crossmember)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR150963	BOLT	$11.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037523	BOLT	$2.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141396	BOLT	$1.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090381	SCREW AND WASHER	$1.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029806	M6 X 16 HEX HEAD SCREW AND WASHER	$1.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR166806	INSULATOR - BUSH TYPE	$48.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152703	CROSS MEMBER - REAR	$2,660.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR150965	BRACKET - CROSS MEMBER TO FLOOR	$31.07	To Order
	LR150966	BRACKET - CROSS MEMBER TO FLOOR	$52.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152704	INSULATOR - BUSH TYPE	$52.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152705	INSULATOR - BUSH TYPE	$52.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152706	INSULATOR - BUSH TYPE	$52.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152709	INSULATOR - BUSH TYPE	$52.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161282	INSULATOR - CROSS MEMBER	$45.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152718	INSULATOR - CROSS MEMBER	$123.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157642	HEAT SHIELD - UNDERFLOOR	$10.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153350	HEAT SHIELD - UNDERFLOOR	$22.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153358	HEAT SHIELD - UNDERFLOOR	$22.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153352	HEAT SHIELD - DIFFERENTIAL	$22.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153362	HEAT SHIELD - UNDERFLOOR	$22.16	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR150963	BOLT	LR150963 BOLT Hexagonal Head, M14 x 185 MM	$11.10	4
HB2	LR037523	BOLT	LR037523 BOLT Hexagonal Head, M10 x 35MM	$2.30	4
HB3	LR141396	BOLT	LR141396 BOLT Hexagonal Head, M6X18	$1.42	2
HS1	LR090381	SCREW AND WASHER	LR090381 SCREW AND WASHER Hexagonal Head, M6 X 20MM	$1.01	2
HS2	LR029806	M6 X 16 HEX HEAD SCREW AND WASHER IN STOCK	LR029806 M6 X 16 HEX HEAD SCREW AND WASHER Hexagonal Head, M6 X 16MM IN STOCK	$1.19	4
4B425A	LR152704	INSULATOR - BUSH TYPE	LR152704 INSULATOR - BUSH TYPE Differential, LH Front	$52.24	1
4B425B	LR152705	INSULATOR - BUSH TYPE	LR152705 INSULATOR - BUSH TYPE Differential, RH Front	$52.24	1
4B425C	LR152706	INSULATOR - BUSH TYPE	LR152706 INSULATOR - BUSH TYPE Differential, LH Rear	$52.24	1
4B425D	LR152709	INSULATOR - BUSH TYPE	LR152709 INSULATOR - BUSH TYPE Differential, RH Rear	$52.24	1
4B425E	LR161282	INSULATOR - CROSS MEMBER	LR161282 INSULATOR - CROSS MEMBER Frame To Body, Front	$45.67	2
4B425F	LR152718	INSULATOR - CROSS MEMBER	LR152718 INSULATOR - CROSS MEMBER Frame To Body, Rear	$123.84	2
5C107	LR152703	CROSS MEMBER - REAR	LR152703 CROSS MEMBER - REAR	$2,660.46	1
6A960	LR150965	BRACKET - CROSS MEMBER TO FLOOR	LR150965 BRACKET - CROSS MEMBER TO FLOOR RH Front	$31.07	1
6A960	LR150966	BRACKET - CROSS MEMBER TO FLOOR	LR150966 BRACKET - CROSS MEMBER TO FLOOR LH Front	$52.95	1
6C038A	LR157642	HEAT SHIELD - UNDERFLOOR	LR157642 HEAT SHIELD - UNDERFLOOR RH Front	$10.43	1
6C038B	LR153350	HEAT SHIELD - UNDERFLOOR	LR153350 HEAT SHIELD - UNDERFLOOR Rear Centre	$22.16	1
6C038C	LR153358	HEAT SHIELD - UNDERFLOOR	LR153358 HEAT SHIELD - UNDERFLOOR 4.4 V8 Turbo Petrol (NC10) / LH Lower, Rear	$22.16	1
6C038D	LR153352	HEAT SHIELD - DIFFERENTIAL	LR153352 HEAT SHIELD - DIFFERENTIAL Differential, RH Front	$22.16	1
6C038E	LR153362	HEAT SHIELD - UNDERFLOOR	LR153362 HEAT SHIELD - UNDERFLOOR LH Rear	$22.16	1
6207	LR166806	INSULATOR - BUSH TYPE	LR166806 INSULATOR - BUSH TYPE Lower Arm	$48.65	2
