Find Your Part

View All

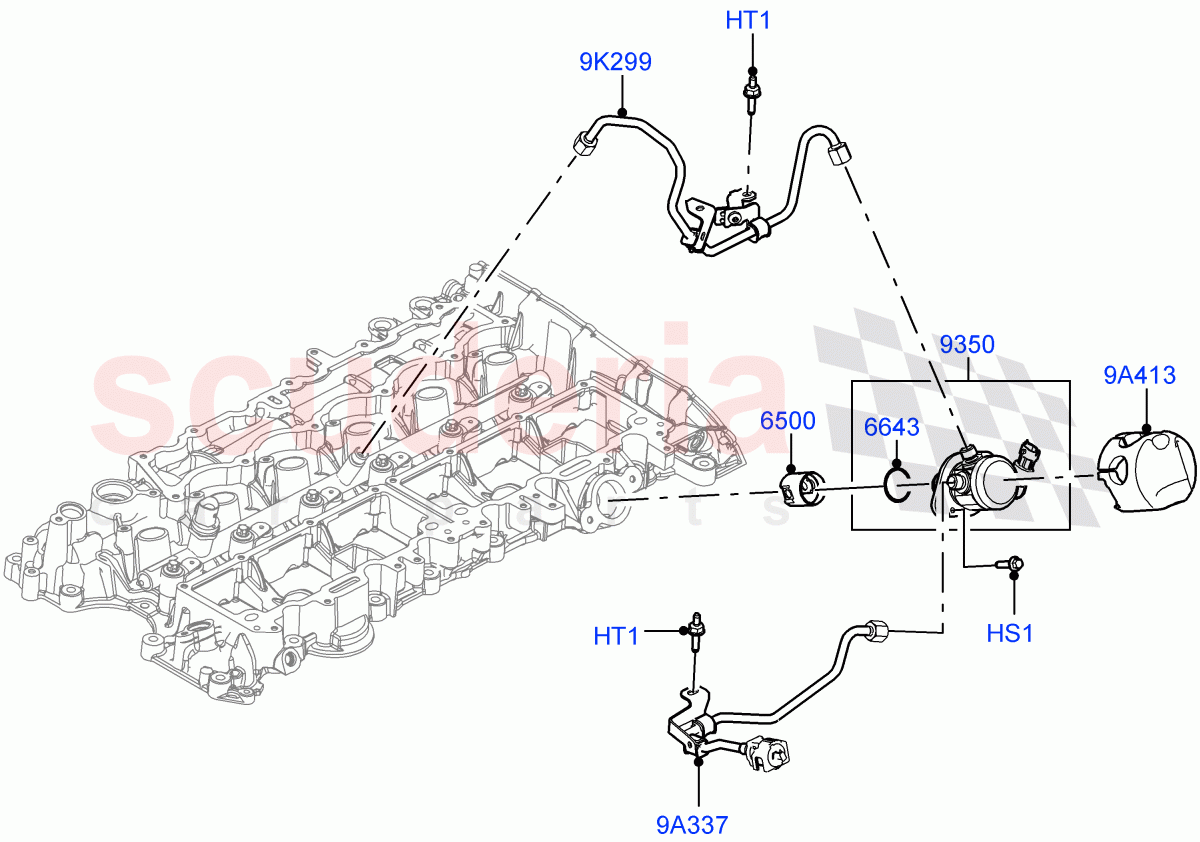

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR128483	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR089197	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121798	TAPPET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010861	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121766	PUMP - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121771	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121765	ACOUSTIC COVER - FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121770	PIPE - FUEL	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	LR128483	SCREW	LR128483 SCREW Fuel Pump	-	2	Enquire
HT1	LR089197	STUD	LR089197 STUD M6 x 22 mm + M6 x 12 mm	-	3	Enquire
9A337	LR121771	PIPE - FUEL	LR121771 PIPE - FUEL Fuel Pump, Inlet	-	1	Enquire
9A413	LR121765	ACOUSTIC COVER - FUEL PUMP	LR121765 ACOUSTIC COVER - FUEL PUMP Insulator	-	1	Enquire
9K299	LR121770	PIPE - FUEL	LR121770 PIPE - FUEL To Fuel Rail	-	1	Enquire
6500	LR121798	TAPPET	LR121798 TAPPET Fuel Pump	-	1	Enquire
6643	LR010861	O-RING	LR010861 O-RING 31MM X 2MM, Fuel Pump	-	1	Enquire
9350	LR121766	PUMP - FUEL	LR121766 PUMP - FUEL	-	1	Enquire
