Oil Pan/Oil Level Indicator (3.0L AJ20P6 Petrol High, 3.0L AJ20P6 Petrol PHEV) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] - Oil Pan/Oil Level Indicator (3.0L AJ20P6 Petrol High, 3.0L AJ20P6 Petrol PHEV)

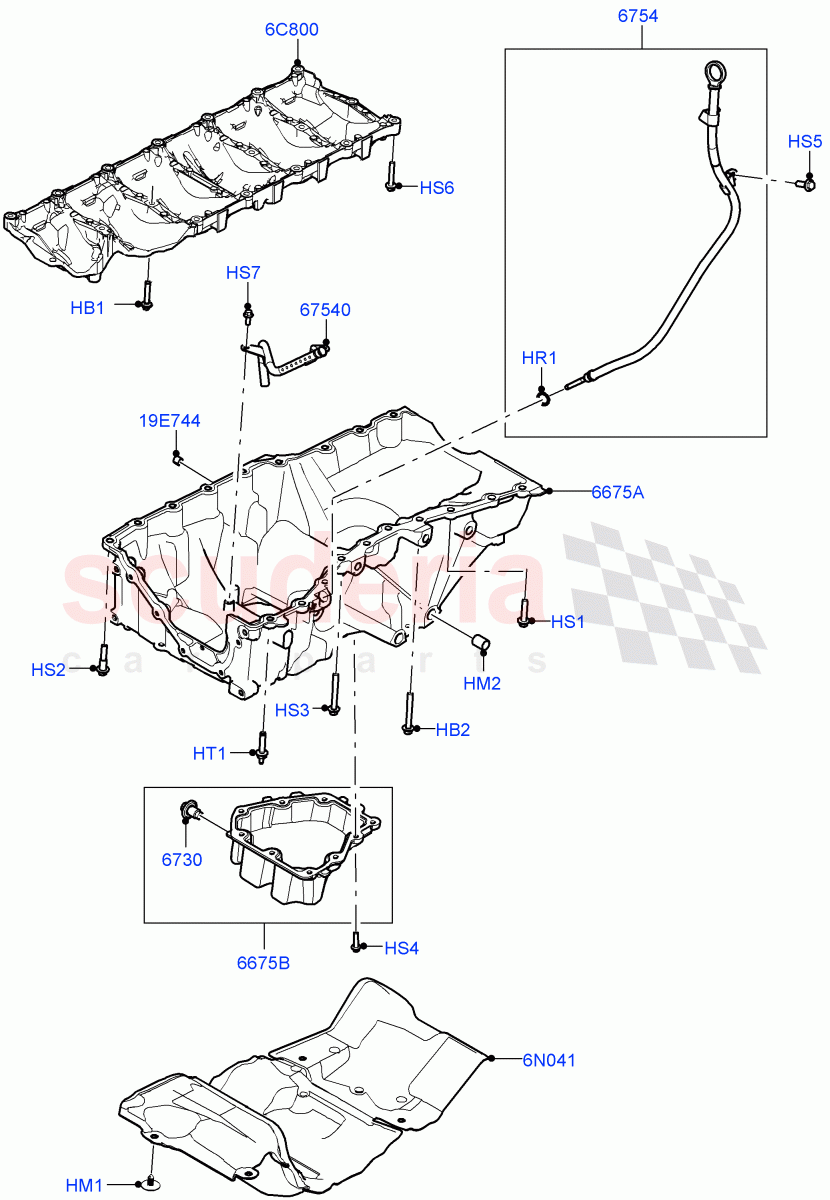

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR133629	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154784	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RZM500070	PIN - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073637	DOWEL - PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074127	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073676	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073677	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154785	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073635	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR108591	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR089234	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073675	PLUG - OIL DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154773	TUBE - OIL EXTRACTION	Enquire	To Order
	LR165000	TUBE - OIL LEVEL INDICATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154780	PAN - ENGINE OIL	Enquire	To Order
	LR174655	Pan - Engine Oil	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154778	PAN - ENGINE OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR156868	TUBE - OIL EXTRACTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132045	TRAY - OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152045	INSULATOR - OIL SUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057802	DOWEL - PIN	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR133629	BOLT	LR133629 BOLT M6 x 35MM, Middle, Windage Tray	-	5	Enquire
HB2	LR154784	BOLT	LR154784 BOLT M8 x 50MM	-	1	Enquire
HM1	RZM500070	PIN - SPECIAL	RZM500070 PIN - SPECIAL 6.4 X 20.4, Insulator, Push Pin	-	4	Enquire
HM2	LR073637	DOWEL - PIN	LR073637 DOWEL - PIN 16.5 x 20, Pin - Dowell	-	1	Enquire
HR1	LR074127	O-RING	LR074127 O-RING 11.5 x 2 mm, Tube Indicator	-	1	Enquire
HS1	LR073676	SCREW	LR073676 SCREW M8 x 35mm	-	9	Enquire
HS2	LR073677	SCREW	LR073677 SCREW M8 x 42mm	-	2	Enquire
HS3	LR154785	SCREW	LR154785 SCREW M8 X 45MM	-	1	Enquire
HS4	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM	-	10	Enquire
HS5	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM, Oil Level Indicator	-	1	Enquire
HS6	LR073635	SCREW	LR073635 SCREW M6 x 35MM, Windage Tray	-	12	Enquire
HS7	LR108591	BOLT	LR108591 BOLT M6 X 16MM, Tube - Oil Extraction	-	2	Enquire
HT1	LR089234	STUD	LR089234 STUD M8 X 35 + M6 X 12	-	6	Enquire
6C800	LR132045	TRAY - OIL	LR132045 TRAY - OIL	-	1	Enquire
6N041	LR152045	INSULATOR - OIL SUMP	LR152045 INSULATOR - OIL SUMP Oil Pan	-	1	Enquire
19E744	LR057802	DOWEL - PIN	LR057802 DOWEL - PIN	-	2	Enquire
6675A	LR154780	PAN - ENGINE OIL	LR154780 PAN - ENGINE OIL Upper / To: NA005460	-	1	Enquire
6675A	LR174655	Pan - Engine Oil	LR174655 Pan - Engine Oil Upper / From: NA005461	-	1	Enquire
6675B	LR154778	PAN - ENGINE OIL	LR154778 PAN - ENGINE OIL Lower	-	1	Enquire
6730	LR073675	PLUG - OIL DRAIN	LR073675 PLUG - OIL DRAIN M14 X 21	-	1	Enquire
6754	LR154773	TUBE - OIL EXTRACTION	LR154773 TUBE - OIL EXTRACTION 3.0L AJ20P6 Petrol High	-	1	Enquire
6754	LR165000	TUBE - OIL LEVEL INDICATOR	LR165000 TUBE - OIL LEVEL INDICATOR 3.0L AJ20P6 Petrol PHEV / From: PA000001	-	1	Enquire
67540	LR156868	TUBE - OIL EXTRACTION	LR156868 TUBE - OIL EXTRACTION	-	1	Enquire
