Name: Inlet Manifold (3.0L AJ20P6 Petrol High, 3.0L AJ20P6 Petrol PHEV)
Rating: 5.0 (1 reviews)

View All

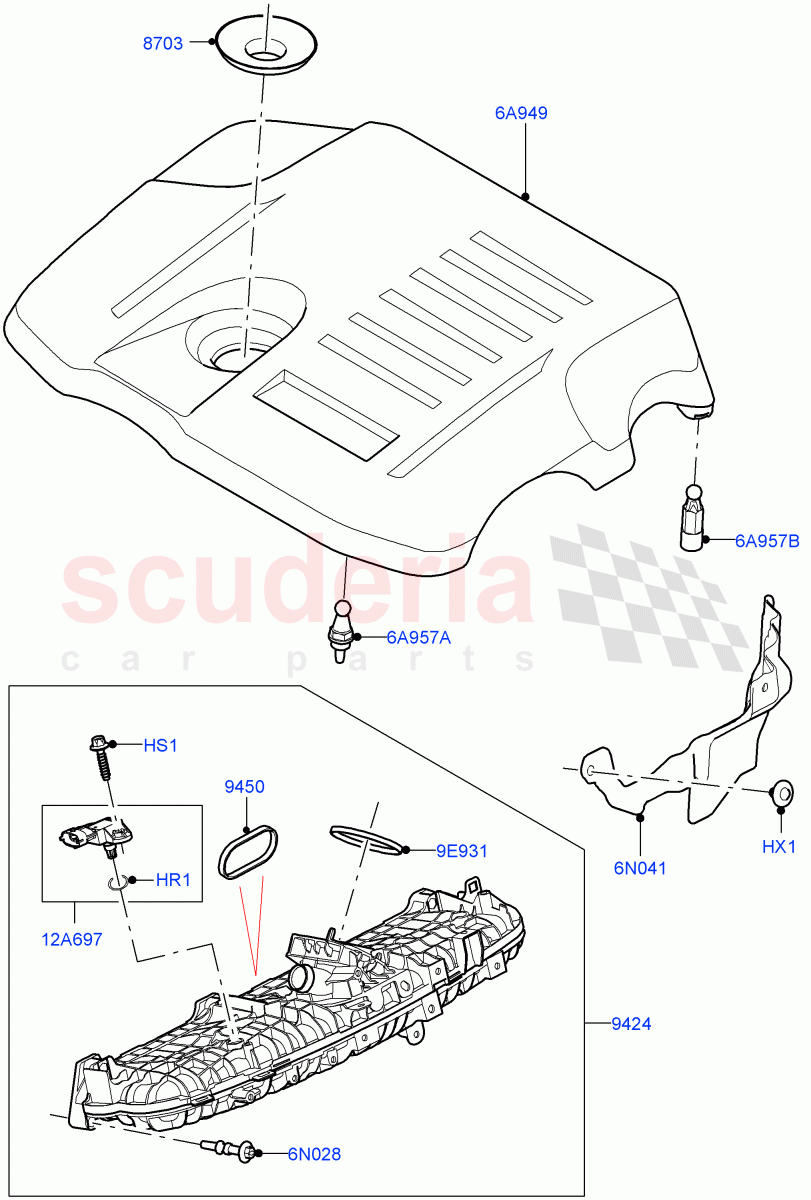

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR095783	O-RING	$4.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYP500810	SCREW	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126160	PIN - FASTENING	$0.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR125867	OIL SPILL GAITER	$12.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121255	MANIFOLD - INLET	$913.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091766	GASKET - INTAKE MANIFOLD	$11.79	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR121736	COVER - ENGINE TOP	$290.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074085	BOLT - SPECIAL	$4.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139515	INSULATOR - CYLINDER HEAD	$62.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074073	GASKET - THROTTLE	$15.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122989	SENSOR - AIR TEMPERATURE & PRESSURE	$48.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151707	STUD - BALL	$6.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121740	STUD - BALL	$7.00	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR095783	O-RING IN STOCK	LR095783 O-RING 7.5MM, MAP Sensor IN STOCK	$4.47	1
HS1	RYP500810	SCREW	RYP500810 SCREW Hexagonal Head, M5 x 20MM, MAP Sensor	$0.59	1
HX1	LR126160	PIN - FASTENING IN STOCK	LR126160 PIN - FASTENING 6.5 x 6 IN STOCK	$0.55	2
6A949	LR121736	COVER - ENGINE TOP	LR121736 COVER - ENGINE TOP Engine	$290.11	1
6A957A	LR151707	STUD - BALL	LR151707 STUD - BALL RH Rear	$6.77	1
6A957B	LR121740	STUD - BALL	LR121740 STUD - BALL LH Rear	$7.00	1
6N028	LR074085	BOLT - SPECIAL	LR074085 BOLT - SPECIAL M6 x 42MM, Manifold To Cylinder Head	$4.84	9
6N041	LR139515	INSULATOR - CYLINDER HEAD	LR139515 INSULATOR - CYLINDER HEAD LH Side	$62.37	1
9E931	LR074073	GASKET - THROTTLE	LR074073 GASKET - THROTTLE Throttle Body To Intake	$15.25	1
12A697	LR122989	SENSOR - AIR TEMPERATURE & PRESSURE	LR122989 SENSOR - AIR TEMPERATURE & PRESSURE Pressure	$48.11	1
8703	LR125867	OIL SPILL GAITER	LR125867 OIL SPILL GAITER Oil Spill	$12.52	1
9424	LR121255	MANIFOLD - INLET	LR121255 MANIFOLD - INLET	$913.72	1
9450	LR091766	GASKET - INTAKE MANIFOLD IN STOCK	LR091766 GASKET - INTAKE MANIFOLD Inlet Manifold IN STOCK	$11.79	6

Inlet Manifold (3.0L Aj20P6 Petrol High, 3.0L Aj20P6 Petrol Phev)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6]
