Pulleys And Drive Belts (3.0L Aj20P6 Petrol High)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] - Pulleys And Drive Belts (3.0L AJ20P6 Petrol High)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR085468 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FS108256 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR074131 PIN - RETAINING Enquire To Order
Photo Part No Description Price (each) Stock
FS108186 SCREW - SOCKET HEAD CAP Enquire To Order
Photo Part No Description Price (each) Stock
LR128566 PULLEY - CRANKSHAFT Enquire To Order
Photo Part No Description Price (each) Stock
LR123071 PULLEY - WATER PUMP Enquire To Order
Photo Part No Description Price (each) Stock
LR121781 V-BELT Enquire To Order
Photo Part No Description Price (each) Stock
LR161768 TENSIONER Enquire To Order
Photo Part No Description Price (each) Stock
LR146863 IDLER - DRIVE BELT Enquire To Order
View All

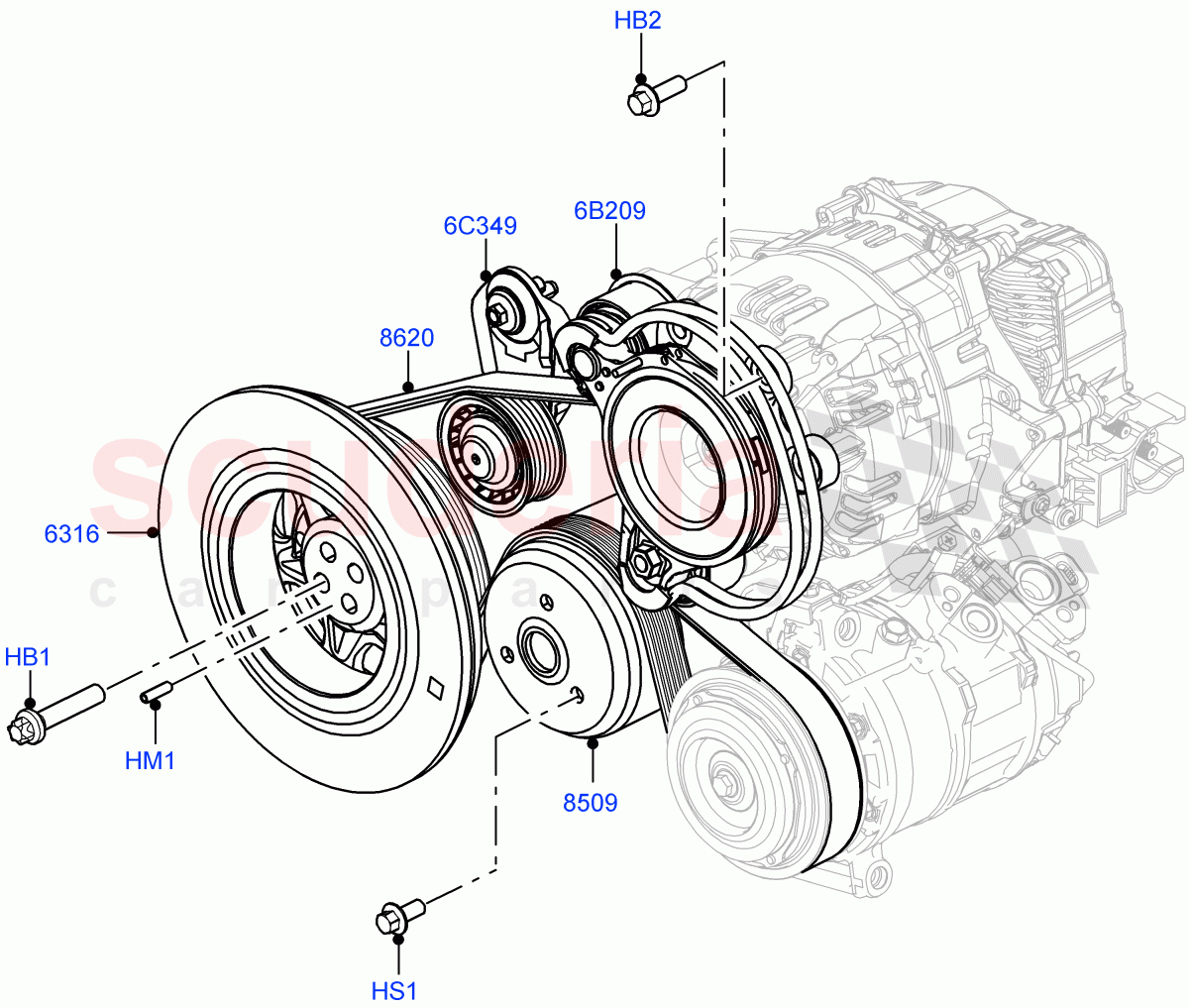

Pulleys And Drive Belts (3.0L AJ20P6 Petrol High) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR085468
BOLT
M10 x 48MM 		- 4 Enquire
HB2 FS108256
BOLT
Hexagonal Head, M8 X 25MM 		- 3 Enquire
HM1 LR074131
PIN - RETAINING 		- 1 Enquire
HS1 FS108186
SCREW - SOCKET HEAD CAP
M8 x 18MM, Pulley, Water Pump 		- 3 Enquire
6B209 LR161768
TENSIONER 		- 1 Enquire
6C349 LR146863
IDLER - DRIVE BELT 		- 1 Enquire
6316 LR128566
PULLEY - CRANKSHAFT 		- 1 Enquire
8509 LR123071
PULLEY - WATER PUMP 		- 1 Enquire
8620 LR121781
V-BELT
Belt Integrated Starter Generator 		- 1 Enquire
