Name: Rear Seat Belts (With Third Row Power Folding Seat)
Rating: 4.6 (1 reviews)

Rear Seat Belts (With Third Row Power Folding Seat) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Rear Seat Belts (With Third Row Power Folding Seat)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR048327	SCREW	$3.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053817	SCREW	$2.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161033	BUCKLE - SEAT BELT	$96.98	To Order
	LR161032	BUCKLE - SEAT BELT	$96.98	To Order
	LR161034	BUCKLE - SEAT BELT	$96.98	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR160912	SEAT BELT AND RETRACTOR	$217.19	To Order
	LR160913	SEAT BELT AND RETRACTOR	$217.19	To Order
	LR160914	SEAT BELT AND RETRACTOR	$217.19	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR152671	BRACKET - SEAT BELT RETAINER	$64.75	To Order
	LR152670	BRACKET - SEAT BELT RETAINER	$64.75	To Order

View All

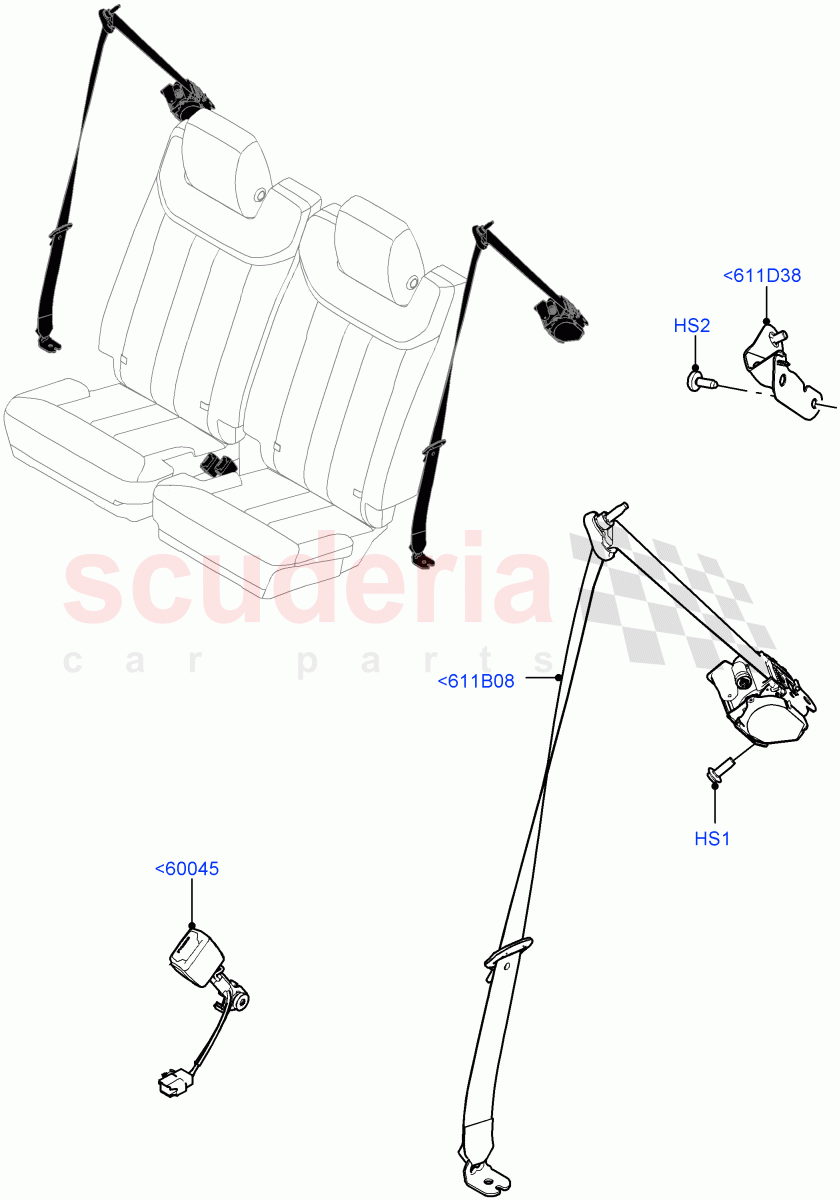

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<611B08	LR160912	SEAT BELT AND RETRACTOR	LR160912 SEAT BELT AND RETRACTOR Seatbelt - Caraway, Seatbelt Lock Retraction-Automatic / RH	$217.19	1
<611B08	LR160913	SEAT BELT AND RETRACTOR	LR160913 SEAT BELT AND RETRACTOR Seatbelt - Ebony, Seatbelt - Electric NAS / RH	$217.19	1
<611B08	LR160914	SEAT BELT AND RETRACTOR	LR160914 SEAT BELT AND RETRACTOR Seatbelt - Perlino, Seatbelt Lock Retraction-Automatic / RH	$217.19	1
<611B08	LR160909	SEAT BELT	LR160909 SEAT BELT Seatbelt - Caraway, Seatbelt Lock Retract-Electric EU / RH	$217.19	1
<611B08	LR160910	SEAT BELT AND RETRACTOR	LR160910 SEAT BELT AND RETRACTOR Seatbelt - Ebony, Seatbelt Lock Retract-Electric EU / RH	$217.19	1
<611B08	LR160911	SEAT BELT AND RETRACTOR	LR160911 SEAT BELT AND RETRACTOR Seatbelt - Perlino, StBlt ELR Without Rear Pretensioner / RH	$217.19	1
<611B08	LR160906	SEAT BELT AND RETRACTOR	LR160906 SEAT BELT AND RETRACTOR Seatbelt - Caraway, Seatbelt Lock Retraction-Automatic / LH	$217.19	1
<611B08	LR160907	SEAT BELT AND RETRACTOR	LR160907 SEAT BELT AND RETRACTOR Seatbelt - Ebony, Seatbelt - Electric NAS / LH	$217.19	1
<611B08	LR160908	SEAT BELT AND RETRACTOR	LR160908 SEAT BELT AND RETRACTOR Seatbelt - Perlino, Seatbelt Lock Retraction-Automatic / LH	$217.19	1
<611B08	LR160901	SEAT BELT AND RETRACTOR	LR160901 SEAT BELT AND RETRACTOR Seatbelt - Caraway, StBlt ELR Without Rear Pretensioner / LH	$217.19	1
<611B08	LR160902	SEAT BELT AND RETRACTOR	LR160902 SEAT BELT AND RETRACTOR Seatbelt - Ebony, Seatbelt - Electric ROW / LH	$217.19	1
<611B08	LR160903	SEAT BELT AND RETRACTOR	LR160903 SEAT BELT AND RETRACTOR Seatbelt - Perlino, StBlt ELR Without Rear Pretensioner / LH	$217.19	1
<611D38	LR152671	BRACKET - SEAT BELT RETAINER	LR152671 BRACKET - SEAT BELT RETAINER RH	$64.75	1
<611D38	LR152670	BRACKET - SEAT BELT RETAINER	LR152670 BRACKET - SEAT BELT RETAINER LH	$64.75	1
<60045	LR161033	BUCKLE - SEAT BELT	LR161033 BUCKLE - SEAT BELT Less Illuminated Seat Belt Buckle / RH	$96.98	1
<60045	LR161032	BUCKLE - SEAT BELT	LR161032 BUCKLE - SEAT BELT Illuminated Seat Belt Buckle / RH	$96.98	1
<60045	LR161034	BUCKLE - SEAT BELT	LR161034 BUCKLE - SEAT BELT Less Illuminated Seat Belt Buckle / LH	$96.98	1
<60045	LR161035	BUCKLE - SEAT BELT	LR161035 BUCKLE - SEAT BELT Illuminated Seat Belt Buckle / LH	$96.98	1
HS1	LR048327	SCREW	LR048327 SCREW M10 X 28MM	$3.24	2
HS2	LR053817	SCREW	LR053817 SCREW M10 X 25MM, Torx	$2.03	4
