Name: Front Exhaust System (3.0L AJ20D6 Diesel High, L7 Emission - Brazil, Stage V Plus DPF, EU6D - Final (Diesel) Emission)
Rating: 5.0 (1 reviews)

Front Exhaust System (3.0L AJ20D6 Diesel High, L7 Emission - Brazil, Stage V Plus DPF, EU6D - Final (Diesel) Emission) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Front Exhaust System (3.0L AJ20D6 Diesel High, L7 Emission - Brazil, Stage V Plus DPF, EU6D - Final...

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108256	BOLT	$3.62	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR138364	BOLT	$4.47	To Order

Photo	Part No	Description	Price (each)	Stock
	FS110256	BOLT - FLANGED HEX.	$1.81	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500370	NUT AND WASHER - HEX.	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500350	NUT - SPECIAL	$0.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082730	STUD	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138362	BRACKET	$20.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135801	BRACKET - EXHAUST PIPE MOUNTING	$38.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135802	INSULATOR - RUBBER	$23.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125287	CLAMP - EXHAUST	$37.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125286	GASKET - EXHAUST PIPE	$28.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154038	CONVERTER	$1,083.85	To Order
	LR152484	PIPE - EXHAUST - FRONT	$2,023.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR148894	FILTER - DIESEL PARTICLE	$3,346.17	To Order
	LR125284	FILTER - DIESEL PARTICLE	$2,902.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135804	GASKET - TURBOCHARGER	$12.72	To Order

View All

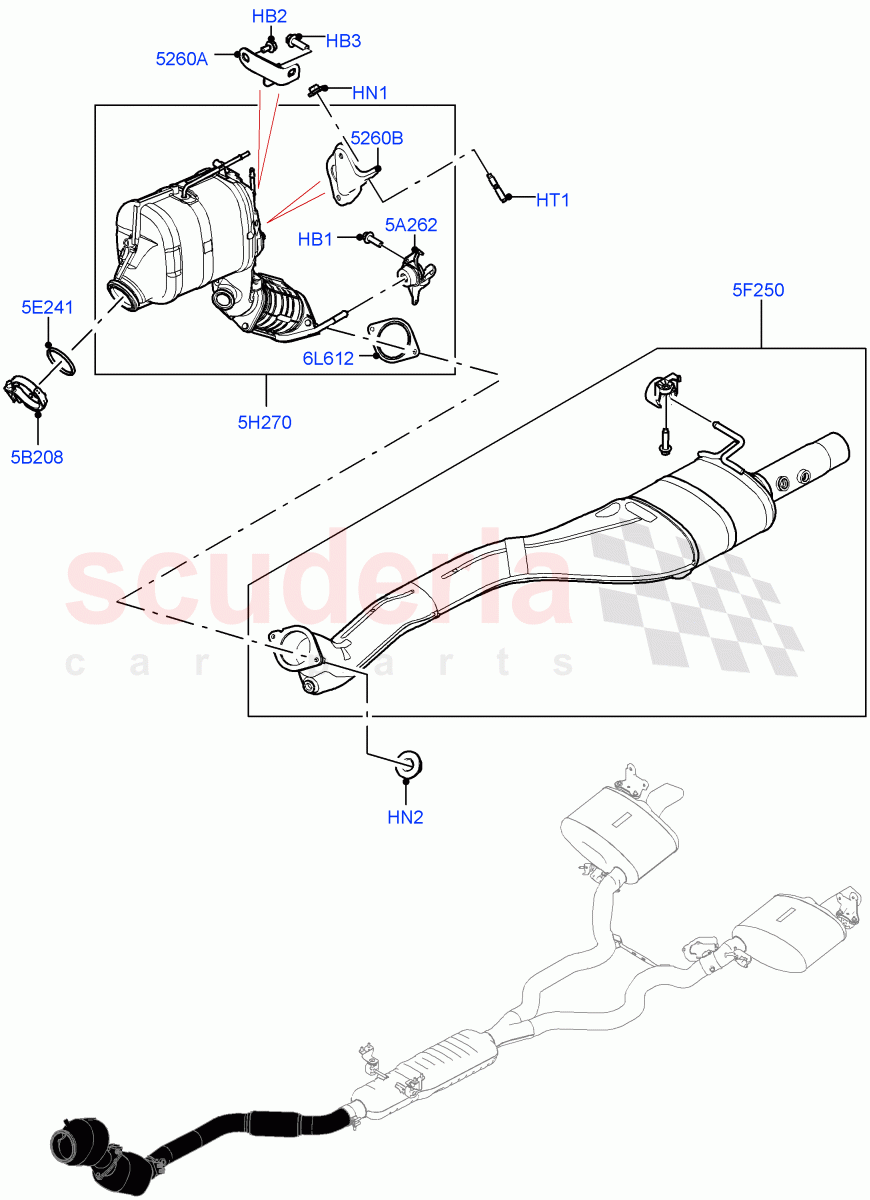

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108256	BOLT IN STOCK	FS108256 BOLT Hexagonal Head, M8 X 25MM IN STOCK	$3.62	1
HB2	LR138364	BOLT	LR138364 BOLT M8 X 16, To Upper Bracket	$4.47	1
HB3	FS110256	BOLT - FLANGED HEX.	FS110256 BOLT - FLANGED HEX. M10 X 25MM, To Upper Bracket	$1.81	1
HN1	RYH500370	NUT AND WASHER - HEX.	RYH500370 NUT AND WASHER - HEX. M8 Hex, Nut And Washer	$0.63	2
HN2	RYH500350	NUT - SPECIAL	RYH500350 NUT - SPECIAL Exhaust pipe, M8	$0.51	2
HT1	LR082730	STUD	LR082730 STUD M8 X 21.5MM + M8 X 22MM	$1.97	2
5A262	LR135802	INSULATOR - RUBBER	LR135802 INSULATOR - RUBBER Front	$23.35	1
5B208	LR125287	CLAMP - EXHAUST	LR125287 CLAMP - EXHAUST Turbocharger Outlet	$37.09	1
5E241	LR125286	GASKET - EXHAUST PIPE	LR125286 GASKET - EXHAUST PIPE Turbocharger Outlet	$28.70	1
5F250	LR154038	CONVERTER	LR154038 CONVERTER Stage V Plus DPF	$1,083.85	1
5F250	LR152484	PIPE - EXHAUST - FRONT	LR152484 PIPE - EXHAUST - FRONT EU6D - Final (Diesel) Emission	$2,023.62	1
5H270	LR148894	FILTER - DIESEL PARTICLE	LR148894 FILTER - DIESEL PARTICLE Stage V Plus DPF	$3,346.17	1
5H270	LR125284	FILTER - DIESEL PARTICLE	LR125284 FILTER - DIESEL PARTICLE L7 Emission - Brazil	$2,902.30	1
6L612	LR135804	GASKET - TURBOCHARGER	LR135804 GASKET - TURBOCHARGER Outlet	$12.72	1
5260A	LR138362	BRACKET	LR138362 BRACKET Upper	$20.81	1
5260B	LR135801	BRACKET - EXHAUST PIPE MOUNTING	LR135801 BRACKET - EXHAUST PIPE MOUNTING Lower	$38.87	1
