Oil Pan/Oil Level Indicator (3.0L Aj20D6 Diesel High)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Oil Pan/Oil Level Indicator (3.0L AJ20D6 Diesel High)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR133629 BOLT $1.39 To Order
Photo Part No Description Price (each) Stock
LR154784 BOLT $5.32 To Order
Photo Part No Description Price (each) Stock
RZM500070 PIN - SPECIAL $1.07 IN STOCK
Photo Part No Description Price (each) Stock
LR073637 DOWEL - PIN $2.36 To Order
Photo Part No Description Price (each) Stock
LR074127 O-RING $4.96 To Order
Photo Part No Description Price (each) Stock
LR073676 SCREW $2.26 To Order
Photo Part No Description Price (each) Stock
LR073677 SCREW $3.30 To Order
Photo Part No Description Price (each) Stock
LR154785 SCREW $2.15 To Order
Photo Part No Description Price (each) Stock
LR071842 SCREW AND WASHER - HEX HEAD $1.28 To Order
Photo Part No Description Price (each) Stock
LR071774 SCREW $2.23 To Order
Photo Part No Description Price (each) Stock
LR073635 SCREW $2.20 To Order
Photo Part No Description Price (each) Stock
LR108591 BOLT $1.01 To Order
Photo Part No Description Price (each) Stock
LR089234 STUD $4.86 To Order
Photo Part No Description Price (each) Stock
LR073675 PLUG - OIL DRAIN $7.90 IN STOCK
Photo Part No Description Price (each) Stock
LR157081 TUBE - OIL LEVEL INDICATOR $54.74 To Order
Photo Part No Description Price (each) Stock
LR154780 PAN - ENGINE OIL $1,012.86 To Order
LR174655 Pan - Engine Oil $1,012.86 To Order
Photo Part No Description Price (each) Stock
LR154778 PAN - ENGINE OIL $385.28 To Order
Photo Part No Description Price (each) Stock
LR156868 TUBE - OIL EXTRACTION $56.03 To Order
Photo Part No Description Price (each) Stock
LR132045 TRAY - OIL $260.30 To Order
Photo Part No Description Price (each) Stock
LR152045 INSULATOR - OIL SUMP $94.36 To Order
Photo Part No Description Price (each) Stock
LR057802 DOWEL - PIN $3.36 IN STOCK
View All

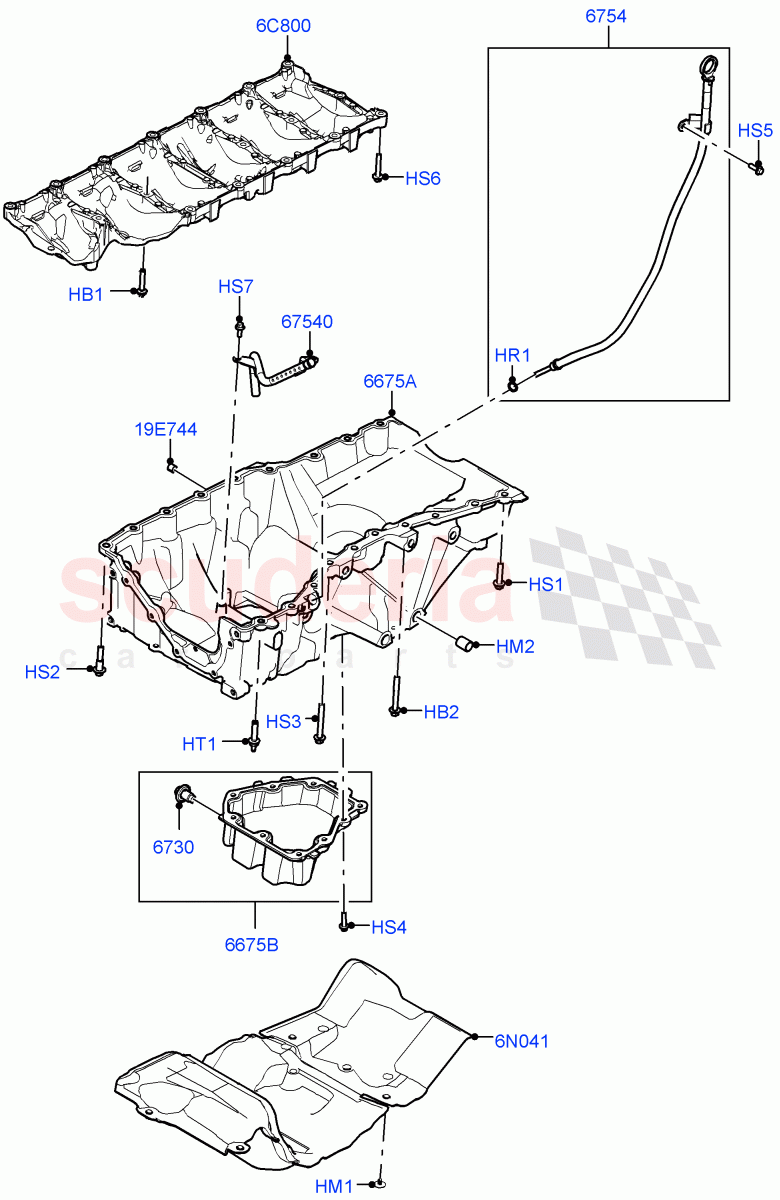

Oil Pan/Oil Level Indicator (3.0L AJ20D6 Diesel High) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR133629
BOLT
M6 x 35MM, Middle, Windage Tray 		$1.39 5
HB2 LR154784
BOLT
M8 x 50MM 		$5.32 1
HM1 RZM500070
PIN - SPECIAL
6.4 X 20.4, Insulator, Push Pin
IN STOCK 		$1.07 4
HM2 LR073637
DOWEL - PIN
16.5 x 20, Pin - Dowell 		$2.36 1
HR1 LR074127
O-RING
11.5 x 2 mm, Tube Indicator 		$4.96 1
HS1 LR073676
SCREW
M8 x 35mm 		$2.26 9
HS2 LR073677
SCREW
M8 x 42mm 		$3.30 2
HS3 LR154785
SCREW
M8 X 45MM 		$2.15 1
HS4 LR071842
SCREW AND WASHER - HEX HEAD
Hexagonal Head, M6 X 25MM 		$1.28 10
HS5 LR071774
SCREW
Hexagonal Head, M6 X 20MM, Oil Level Indicator 		$2.23 1
HS6 LR073635
SCREW
M6 x 35MM, Windage Tray 		$2.20 12
HS7 LR108591
BOLT
M6 X 16MM, Tube - Oil Extraction 		$1.01 2
HT1 LR089234
STUD
M8 X 35 + M6 X 12 		$4.86 1
6C800 LR132045
TRAY - OIL 		$260.30 1
6N041 LR152045
INSULATOR - OIL SUMP
Oil Pan 		$94.36 1
19E744 LR057802
DOWEL - PIN
IN STOCK 		$3.36 2
6675A LR154780
PAN - ENGINE OIL
Upper / To: NA005460 		$1,012.86 1
6675A LR174655
Pan - Engine Oil
Upper / From: NA005461 		$1,012.86 1
6675B LR154778
PAN - ENGINE OIL
Lower 		$385.28 1
6730 LR073675
PLUG - OIL DRAIN
M14 X 21
IN STOCK 		$7.90 1
6754 LR157081
TUBE - OIL LEVEL INDICATOR 		$54.74 1
67540 LR156868
TUBE - OIL EXTRACTION 		$56.03 1
