Name: Timing Gear Covers (3.0L AJ20D6 Diesel High)
Rating: 5.0 (1 reviews)

Timing Gear Covers (3.0L AJ20D6 Diesel High) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Timing Gear Covers (3.0L AJ20D6 Diesel High)

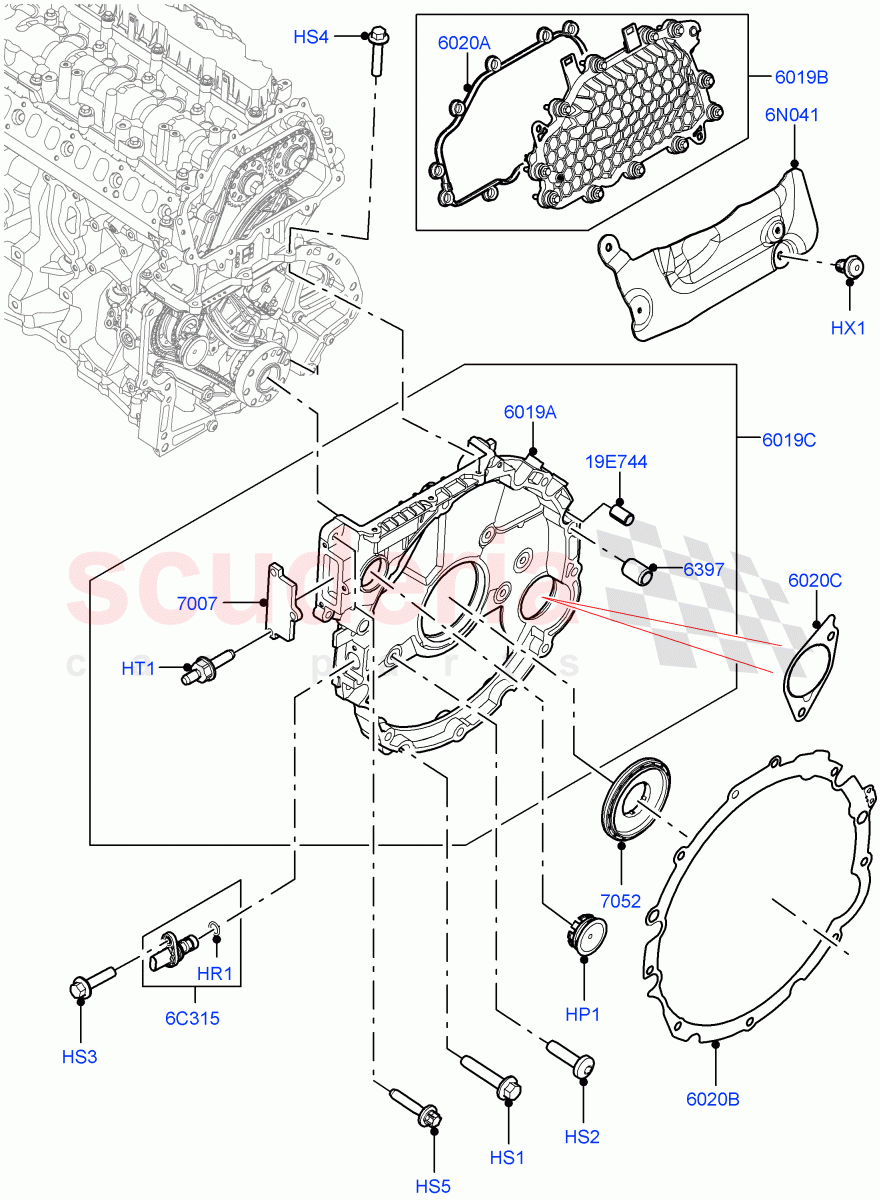

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR128702	PLUG - ENGINE	$15.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095782	O-RING	$4.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073676	SCREW	$2.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073786	SCREW	$2.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	$1.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073648	SCREW	$2.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR158170	SCREW	$1.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR089197	STUD	$3.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071767	RIVET - PLASTIC	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	4603182	DOWEL	$27.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125622	PLATE - BLANKING	$65.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122697	SEAL - CRANKSHAFT OIL - REAR	$49.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157791	PLATE - CYLINDER BLOCK REAR	$711.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125593	COVER - CYLINDER HEAD	$133.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR162144	RETAINER - CRANKSHAFT OIL SEAL	$263.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125594	GASKET - COVER	$37.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123925	SEAL - TRANSMISSION	$73.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123926	SEAL - STARTER MOTOR	$28.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126181	SENSOR - CRANKSHAFT POSITION - CPS	$143.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152029	INSULATOR - CYLINDER HEAD	$57.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057802	DOWEL - PIN	$3.36	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HP1	LR128702	PLUG - ENGINE	LR128702 PLUG - ENGINE Includes O-Ring	$15.32	1
HR1	LR095782	O-RING IN STOCK	LR095782 O-RING 17.0MM, Crankshaft Position Sensor(CKP) IN STOCK	$4.61	1
HS1	LR073676	SCREW	LR073676 SCREW M8 x 35mm	$2.26	9
HS2	LR073786	SCREW	LR073786 SCREW M8 X 30MM	$2.15	4
HS3	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Crankshaft Position Sensor(CKP), Hexagonal Head, M6 X 25MM	$1.28	1
HS4	LR073648	SCREW IN STOCK	LR073648 SCREW Hexagonal Head, M6 x 30MM IN STOCK	$2.55	3
HS5	LR158170	SCREW	LR158170 SCREW M8 x 40MM	$1.69	1
HT1	LR089197	STUD	LR089197 STUD M6 x 22 mm + M6 x 12 mm	$3.82	3
HX1	LR071767	RIVET - PLASTIC	LR071767 RIVET - PLASTIC 7.8-9.1 x 4.5-10.5, Insulator	$2.92	2
6C315	LR126181	SENSOR - CRANKSHAFT POSITION - CPS	LR126181 SENSOR - CRANKSHAFT POSITION - CPS	$143.40	1
6N041	LR152029	INSULATOR - CYLINDER HEAD	LR152029 INSULATOR - CYLINDER HEAD Timing Chain Cover, Upper	$57.93	1
19E744	LR057802	DOWEL - PIN IN STOCK	LR057802 DOWEL - PIN IN STOCK	$3.36	2
6019A	LR157791	PLATE - CYLINDER BLOCK REAR	LR157791 PLATE - CYLINDER BLOCK REAR Lower, Timing Chain Cover	$711.47	1
6019B	LR125593	COVER - CYLINDER HEAD	LR125593 COVER - CYLINDER HEAD Timing Chain Cover, Upper, With Fixing Parts	$133.39	1
6019C	LR162144	RETAINER - CRANKSHAFT OIL SEAL	LR162144 RETAINER - CRANKSHAFT OIL SEAL Assembly, Lower, Timing Chain Cover	$263.56	1
6020A	LR125594	GASKET - COVER	LR125594 GASKET - COVER Timing Chain Cover, Upper	$37.51	1
6020B	LR123925	SEAL - TRANSMISSION	LR123925 SEAL - TRANSMISSION Transmission To Engine	$73.21	1
6020C	LR123926	SEAL - STARTER MOTOR	LR123926 SEAL - STARTER MOTOR Starter Motor	$28.57	1
6397	4603182	DOWEL	4603182 DOWEL 15.7MM, Pin - Dowell	$27.62	2
7007	LR125622	PLATE - BLANKING	LR125622 PLATE - BLANKING Access Hole Cover, With Gasket	$65.14	1
7052	LR122697	SEAL - CRANKSHAFT OIL - REAR	LR122697 SEAL - CRANKSHAFT OIL - REAR Crankshaft Oil Seal, Rear	$49.35	1

Timing Gear Covers (3.0L Aj20D6 Diesel High)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Timing Gear Covers (3.0L AJ20D6 Diesel High)
