Name: Cooling System Pipes And Hoses (3.0L AJ20D6 Diesel High, With Standard Engine Cooling System)
Rating: 5.0 (1 reviews)

Cooling System Pipes And Hoses (3.0L AJ20D6 Diesel High, With Standard Engine Cooling System) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Cooling System Pipes And Hoses (3.0L AJ20D6 Diesel High, With Standard Engine Cooling System)

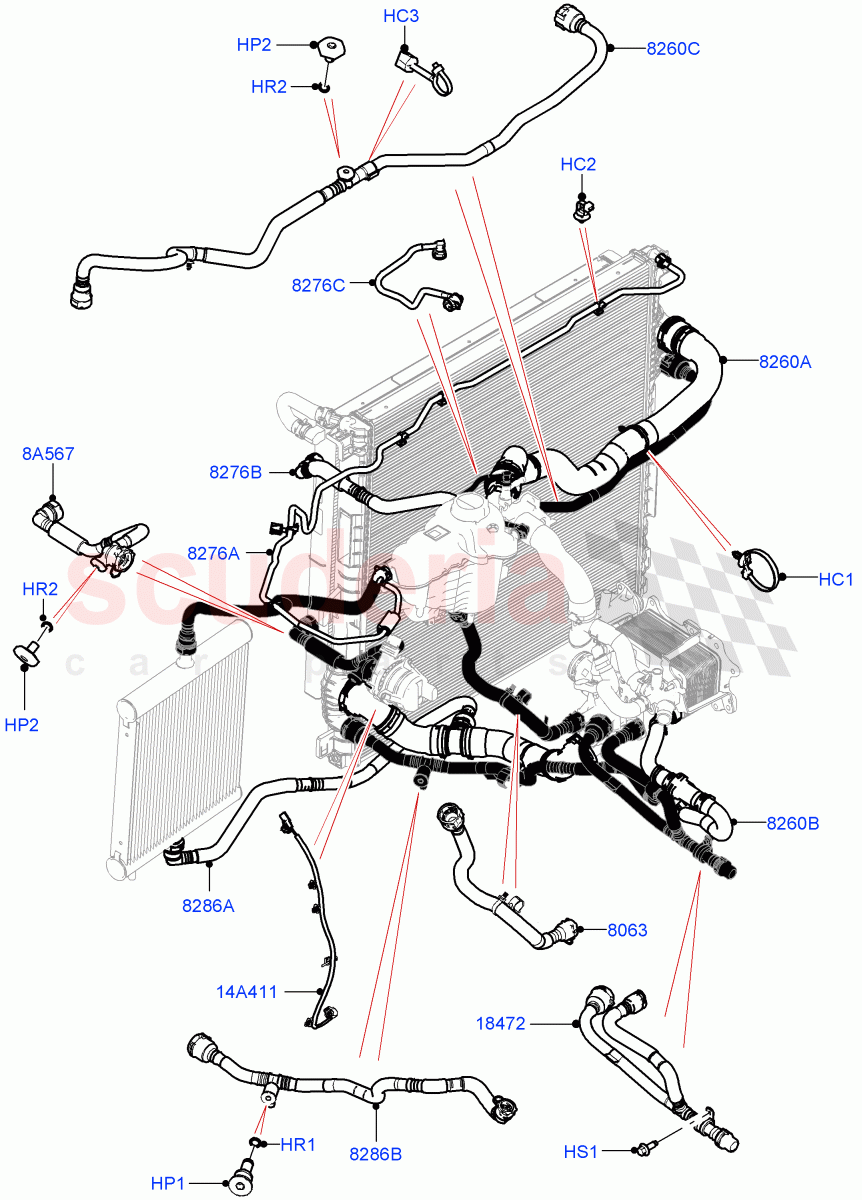

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR175780	Clip	$1.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR175782	Clip	$0.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR175775	Clip	$3.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR175726	Plug	$6.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR175725	Plug	$20.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR175790	O-Ring	$1.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR175788	O-Ring	$0.80	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500160	SCREW	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151572	HOSE - WATER	$42.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151527	TUBE - HEATER WATER	$82.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152527	HOSE - RADIATOR	$93.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151559	HOSE - COOLING SYSTEM	$103.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151713	HOSE - WATER	$100.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151607	HOSE - WATER	$93.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151676	HOSE - WATER	$66.16	To Order
	LR174696	Hose - Water	$63.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151639	HOSE - COOLANT BLEED	$47.95	To Order

Photo	Part No	Description	Price (each)	Stock
	104123478	HOSE	$186.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151697	HOSE - RADIATOR	$74.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151663	HOSE - WATER	$77.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159226	WIRING - TRACTION BATTERY	$78.01	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR175780	Clip	LR175780 Clip	$1.01	2
HC2	LR175782	Clip	LR175782 Clip Single	$0.96	3
HC3	LR175775	Clip	LR175775 Clip Auxiliary Radiator, To Top Hose	$3.88	1
HP1	LR175726	Plug	LR175726 Plug LH, Attaches To Bottom Of Radiator, Hose	$6.89	1
HP2	LR175725	Plug	LR175725 Plug Hose, Inlet, Plastic, Water Pump	$20.65	1
HR1	LR175790	O-Ring	LR175790 O-Ring Sealing Ring, Water Outlet	$1.59	1
HR2	LR175788	O-Ring	LR175788 O-Ring Plug, Sealing Ring	$0.80	2
HS1	RYG500160	SCREW	RYG500160 SCREW Hexagonal Head, M6 X 14MM	$0.59	1
8A567	LR151663	HOSE - WATER	LR151663 HOSE - WATER Inlet, Water Pump	$77.69	1
14A411	LR159226	WIRING - TRACTION BATTERY	LR159226 WIRING - TRACTION BATTERY	$78.01	1
8063	LR151572	HOSE - WATER	LR151572 HOSE - WATER Expansion Reservoir To Thermostat	$42.74	1
8260A	LR152527	HOSE - RADIATOR	LR152527 HOSE - RADIATOR Top	$93.47	1
8260B	LR151559	HOSE - COOLING SYSTEM	LR151559 HOSE - COOLING SYSTEM Oil Cooler Hose	$103.64	1
8260C	LR151713	HOSE - WATER	LR151713 HOSE - WATER Auxiliary Radiator, Top	$100.98	1
8276A	LR151607	HOSE - WATER	LR151607 HOSE - WATER Radiator To Expansion Tank Bleed	$93.12	1
8276B	LR151676	HOSE - WATER	LR151676 HOSE - WATER Intercooler Outlet / To: NA999999	$66.16	1
8276B	LR174696	Hose - Water	LR174696 Hose - Water Intercooler Outlet / From: PA000001	$63.24	1
8276C	LR151639	HOSE - COOLANT BLEED	LR151639 HOSE - COOLANT BLEED To Expansion Tank	$47.95	1
8286A	104123478	HOSE	104123478 HOSE Bottom	$186.42	1
8286B	LR151697	HOSE - RADIATOR	LR151697 HOSE - RADIATOR LH, Attaches To Bottom Of Radiator	$74.61	1
18472	LR151527	TUBE - HEATER WATER	LR151527 TUBE - HEATER WATER To Thermostat	$82.28	1
