Cylinder Block And Plugs (3.0L Aj20D6 Diesel High)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Cylinder Block And Plugs (3.0L AJ20D6 Diesel High)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR073637 DOWEL - PIN $2.36 To Order
Photo Part No Description Price (each) Stock
LR163109 PLUG - ENGINE $6.59 To Order
Photo Part No Description Price (each) Stock
LR163197 PLUG - ENGINE $10.14 To Order
Photo Part No Description Price (each) Stock
LR163195 PLUG - ENGINE $10.79 To Order
Photo Part No Description Price (each) Stock
LR166358 O-RING $6.56 To Order
Photo Part No Description Price (each) Stock
LR170968 O-RING $4.35 IN STOCK
Photo Part No Description Price (each) Stock
LR073666 SCREW $1.36 To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.54 IN STOCK
LR073655 SCREW $1.54 IN STOCK
Photo Part No Description Price (each) Stock
LR126158 SCREW $4.65 To Order
Photo Part No Description Price (each) Stock
LR163208 WASHER - SEALING $3.35 To Order
Photo Part No Description Price (each) Stock
LR126160 PIN - FASTENING $0.55 IN STOCK
Photo Part No Description Price (each) Stock
LR138831 COVER - CYLINDER FRONT $118.22 To Order
Photo Part No Description Price (each) Stock
LR135718 SWITCH - OIL PRESSURE $58.48 To Order
Photo Part No Description Price (each) Stock
LR153976 VALVE - PISTON OIL COOLNG $166.29 To Order
Photo Part No Description Price (each) Stock
LR155114 SENSOR - CYLINDER HEAD TEMPERATURE $60.60 To Order
Photo Part No Description Price (each) Stock
LR121757 SEAL - CRANKSHAFT OIL - FRONT $64.72 To Order
Photo Part No Description Price (each) Stock
LR121240 PLUG - INSPECTION OPENING $40.68 To Order
Photo Part No Description Price (each) Stock
LR121354 TUBE - VACUUM $51.04 To Order
Photo Part No Description Price (each) Stock
LR057802 DOWEL - PIN $3.36 IN STOCK
Photo Part No Description Price (each) Stock
LR125311 COVER - INSULATOR $60.77 To Order
Photo Part No Description Price (each) Stock
LR125601 INSULATOR PAD - CYLINDER BLOCK $121.17 To Order
Photo Part No Description Price (each) Stock
LR125312 INSULATOR - ENGINE COMPARTMENT $66.59 To Order
View All

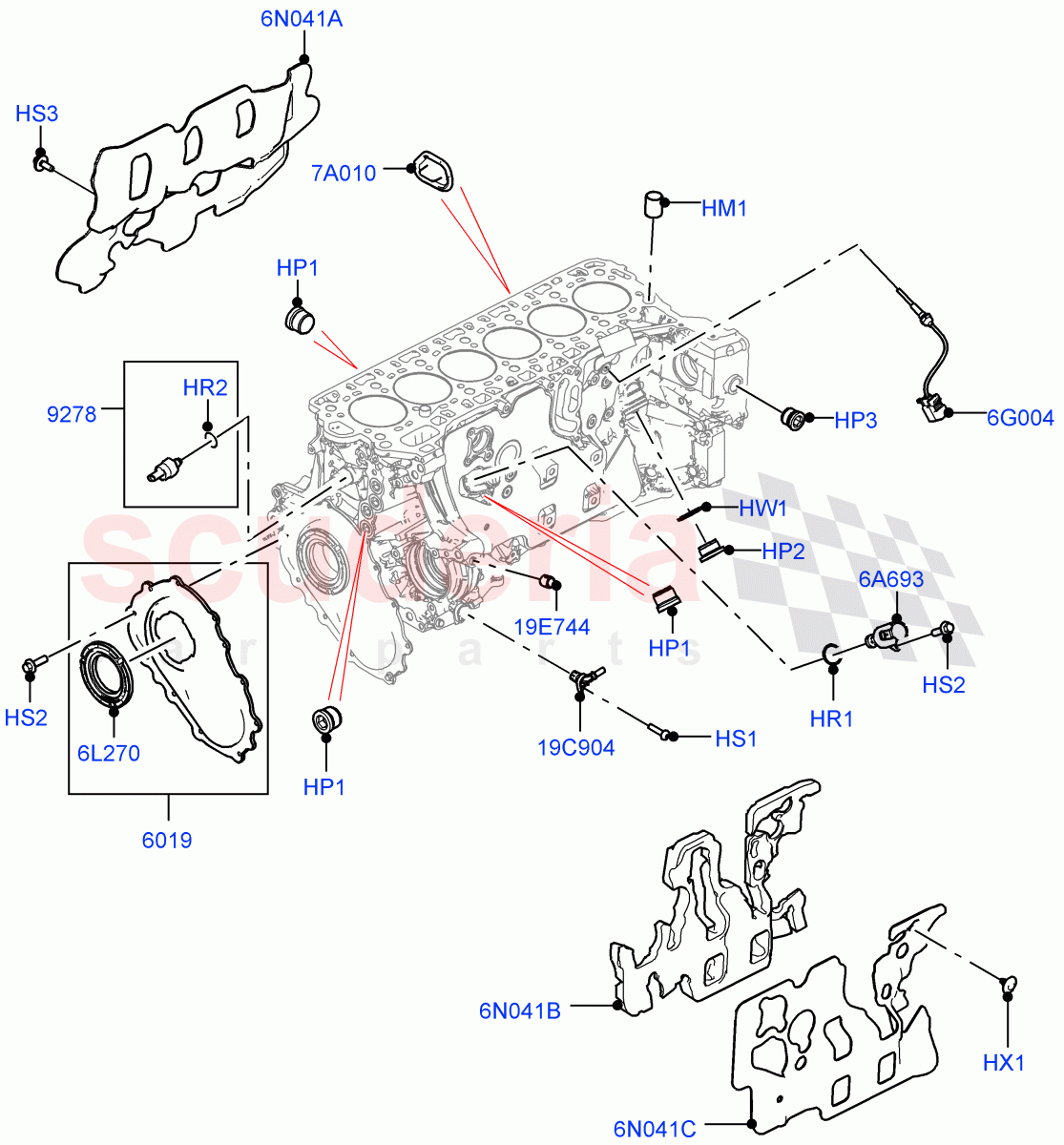

Cylinder Block And Plugs (3.0L AJ20D6 Diesel High) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HM1 LR073637
DOWEL - PIN
16.5 x 20, Pin - Dowell 		$2.36 2
HP1 LR163109
PLUG - ENGINE
M22x1.5 x 13 mm 		$6.59 6
HP2 LR163197
PLUG - ENGINE
M30 x 12 mm 		$10.14 1
HP3 LR163195
PLUG - ENGINE
M18 x 1.5 		$10.79 1
HR1 LR166358
O-RING 		$6.56 1
HR2 LR170968
O-RING
Sensor - Oil Pressure
IN STOCK 		$4.35 1
HS1 LR073666
SCREW
M5 x 20MM, Vacuum Connector 		$1.36 1
HS2 LR073655
SCREW
Cover, Engine Front, Hexagonal Head, M6 X 20MM
IN STOCK 		$1.54 11
HS2 LR073655
SCREW
Hexagonal Head, M6 X 20MM, Valve - piston oil cooling
IN STOCK 		$1.54 1
HS3 LR126158
SCREW
M8 X 25MM 		$4.65 2
HW1 LR163208
WASHER - SEALING
33 x 39.13 x 3.7 		$3.35 1
HX1 LR126160
PIN - FASTENING
6.5 x 6
IN STOCK 		$0.55 2
6A693 LR153976
VALVE - PISTON OIL COOLNG 		$166.29 1
6G004 LR155114
SENSOR - CYLINDER HEAD TEMPERATURE
Temperature 		$60.60 1
6L270 LR121757
SEAL - CRANKSHAFT OIL - FRONT 		$64.72 1
6N041A LR125311
COVER - INSULATOR
RH 		$60.77 1
6N041B LR125601
INSULATOR PAD - CYLINDER BLOCK
LH - Inner 		$121.17 1
6N041C LR125312
INSULATOR - ENGINE COMPARTMENT
LH - Outer 		$66.59 1
7A010 LR121240
PLUG - INSPECTION OPENING
Plug; Converter Inspection Hole In Block 		$40.68 1
19C904 LR121354
TUBE - VACUUM 		$51.04 1
19E744 LR057802
DOWEL - PIN
Air Conditioning Compressor Bracket,
IN STOCK 		$3.36 2
6019 LR138831
COVER - CYLINDER FRONT
Engine Front, Includes Seal 		$118.22 1
9278 LR135718
SWITCH - OIL PRESSURE
Sensor 		$58.48 1
