Front Seat Covers (Oxford Leather Windsor, Heated/Cooled Front - Heated Rear) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Front Seat Covers (Oxford Leather Windsor, Heated/Cooled Front - Heated Rear) ((V) FROMAA000001)

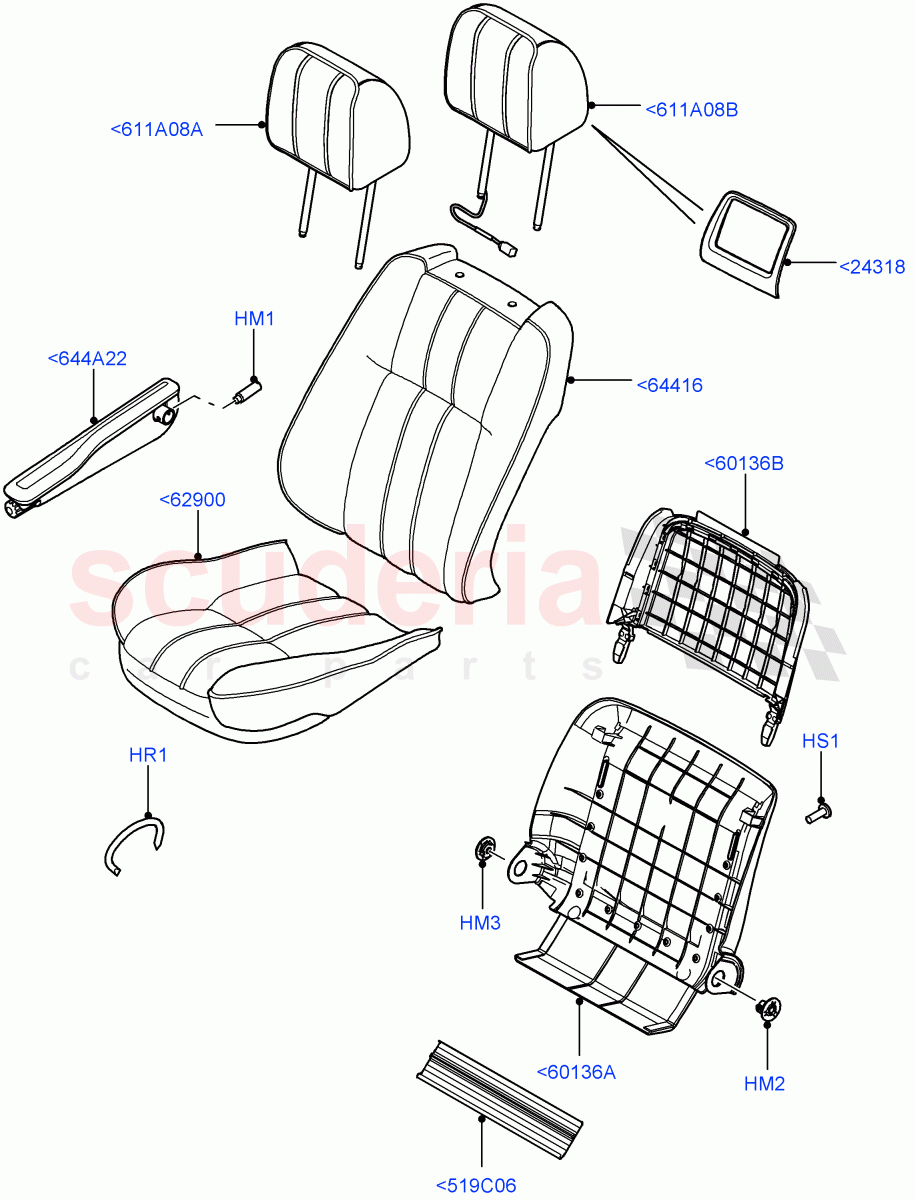

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	HYT000030	PIN - LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HYD500070	MOUNTING - TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HYD500080	MOUNTING - TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HYX000010	RING - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HYP500330	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012076	BEZEL	Enquire	To Order
	HKK500060LER	BEZEL	Enquire	To Order
	HKK500060NUG	BEZEL	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR010897	COVER - SEAT CUSHION	Enquire	To Order
	LR010898	COVER - SEAT CUSHION	Enquire	To Order
	HCA501150JMN	COVER - SEAT CUSHION	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	HBA501580JMN	COVER - SEAT BACK	Enquire	To Order
	HBA501580PVA	COVER - SEAT BACK	Enquire	To Order
	HBA501580SUN	COVER - SEAT BACK	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	HZE500080	COVER - SEAT BACK RETENTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HBR500350LER	COVER AND PAD - FRONT SEAT BACK	Enquire	To Order
	HBR500350NUG	COVER AND PAD - FRONT SEAT BACK	Enquire	To Order
	HBR500350PVA	COVER AND PAD - FRONT SEAT BACK	Enquire	To Order

...and 10 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	HBR500160JMN	COVER AND PAD - FRONT SEAT BACK	Enquire	To Order
	HBR500160LER	COVER AND PAD - FRONT SEAT BACK	Enquire	To Order
	HBR500160NUG	COVER AND PAD - FRONT SEAT BACK	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	HDA500060JMN	ARMREST - FRONT SEAT	Enquire	To Order
	HDA500060LER	ARMREST	Enquire	To Order
	HDA500060NUG	ARMREST - FRONT SEAT	Enquire	To Order

...and 11 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR012956	HEADREST	Enquire	To Order
	LR012959	HEADREST	Enquire	To Order
	LR012960	HEADREST	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR012092	HEADREST	Enquire	To Order
	LR012093	HEADREST	Enquire	To Order
	LR012094	HEADREST	Enquire	To Order

...and 13 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<519C06	HZE500080	COVER - SEAT BACK RETENTION	HZE500080 COVER - SEAT BACK RETENTION Finisher, Front Seats / From: AA000001	-	2	Enquire
<611A08A	LR012956	HEADREST	LR012956 HEADREST Less DVD Screen, Navy/Parchment Interior / RH / From: AA000001	-	1	Enquire
<611A08A	LR012959	HEADREST	LR012959 HEADREST Jet/Jet Interior, Less DVD Screen / RH / From: AA000001	-	1	Enquire
<611A08A	LR012960	HEADREST	LR012960 HEADREST Less DVD Screen, Sand/Jet Interior / RH / From: AA000001	-	1	Enquire
<611A08A	LR012961	HEADREST	LR012961 HEADREST Ext Navy/Parchment Interior, Less DVD Screen / RH / From: AA000001	-	1	Enquire
<611A08A	LR012962	HEADREST	LR012962 HEADREST Jet/Ivory Interior, Less DVD Screen / RH / From: AA000001	-	1	Enquire
<611A08A	LR012963	HEADREST	LR012963 HEADREST Less DVD Screen, Storm / RH / From: AA000001	-	1	Enquire
<611A08A	LR011154	HEADREST	LR011154 HEADREST Arabica/Ivory, Less DVD Screen / RH / From: AA000001	-	1	Enquire
<611A08A	LR011155	HEADREST	LR011155 HEADREST Ivory/Arabica, Less DVD Screen / RH / From: AA000001	-	1	Enquire
<611A08A	LR012925	HEADREST	LR012925 HEADREST Less DVD Screen, Navy/Parchment Interior / LH / From: AA000001	-	1	Enquire
<611A08A	LR012928	HEADREST	LR012928 HEADREST Jet/Jet Interior, Less DVD Screen / LH / From: AA000001	-	1	Enquire
<611A08A	LR012929	HEADREST	LR012929 HEADREST Less DVD Screen, Sand/Jet Interior / LH / From: AA000001	-	1	Enquire
<611A08A	LR012930	HEADREST	LR012930 HEADREST Ext Navy/Parchment Interior, Less DVD Screen / LH / From: AA000001	-	1	Enquire
<611A08A	LR012931	HEADREST	LR012931 HEADREST Jet/Ivory Interior, Less DVD Screen / LH / From: AA000001	-	1	Enquire
<611A08A	LR012932	HEADREST	LR012932 HEADREST Less DVD Screen, Storm / LH / From: AA000001	-	1	Enquire
<611A08A	LR011163	HEADREST	LR011163 HEADREST Arabica/Ivory, Less DVD Screen / LH / From: AA000001	-	1	Enquire
<611A08A	LR011164	HEADREST	LR011164 HEADREST Ivory/Arabica, Less DVD Screen / LH / From: AA000001	-	1	Enquire
<611A08B	LR012092	HEADREST	LR012092 HEADREST Navy/Parchment Interior, With Provision For DVD Screen / DVD Module Is To Be Ordered Separately / From: AA000001 / To: AA326548	-	2	Enquire
<611A08B	LR012093	HEADREST	LR012093 HEADREST Jet/Jet Interior, With Provision For DVD Screen / DVD Module Is To Be Ordered Separately / From: AA000001 / To: AA326548	-	2	Enquire
<611A08B	LR012094	HEADREST	LR012094 HEADREST Sand/Jet Interior, With Provision For DVD Screen / DVD Module Is To Be Ordered Separately / From: AA000001 / To: AA326548	-	2	Enquire
<611A08B	LR012095	HEADREST	LR012095 HEADREST Ext Navy/Parchment Interior, With Provision For DVD Screen / DVD Module Is To Be Ordered Separately / From: AA000001 / To: AA326548	-	2	Enquire
<611A08B	LR012096	HEADREST	LR012096 HEADREST Jet/Ivory Interior, With Provision For DVD Screen / DVD Module Is To Be Ordered Separately / From: AA000001 / To: AA326548	-	2	Enquire
<611A08B	LR012097	HEADREST	LR012097 HEADREST Storm, With Provision For DVD Screen / DVD Module Is To Be Ordered Separately / From: AA000001 / To: AA326548	-	2	Enquire
<611A08B	LR012098	HEADREST	LR012098 HEADREST Arabica/Ivory, With Provision For DVD Screen / DVD Module Is To Be Ordered Separately / From: AA000001 / To: AA326548	-	2	Enquire
<611A08B	LR012099	HEADREST	LR012099 HEADREST Ivory/Arabica, With Provision For DVD Screen / DVD Module Is To Be Ordered Separately / From: AA000001 / To: AA326548	-	2	Enquire
<611A08B	LR023826	HEADREST	LR023826 HEADREST Navy/Parchment Interior, With Provision For DVD Screen / DVD Module Is To Be Ordered Separately / From: AA326549	-	2	Enquire
<611A08B	LR023827	HEADREST	LR023827 HEADREST Jet/Jet Interior, With Provision For DVD Screen / DVD Module Is To Be Ordered Separately / From: AA326549	-	2	Enquire
<611A08B	LR023828	HEADREST	LR023828 HEADREST Sand/Jet Interior, With Provision For DVD Screen / DVD Module Is To Be Ordered Separately / From: AA326549	-	2	Enquire
<611A08B	LR023829	HEADREST	LR023829 HEADREST Ext Navy/Parchment Interior, With Provision For DVD Screen / DVD Module Is To Be Ordered Separately / From: AA326549	-	2	Enquire
<611A08B	LR023830	HEADREST	LR023830 HEADREST Jet/Ivory Interior, With Provision For DVD Screen / DVD Module Is To Be Ordered Separately / From: AA326549	-	2	Enquire
<611A08B	LR023831	HEADREST	LR023831 HEADREST Storm, With Provision For DVD Screen / DVD Module Is To Be Ordered Separately / From: AA326549	-	2	Enquire
<611A08B	LR023832	HEADREST	LR023832 HEADREST Arabica/Ivory, With Provision For DVD Screen / DVD Module Is To Be Ordered Separately / From: AA326549	-	2	Enquire
<611A08B	LR023833	HEADREST	LR023833 HEADREST Ivory/Arabica, With Provision For DVD Screen / DVD Module Is To Be Ordered Separately / From: AA326549	-	2	Enquire
<644A22	HDA500060JMN	ARMREST - FRONT SEAT	HDA500060JMN ARMREST - FRONT SEAT Navy/Parchment Interior / RH Seat / From: AA000001	-	1	Enquire
<644A22	HDA500060LER	ARMREST	HDA500060LER ARMREST Storm / RH Seat / From: AA000001	-	1	Enquire
<644A22	HDA500060NUG	ARMREST - FRONT SEAT	HDA500060NUG ARMREST - FRONT SEAT Ext Oxford Aspen/Ivory Interior / RH Seat / From: AA000001	-	1	Enquire
<644A22	HDA500060PVA	ARMREST	HDA500060PVA ARMREST Jet/Jet Interior / RH Seat / From: AA000001	-	1	Enquire
<644A22	HDA500060SUN	ARMREST	HDA500060SUN ARMREST Sand/Jet Interior / RH Seat / From: AA000001	-	1	Enquire
<644A22	HDA500060VAE	ARMREST	HDA500060VAE ARMREST Ext Navy/Parchment Interior / RH Seat / From: AA000001	-	1	Enquire
<644A22	HDA500070JMN	ARMREST - FRONT SEAT	HDA500070JMN ARMREST - FRONT SEAT Navy/Parchment Interior / LH Seat / From: AA000001	-	1	Enquire
<644A22	HDA500070LER	ARMREST	HDA500070LER ARMREST Storm / LH Seat / From: AA000001	-	1	Enquire
<644A22	HDA500070NUG	ARMREST - FRONT SEAT	HDA500070NUG ARMREST - FRONT SEAT Ext Oxford Aspen/Ivory Interior / LH Seat / From: AA000001	-	1	Enquire
<644A22	HDA500070PVA	ARMREST	HDA500070PVA ARMREST Jet/Jet Interior / LH Seat / From: AA000001	-	1	Enquire
<644A22	HDA500070SUN	ARMREST	HDA500070SUN ARMREST Sand/Jet Interior / LH Seat / From: AA000001	-	1	Enquire
<644A22	HDA500070VAE	ARMREST	HDA500070VAE ARMREST Ext Navy/Parchment Interior / LH Seat / From: AA000001	-	1	Enquire
<644A22	LR011174	ARMREST	LR011174 ARMREST Arabica/Ivory / RH Seat / From: AA000001	-	1	Enquire
<644A22	LR010973	ARMREST	LR010973 ARMREST Arabica/Ivory / LH Seat / From: AA000001	-	1	Enquire
<24318	LR012076	BEZEL	LR012076 BEZEL Arabica/Ivory, With Provision For DVD Screen / From: AA000001	-	2	Enquire
<24318	HKK500060LER	BEZEL	HKK500060LER BEZEL Storm, With Provision For DVD Screen / From: AA000001	-	2	Enquire
<24318	HKK500060NUG	BEZEL	HKK500060NUG BEZEL Ivory/Arabica, With Provision For DVD Screen / From: AA000001	-	2	Enquire
<24318	HKK500060PVA	BEZEL	HKK500060PVA BEZEL Jet/Jet Interior, With Provision For DVD Screen / From: AA000001	-	2	Enquire
<24318	HKK500060SUN	BEZEL	HKK500060SUN BEZEL Sand/Jet Interior, With Provision For DVD Screen / From: AA000001	-	2	Enquire
<24318	HKK500060VAE	BEZEL	HKK500060VAE BEZEL Ext Navy/Parchment Interior, With Provision For DVD Screen / From: AA000001	-	2	Enquire
<60136A	HBR500350LER	COVER AND PAD - FRONT SEAT BACK	HBR500350LER COVER AND PAD - FRONT SEAT BACK Storm / Lower / From: AA000001 / To: CA597872	-	2	Enquire
<60136A	HBR500350NUG	COVER AND PAD - FRONT SEAT BACK	HBR500350NUG COVER AND PAD - FRONT SEAT BACK Jet/Ivory Interior / Lower / From: AA000001 / To: CA597872	-	2	Enquire
<60136A	HBR500350PVA	COVER AND PAD - FRONT SEAT BACK	HBR500350PVA COVER AND PAD - FRONT SEAT BACK Jet/Jet Interior / Lower / From: AA000001 / To: CA597872	-	2	Enquire
<60136A	HBR500350SUN	COVER AND PAD - FRONT SEAT BACK	HBR500350SUN COVER AND PAD - FRONT SEAT BACK Sand/Jet Interior / Lower / From: AA000001 / To: CA597872	-	2	Enquire
<60136A	HBR500350VAE	COVER AND PAD - FRONT SEAT BACK	HBR500350VAE COVER AND PAD - FRONT SEAT BACK Ext Navy/Parchment Interior / Lower / From: AA000001 / To: CA597872	-	2	Enquire
<60136A	HBR500350JMN	COVER AND PAD - FRONT SEAT BACK	HBR500350JMN COVER AND PAD - FRONT SEAT BACK Navy/Parchment Interior / Lower / From: AA000001 / To: CA597872	-	2	Enquire
<60136A	LR011009	COVER AND PAD - FRONT SEAT BACK	LR011009 COVER AND PAD - FRONT SEAT BACK Arabica/Ivory / Lower / From: AA000001 / To: CA597872	-	2	Enquire
<60136A	LR032424	COVER - SEAT BACK	LR032424 COVER - SEAT BACK Arabica/Ivory / Lower / From: CA597873	-	2	Enquire
<60136A	LR032425	COVER - SEAT BACK	LR032425 COVER - SEAT BACK Navy/Parchment Interior / Lower / From: CA597873	-	2	Enquire
<60136A	LR032427	COVER - SEAT BACK	LR032427 COVER - SEAT BACK Jet/Ivory Interior / Lower / From: CA597873	-	2	Enquire
<60136A	LR032428	COVER - SEAT BACK	LR032428 COVER - SEAT BACK Jet/Jet Interior / Lower / From: CA597873	-	2	Enquire
<60136A	LR032429	COVER - SEAT BACK	LR032429 COVER - SEAT BACK Sand/Jet Interior / Lower / From: CA597873	-	2	Enquire
<60136A	LR032430	COVER - SEAT BACK	LR032430 COVER - SEAT BACK Ext Navy/Parchment Interior / Lower / From: CA597873	-	2	Enquire
<60136B	HBR500160JMN	COVER AND PAD - FRONT SEAT BACK	HBR500160JMN COVER AND PAD - FRONT SEAT BACK Navy/Parchment Interior / Upper / From: AA000001	-	2	Enquire
<60136B	HBR500160LER	COVER AND PAD - FRONT SEAT BACK	HBR500160LER COVER AND PAD - FRONT SEAT BACK Storm / Upper / From: AA000001	-	2	Enquire
<60136B	HBR500160NUG	COVER AND PAD - FRONT SEAT BACK	HBR500160NUG COVER AND PAD - FRONT SEAT BACK Ext Oxford Aspen/Ivory Interior / Upper / From: AA000001	-	2	Enquire
<60136B	HBR500160PVA	COVER AND PAD - FRONT SEAT BACK	HBR500160PVA COVER AND PAD - FRONT SEAT BACK Jet/Jet Interior / Upper / From: AA000001	-	2	Enquire
<60136B	HBR500160SUN	COVER AND PAD - FRONT SEAT BACK	HBR500160SUN COVER AND PAD - FRONT SEAT BACK Sand/Jet Interior / Upper / From: AA000001	-	2	Enquire
<60136B	HBR500160VAE	COVER AND PAD - FRONT SEAT BACK	HBR500160VAE COVER AND PAD - FRONT SEAT BACK Ext Navy/Parchment Interior / Upper / From: AA000001	-	2	Enquire
<60136B	LR011066	COVER AND PAD - FRONT SEAT BACK	LR011066 COVER AND PAD - FRONT SEAT BACK Arabica/Ivory / Upper / From: AA000001	-	2	Enquire
<62900	LR010897	COVER - SEAT CUSHION	LR010897 COVER - SEAT CUSHION Arabica/Ivory / From: AA000001	-	2	Enquire
<62900	LR010898	COVER - SEAT CUSHION	LR010898 COVER - SEAT CUSHION Ivory/Arabica / From: AA000001	-	2	Enquire
<62900	HCA501150JMN	COVER - SEAT CUSHION	HCA501150JMN COVER - SEAT CUSHION Navy/Parchment Interior / From: AA000001	-	2	Enquire
<62900	HCA501150PVA	COVER - SEAT CUSHION	HCA501150PVA COVER - SEAT CUSHION Jet/Jet Interior / From: AA000001	-	2	Enquire
<62900	HCA501150SUN	COVER - SEAT CUSHION	HCA501150SUN COVER - SEAT CUSHION Sand/Jet Interior / From: AA000001	-	2	Enquire
<62900	HCA501150VAE	COVER - SEAT CUSHION	HCA501150VAE COVER - SEAT CUSHION Ext Navy/Parchment Interior / From: AA000001	-	2	Enquire
<62900	HCA501150WTM	COVER - SEAT CUSHION	HCA501150WTM COVER - SEAT CUSHION Jet/Ivory Interior / From: AA000001	-	2	Enquire
<62900	HCA501150YDD	COVER - SEAT CUSHION	HCA501150YDD COVER - SEAT CUSHION Storm / From: AA000001	-	2	Enquire
<64416	HBA501580JMN	COVER - SEAT BACK	HBA501580JMN COVER - SEAT BACK Navy/Parchment Interior / RH / From: AA000001	-	1	Enquire
<64416	HBA501580PVA	COVER - SEAT BACK	HBA501580PVA COVER - SEAT BACK Jet/Jet Interior / RH / From: AA000001	-	1	Enquire
<64416	HBA501580SUN	COVER - SEAT BACK	HBA501580SUN COVER - SEAT BACK Sand/Jet Interior / RH / From: AA000001	-	1	Enquire
<64416	HBA501580VAE	COVER - SEAT BACK	HBA501580VAE COVER - SEAT BACK Ext Navy/Parchment Interior / RH / From: AA000001	-	1	Enquire
<64416	HBA501580WTM	COVER - SEAT BACK	HBA501580WTM COVER - SEAT BACK Jet/Ivory Interior / RH / From: AA000001	-	1	Enquire
<64416	HBA501580YDD	COVER - SEAT BACK	HBA501580YDD COVER - SEAT BACK Storm / RH / From: AA000001	-	1	Enquire
<64416	LR011017	COVER - SEAT BACK	LR011017 COVER - SEAT BACK Arabica/Ivory / RH / From: AA000001	-	1	Enquire
<64416	LR011018	COVER - SEAT BACK	LR011018 COVER - SEAT BACK Ivory/Arabica / RH / From: AA000001	-	1	Enquire
<64416	HBA501590JMN	COVER - SEAT BACK	HBA501590JMN COVER - SEAT BACK Navy/Parchment Interior / LH / From: AA000001	-	1	Enquire
<64416	HBA501590PVA	COVER - SEAT BACK	HBA501590PVA COVER - SEAT BACK Jet/Jet Interior / LH / From: AA000001	-	1	Enquire
<64416	HBA501590SUN	COVER - SEAT BACK	HBA501590SUN COVER - SEAT BACK Sand/Jet Interior / LH / From: AA000001	-	1	Enquire
<64416	HBA501590VAE	COVER - SEAT BACK	HBA501590VAE COVER - SEAT BACK Ext Navy/Parchment Interior / LH / From: AA000001	-	1	Enquire
<64416	HBA501590WTM	COVER - SEAT BACK	HBA501590WTM COVER - SEAT BACK Jet/Ivory Interior / LH / From: AA000001	-	1	Enquire
<64416	HBA501590YDD	COVER - SEAT BACK	HBA501590YDD COVER - SEAT BACK Storm / LH / From: AA000001	-	1	Enquire
<64416	LR011024	COVER - SEAT BACK	LR011024 COVER - SEAT BACK Ivory/Arabica / LH / From: AA000001	-	1	Enquire
<64416	LR011023	COVER - SEAT BACK	LR011023 COVER - SEAT BACK Arabica/Ivory / LH / From: AA000001	-	1	Enquire
HM1	HYT000030	PIN - LOCKING	HYT000030 PIN - LOCKING Armrest, M6, Pin - Retainer / From: AA000001	-	2	Enquire
HM2	HYD500070	MOUNTING - TRIM	HYD500070 MOUNTING - TRIM Backboard-front seat, Stud / From: AA000001	-	2	Enquire
HM3	HYD500080	MOUNTING - TRIM	HYD500080 MOUNTING - TRIM Backboard-front seat, Stud / From: AA000001	-	2	Enquire
HR1	HYX000010	RING - RETAINING	HYX000010 RING - RETAINING Retaining Ring / From: AA000001	-	1	Enquire
HS1	HYP500330	SCREW	HYP500330 SCREW Backboard-front seat, M5 x 19MM / From: AA000001	-	4	Enquire
