Side Trim (Sill) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Side Trim (Sill) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
EYC000120 CLIP $1.49 To Order
Photo Part No Description Price (each) Stock
EYC000130 CLIP $1.16 To Order
Photo Part No Description Price (each) Stock
DDQ000020 CLIP - TRIM $1.35 To Order
Photo Part No Description Price (each) Stock
EYC000202 CLIP $0.63 To Order
Photo Part No Description Price (each) Stock
EYC101200 CLIP $5.59 To Order
Photo Part No Description Price (each) Stock
EYQ000030 RIVET - PLASTIC $1.35 To Order
Photo Part No Description Price (each) Stock
KYH000060 NUT - PLASTIC - SPECIAL $1.12 To Order
Photo Part No Description Price (each) Stock
YZM000030 SCREW $1.16 To Order
Photo Part No Description Price (each) Stock
LR009275 PANEL - COWL SIDE TRIM $30.98 To Order
LR009276 PANEL - COWL SIDE TRIM $32.90 To Order
Photo Part No Description Price (each) Stock
EAP501050 TREADPLATE $266.16 To Order
EAP501040 TREADPLATE $124.06 To Order
Photo Part No Description Price (each) Stock
LR009277 MOULDING - "A" PILLAR INNER $61.89 To Order
LR009278 MOULDING - "A" PILLAR INNER $129.69 To Order
LR009279 MOULDING - "A" PILLAR INNER $49.50 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
EAP500920 TREADPLATE $205.42 To Order
EAP500930 TREADPLATE $205.42 To Order
EAP500940 TREADPLATE $114.16 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
EAP500960 TREADPLATE $162.49 To Order
EAP500980 TREADPLATE $342.33 To Order
EAP501000 TREADPLATE $266.16 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
YPO000060 MOULDING - PROTECTIVE $8.00 To Order
YPO000070 MOULDING - PROTECTIVE $8.00 To Order
YPO000061 MOULDING - PROTECTIVE $67.83 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
YPO000040 MOULDING - PROTECTIVE $23.46 To Order
YPO000050 MOULDING - PROTECTIVE $23.00 To Order
Photo Part No Description Price (each) Stock
YPO000080 MOULDING - PROTECTIVE $31.20 To Order
YPO000090 MOULDING - PROTECTIVE $27.15 To Order
Photo Part No Description Price (each) Stock
LR009281 PANEL - SIDE TRIM $98.72 To Order
LR009339 PANEL - SIDE TRIM $104.77 To Order
Photo Part No Description Price (each) Stock
LR009285 PANEL - SIDE TRIM $71.36 To Order
LR009340 PANEL - SIDE TRIM $9.25 To Order
View All

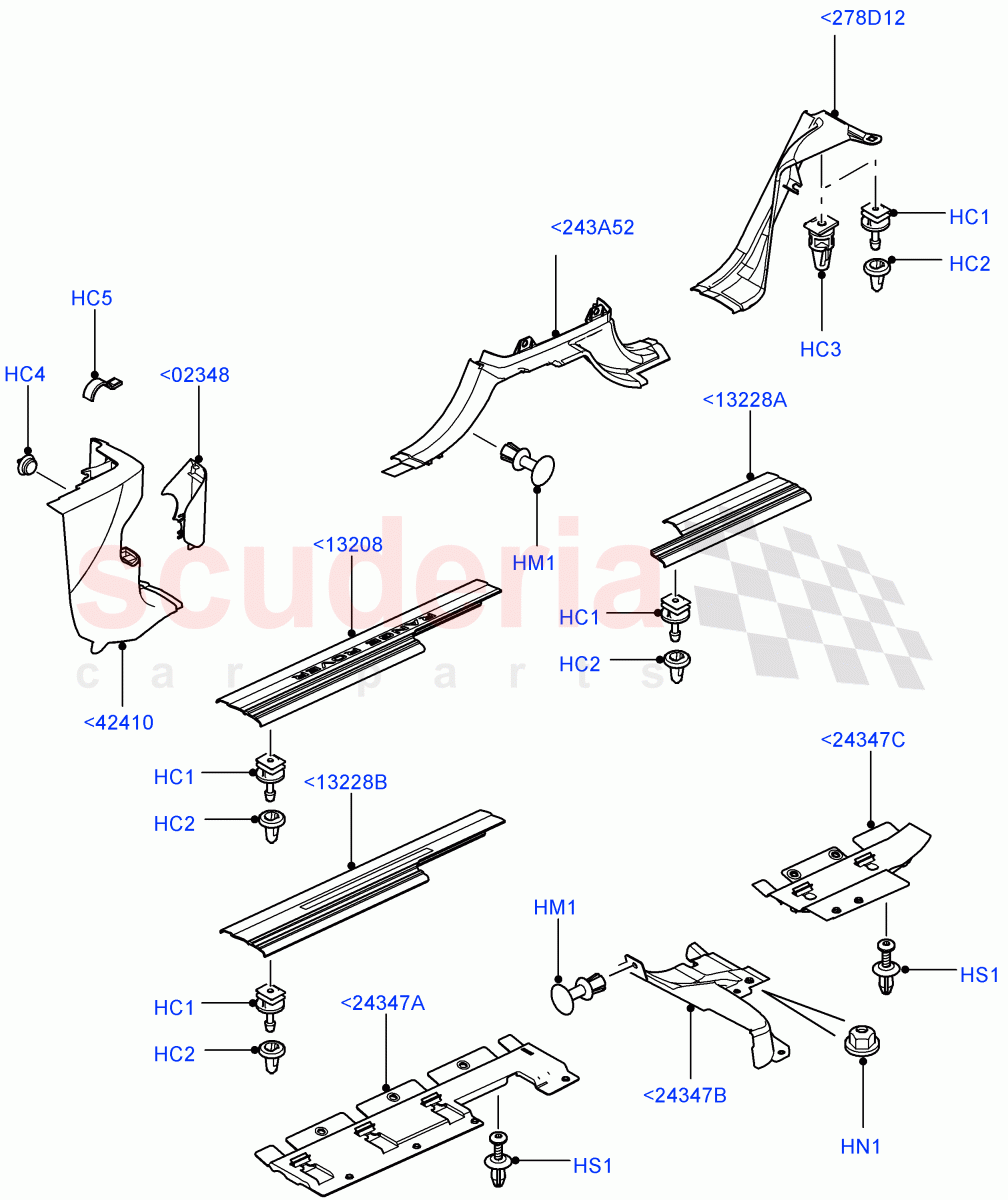

Side Trim (Sill) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<243A52 LR009281
PANEL - SIDE TRIM
RH, "B" Pillar, Jet, Lower / From: AA000001 		$98.72 1
<243A52 LR009339
PANEL - SIDE TRIM
LH, "B" Pillar, Jet, Lower / From: AA000001 		$104.77 1
<278D12 LR009285
PANEL - SIDE TRIM
RH, Jet, Rear / From: AA000001 		$71.36 1
<278D12 LR009340
PANEL - SIDE TRIM
LH, Jet, Rear / From: AA000001 		$9.25 1
<02348 LR009275
PANEL - COWL SIDE TRIM
RHD / "A" Pillar, Jet, Lower / From: AA000001 		$30.98 1
<02348 LR009276
PANEL - COWL SIDE TRIM
LHD / "A" Pillar, Jet, Lower / From: AA000001 		$32.90 1
<13208 EAP501050
TREADPLATE
Fr Door Treadplates - Range Rover / LH, Front / From: AA000001 		$266.16 1
<13208 EAP501040
TREADPLATE
Fr Door Treadplates - Range Rover / RH, Front / From: AA000001 		$124.06 1
<13228A EAP500920
TREADPLATE
Rr Door Treadplates - Range Rover / RH, Rear / From: AA000001 		$205.42 1
<13228A EAP500930
TREADPLATE
Rr Door Treadplates - Range Rover / LH, Rear / From: AA000001 		$205.42 1
<13228A EAP500940
TREADPLATE
Rear Scuff Plates - Bright / RH / From: AA000001 		$114.16 1
<13228A EAP500950
TREADPLATE
Rear Scuff Plates - Bright / LH / From: AA000001 		$351.78 1
<13228B EAP500960
TREADPLATE
Fr Dr Treadstrip-Brt Autobiography / RH, Front / From: AA000001 		$162.49 1
<13228B EAP500980
TREADPLATE
Front Door Treadstrip - Bright SC / RH, Front / From: AA000001 		$342.33 1
<13228B EAP501000
TREADPLATE
Fr Door Tred Strip-Bright No Badge / RH, Front / From: AA000001 		$266.16 1
<13228B EAP501020
TREADPLATE
Front Door Scuff - Individual Logo / RH, Front / From: AA000001 		$144.44 1
<13228B EAP500970
TREADPLATE
Fr Dr Treadstrip-Brt Autobiography / LH, Front / From: AA000001 		$342.33 1
<13228B EAP500990
TREADPLATE
Front Door Treadstrip - Bright SC / LH, Front / From: AA000001 		$342.33 1
<13228B EAP501010
TREADPLATE
Fr Door Tred Strip-Bright No Badge / LH, Front / From: AA000001 		$126.33 1
<13228B EAP501030
TREADPLATE
Front Door Scuff - Individual Logo / LH, Front / From: AA000001 		$304.31 1
<24347A YPO000060
MOULDING - PROTECTIVE
RH, Cable Cover, Front, Sill / From: AA000001 / To: AA789875 		$8.00 1
<24347A YPO000070
MOULDING - PROTECTIVE
LH, Cable Cover, Front, Sill / From: AA000001 / To: AA789875 		$8.00 1
<24347A YPO000061
MOULDING - PROTECTIVE
RH, Cable Cover, Front, Sill / From: AA789876 		$67.83 1
<24347A YPO000071
MOULDING - PROTECTIVE
LH, Cable Cover, Front, Sill / From: AA789876 		$39.78 1
<24347B YPO000040
MOULDING - PROTECTIVE
RH, Cable Cover, Centre / From: AA000001 		$23.46 1
<24347B YPO000050
MOULDING - PROTECTIVE
LH, Cable Cover, Centre / From: AA000001 		$23.00 1
<24347C YPO000080
MOULDING - PROTECTIVE
RH, Cable Cover, Rear, Sill / From: AA000001 		$31.20 1
<24347C YPO000090
MOULDING - PROTECTIVE
LH, Cable Cover, Rear, Sill / From: AA000001 		$27.15 1
<42410 LR009277
MOULDING - "A" PILLAR INNER
RHD / RH, "A" Pillar, Jet, Lower / From: AA000001 		$61.89 1
<42410 LR009278
MOULDING - "A" PILLAR INNER
LHD / RH, "A" Pillar, Jet, Lower / From: AA000001 		$129.69 1
<42410 LR009279
MOULDING - "A" PILLAR INNER
RHD / LH, "A" Pillar, Jet, Lower / From: AA000001 		$49.50 1
<42410 LR009280
MOULDING - "A" PILLAR INNER
LHD / LH, "A" Pillar, Jet, Lower / From: AA000001 		$178.88 1
HC1 EYC000120
CLIP
Plate - Door Scuff / From: AA000001 		$1.49 12
HC2 EYC000130
CLIP
Plate - Door Scuff / From: AA000001 		$1.16 12
HC3 DDQ000020
CLIP - TRIM
Plate - Door Scuff, Rear / From: AA000001 / To: AA314902 		$1.35 4
HC4 EYC000202
CLIP
"A" Pillar, Lower / From: AA000001 		$0.63 4
HC5 EYC101200
CLIP
ID Plate - Japan / Signal Flare / From: AA000001 		$5.59 1
HM1 EYQ000030
RIVET - PLASTIC
Expanding Rivet / From: AA000001 		$1.35 6
HN1 KYH000060
NUT - PLASTIC - SPECIAL
Cable Cover, Centre, M5, Plastic / From: AA000001 		$1.12 4
HS1 YZM000030
SCREW
Cable Cover, Front And Rear, Sill / From: AA000001 		$1.16 10
