Rear Brake Discs And Calipers (4.4L DOHC DITC V8 Diesel, 5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Rear Brake Discs And Calipers (4.4L DOHC DITC V8 Diesel, 5.0L OHC SGDI SC V8 Petrol - AJ133) ((V)...

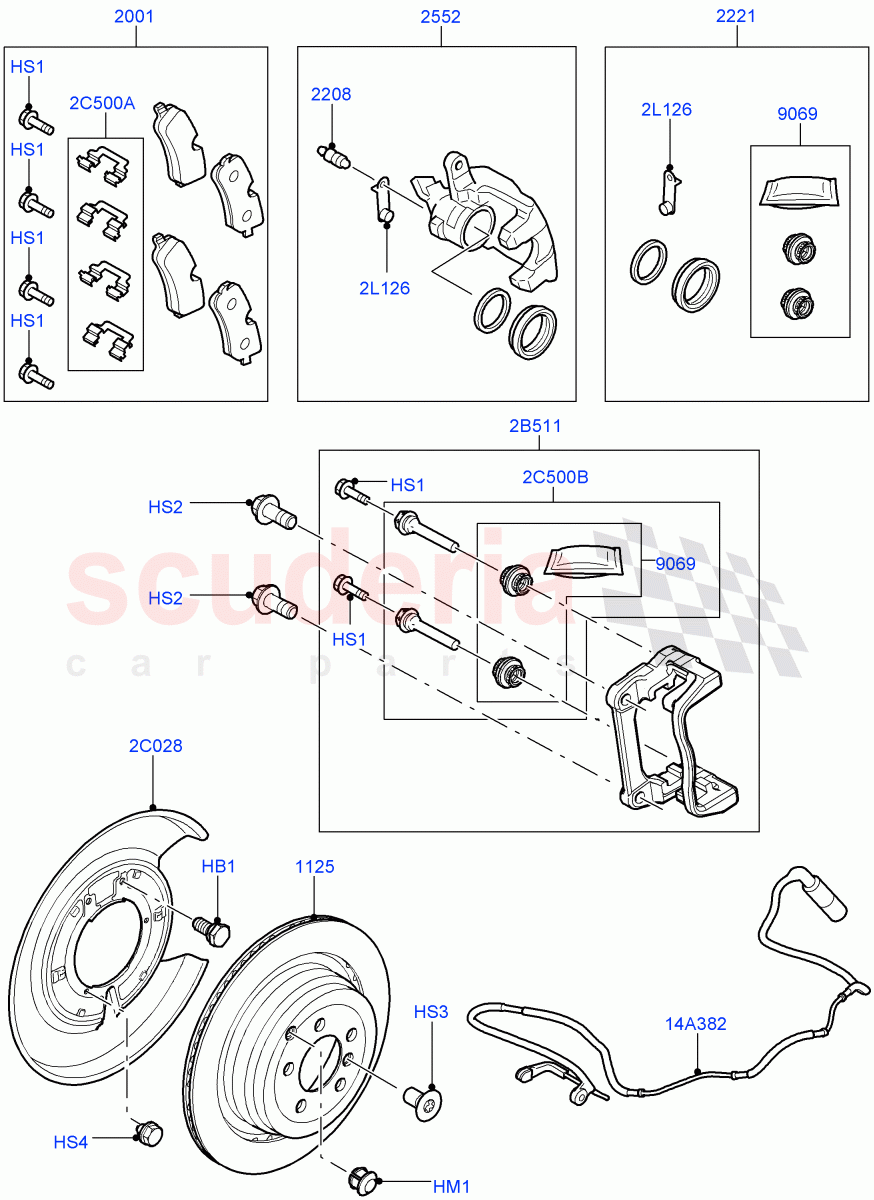

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	SYP000181	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SOD000010	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SMV500010	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012823	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SDG100000L	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SYP000171	SCREW	Enquire	To Order
	LR018509	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011891	DISC - BRAKE	Enquire	To Order
	LR031846	DISC - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015577	BRAKE PADS - WITH SPRINGS	Enquire	To Order
	LR025739	KIT - BRAKE LINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015523	SCREW - BLEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015520	KIT - CALIPER SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015583	HOUSING	Enquire	To Order
	LR015581	HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015525	COVER - DUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015575	BRACKET	Enquire	To Order
	LR025737	BRACKET	Enquire	To Order
	LR025738	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011715	SHIELD - BRAKE DISC SPLASH	Enquire	To Order
	LR011714	SHIELD - BRAKE DISC SPLASH	Enquire	To Order
	LR019452	SHIELD - BRAKE DISC SPLASH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	SEE500100	CAP - BLEED SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SOE500030	WIRE - BRAKE PAD WEAR WARNING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025740	KIT - BRAKE PAD ATTACHMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017032	KIT - LOCATING PIN BOLTS	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	SYP000181	SCREW	SYP000181 SCREW M8 x 15MM, Shield / From: AA000001	-	4	Enquire
HM1	SOD000010	GROMMET	SOD000010 GROMMET Plug / From: AA000001	-	2	Enquire
HS1	SMV500010	SCREW	SMV500010 SCREW Pin - Slide / From: AA000001	-	4	Enquire
HS2	LR012823	SCREW	LR012823 SCREW M12 X 1.5 X 29.5MM, To Caliper / From: AA000001	-	4	Enquire
HS3	SDG100000L	SCREW	SDG100000L SCREW Disc - Brake, M8 X 14 / From: AA000001	-	2	Enquire
HS4	SYP000171	SCREW	SYP000171 SCREW M6 X 10MM, Shield / From: AA000001 / To: BA336892	-	6	Enquire
HS4	LR018509	SCREW	LR018509 SCREW M6 X 10MM, Shield, Torx / From: BA336893	-	6	Enquire
2B511	LR015575	BRACKET	LR015575 BRACKET RH/LH / From: AA000001 / To: AA327976	-	2	Enquire
2B511	LR025737	BRACKET	LR025737 BRACKET RH / From: AA327977	-	1	Enquire
2B511	LR025738	BRACKET	LR025738 BRACKET LH / From: AA327977	-	1	Enquire
2C028	LR011715	SHIELD - BRAKE DISC SPLASH	LR011715 SHIELD - BRAKE DISC SPLASH RH, Shield / From: AA000001 / To: AA314627	-	1	Enquire
2C028	LR011714	SHIELD - BRAKE DISC SPLASH	LR011714 SHIELD - BRAKE DISC SPLASH LH, Shield / From: AA000001 / To: AA314627	-	1	Enquire
2C028	LR019452	SHIELD - BRAKE DISC SPLASH	LR019452 SHIELD - BRAKE DISC SPLASH LH, Shield / From: AA314628	-	1	Enquire
2C028	LR019451	SHIELD - BRAKE DISC SPLASH	LR019451 SHIELD - BRAKE DISC SPLASH RH, Shield / From: AA314628	-	1	Enquire
2C500A	LR025740	KIT - BRAKE PAD ATTACHMENT	LR025740 KIT - BRAKE PAD ATTACHMENT Includes Clips / From: AA327977	-	1	Enquire
2C500B	LR017032	KIT - LOCATING PIN BOLTS	LR017032 KIT - LOCATING PIN BOLTS Caliper Set, Pin And Boot / From: AA000001	-	2	Enquire
2L126	SEE500100	CAP - BLEED SCREW	SEE500100 CAP - BLEED SCREW From: AA000001	-	2	Enquire
14A382	SOE500030	WIRE - BRAKE PAD WEAR WARNING	SOE500030 WIRE - BRAKE PAD WEAR WARNING From: AA000001	-	1	Enquire
1125	LR011891	DISC - BRAKE	LR011891 DISC - BRAKE From: AA000001 / To: BA356996	-	2	Enquire
1125	LR031846	DISC - BRAKE	LR031846 DISC - BRAKE From: BA356997	-	2	Enquire
2001	LR015577	BRAKE PADS - WITH SPRINGS	LR015577 BRAKE PADS - WITH SPRINGS Axle Set / From: AA000001 / To: AA327976	-	1	Enquire
2001	LR025739	KIT - BRAKE LINING	LR025739 KIT - BRAKE LINING Axle Set / From: AA327977	-	1	Enquire
2208	LR015523	SCREW - BLEED	LR015523 SCREW - BLEED From: AA000001	-	2	Enquire
2221	LR015520	KIT - CALIPER SEAL	LR015520 KIT - CALIPER SEAL Caliper Set, To Caliper / From: AA000001	-	2	Enquire
2552	LR015583	HOUSING	LR015583 HOUSING LH / From: AA000001	-	1	Enquire
2552	LR015581	HOUSING	LR015581 HOUSING RH / From: AA000001	-	1	Enquire
9069	LR015525	COVER - DUST	LR015525 COVER - DUST Boot, Caliper Set / From: AA000001	-	2	Enquire
