Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Supercharger (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001)

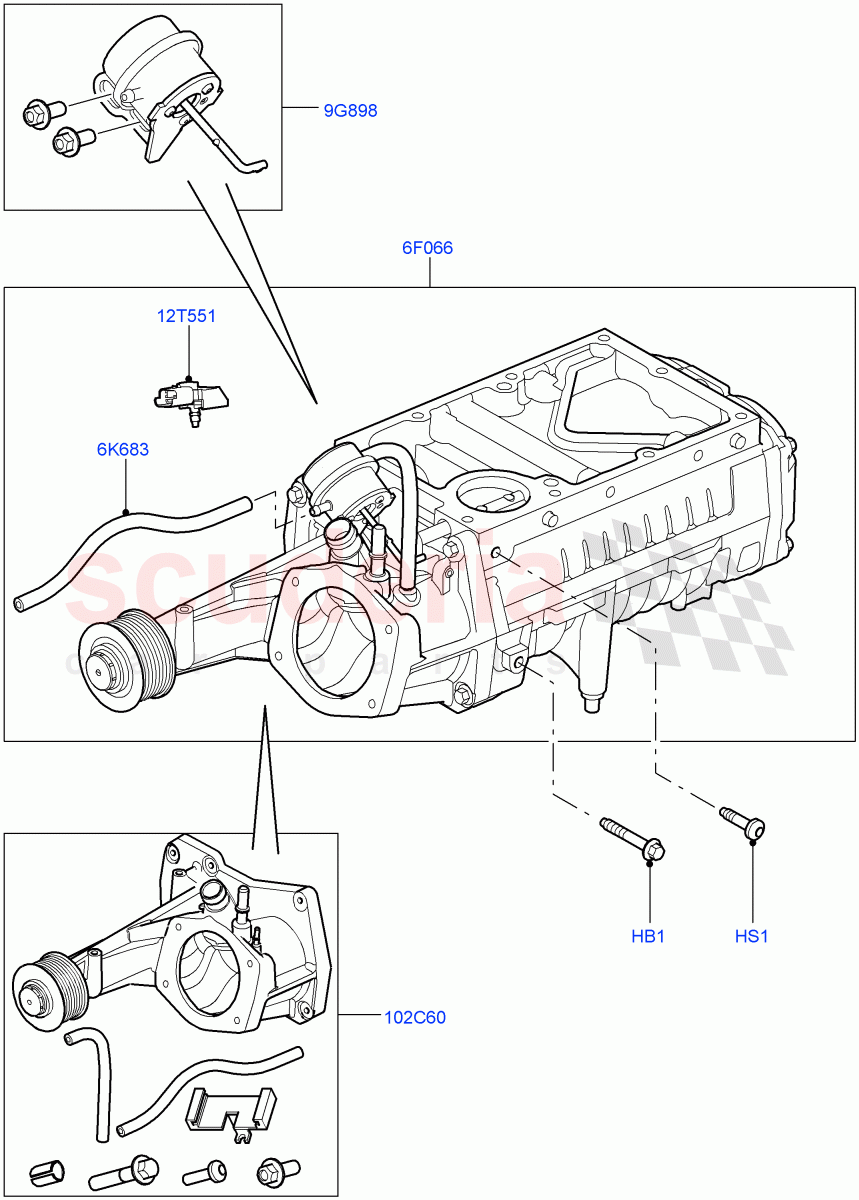

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4567977	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010917	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011341	SUPERCHARGER	Enquire	To Order
	LR032056	SUPERCHARGER	Enquire	To Order
	LR040928	SUPERCHARGER	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR011342	HOSE - SUPERCHARGER ACTUATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018271	KIT - ACTUATOR REPAIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088564	KIT - SUPERCHARGER	Enquire	To Order
	LR088564	KIT - SUPERCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008881	SENSOR - MANIFOLD ABSOLUTE PRESSURE	Enquire	To Order
	LR087236	SENSOR - MANIFOLD ABSOLUTE PRESSURE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	4567977	BOLT	4567977 BOLT M8 X 50, Manifold To Supercharger / From: AA000001	-	2	Enquire
HS1	LR010917	SCREW	LR010917 SCREW M8 x 30MM, Manifold To Supercharger / From: AA000001	-	6	Enquire
6F066	LR011341	SUPERCHARGER	LR011341 SUPERCHARGER From: AA000001 / To: CA374367	-	1	Enquire
6F066	LR032056	SUPERCHARGER	LR032056 SUPERCHARGER From: CA374368 / To: CA387564	-	1	Enquire
6F066	LR040928	SUPERCHARGER	LR040928 SUPERCHARGER From: CA387565 / To: CA393014	-	1	Enquire
6F066	LR048089	SUPERCHARGER	LR048089 SUPERCHARGER From: CA393015 / To: CA398021	-	1	Enquire
6F066	LR096455	SUPERCHARGER	LR096455 SUPERCHARGER From: CA398022 / To: CA402366	-	1	Enquire
6F066	LR103233	SUPERCHARGER	LR103233 SUPERCHARGER From: CA402367	-	1	Enquire
6K683	LR011342	HOSE - SUPERCHARGER ACTUATOR	LR011342 HOSE - SUPERCHARGER ACTUATOR Supercharger Actuator / From: AA000001	-	1	Enquire
9G898	LR018271	KIT - ACTUATOR REPAIR	LR018271 KIT - ACTUATOR REPAIR From: AA000001	-	1	Enquire
12T551	LR008881	SENSOR - MANIFOLD ABSOLUTE PRESSURE	LR008881 SENSOR - MANIFOLD ABSOLUTE PRESSURE Sensor - Manifold Absolute Pressure (MAP) / From: AA000001 / To: CA374411	-	1	Enquire
12T551	LR087236	SENSOR - MANIFOLD ABSOLUTE PRESSURE	LR087236 SENSOR - MANIFOLD ABSOLUTE PRESSURE Sensor - Manifold Absolute Pressure (MAP) / From: CA374412	-	1	Enquire
102C60	LR088564	KIT - SUPERCHARGER	LR088564 KIT - SUPERCHARGER Front End, With Fixing Parts / From: AA000001 / To: CA374006	-	1	Enquire
102C60	LR088564	KIT - SUPERCHARGER	LR088564 KIT - SUPERCHARGER Front End, With Fixing Parts / From: CA374007	-	1	Enquire
