Exhaust System (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Exhaust System (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001)

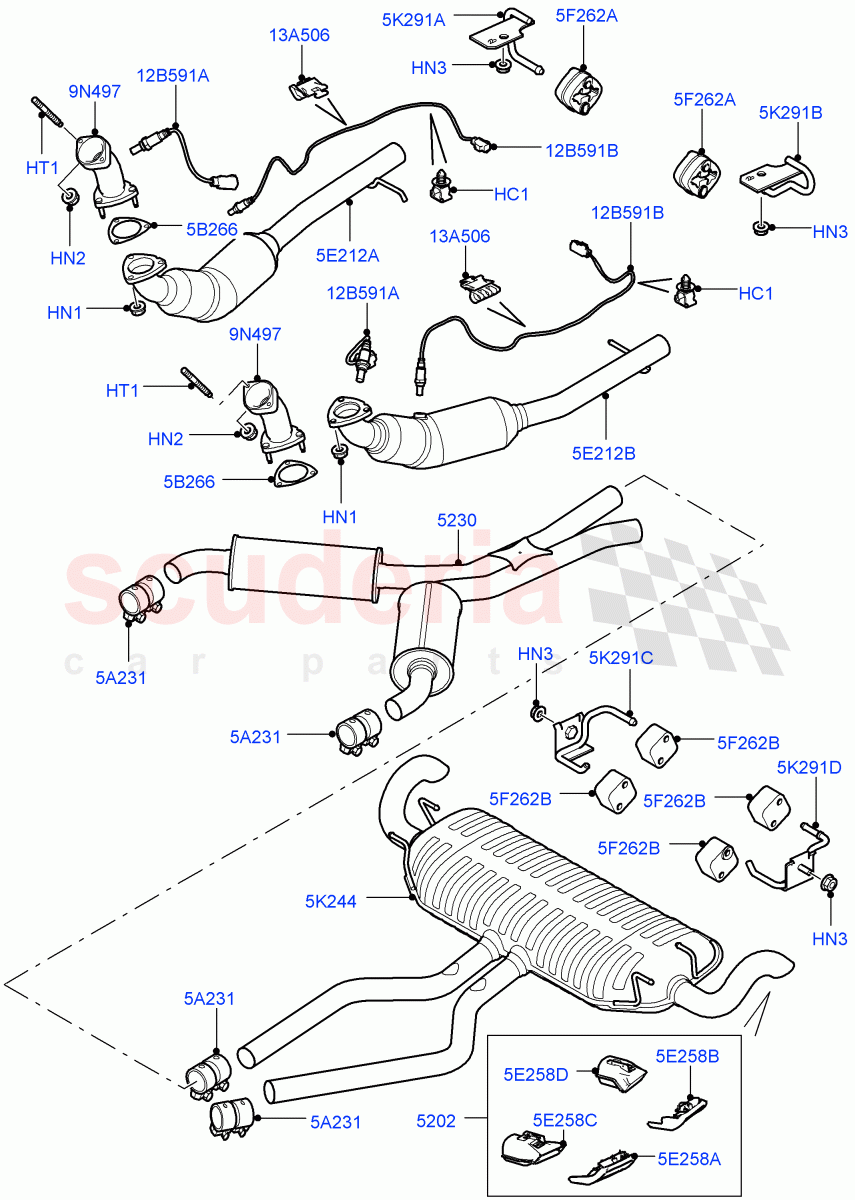

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011519	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025680	M10 FLANGED HEX NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYH500060	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ESR2034	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYR500040	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020940	EXTENSION - EXHAUST PIPE	Enquire	To Order
	LR029118	EXTENSION - EXHAUST PIPE	Enquire	To Order
	LR059415	EXTENSION - EXHAUST PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011070	MUFFLER - CENTER	Enquire	To Order
	LR039779	MUFFLER - CENTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500030	CLAMP - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WCM500110	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010955	MUFFLER AND PIPE - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011092	PIPE - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	YQR000050	CLIP - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010932	CONVERTER	Enquire	To Order
	LR043262	CONVERTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010933	CONVERTER	Enquire	To Order
	LR043265	CATALYTIC CONVERTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025975	FINISHER	Enquire	To Order
	LR059417	FINISHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025974	FINISHER	Enquire	To Order
	LR059418	FINISHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025973	SHIELD - EXHAUST PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025972	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WCS000150	INSULATOR - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WCS500030	INSULATOR - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016836	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016835	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WCU500260	BRACKET - MUFFLER OUTLET PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WCU500270	BRACKET - MUFFLER OUTLET PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011710	SENSOR - HEGO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011711	SENSOR - EXHAUST GAS - OXYGEN	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR011519	CLIP	LR011519 CLIP 9.5 X 6 X 2, Oxygen Sensor / From: AA000001	-	4	Enquire
HN1	LR025680	M10 FLANGED HEX NUT	LR025680 M10 FLANGED HEX NUT M10 / From: AA000001	-	6	Enquire
HN2	WYH500060	NUT	WYH500060 NUT M8 / From: AA000001	-	4	Enquire
HN3	ESR2034	NUT - FLANGED	ESR2034 NUT - FLANGED M10 X 1.5 / From: AA000001	-	4	Enquire
HT1	WYR500040	STUD	WYR500040 STUD M8 / From: AA000001	-	4	Enquire
5A231	WCL500030	CLAMP - EXHAUST	WCL500030 CLAMP - EXHAUST 55MM / From: AA000001	-	4	Enquire
5B266	WCM500110	GASKET	WCM500110 GASKET Catalyst Assy / From: AA000001	-	2	Enquire
5E212A	LR010932	CONVERTER	LR010932 CONVERTER RH / From: AA000001 / To: CA373660	-	1	Enquire
5E212A	LR043262	CONVERTER	LR043262 CONVERTER RH / From: CA373661	-	1	Enquire
5E212B	LR010933	CONVERTER	LR010933 CONVERTER LH / From: AA000001 / To: CA373660	-	1	Enquire
5E212B	LR043265	CATALYTIC CONVERTER	LR043265 CATALYTIC CONVERTER LH / From: CA373661	-	1	Enquire
5E258A	LR025975	FINISHER	LR025975 FINISHER 5.0L OHC SGDI SC V8 Petrol - AJ133, Rear Bumper - Body Kit / LH, Finisher / From: AA313069 / To: AA328616	-	1	Enquire
5E258A	LR059417	FINISHER	LR059417 FINISHER 5.0L OHC SGDI SC V8 Petrol - AJ133, Rear Bumper - Body Kit / LH, Finisher / From: AA328617	-	1	Enquire
5E258B	LR025974	FINISHER	LR025974 FINISHER 5.0L OHC SGDI SC V8 Petrol - AJ133, Rear Bumper - Body Kit / RH, Finisher / From: AA313069 / To: AA328616	-	1	Enquire
5E258B	LR059418	FINISHER	LR059418 FINISHER 5.0L OHC SGDI SC V8 Petrol - AJ133, Rear Bumper - Body Kit / RH, Finisher / From: AA328617	-	1	Enquire
5E258C	LR025973	SHIELD - EXHAUST PIPE	LR025973 SHIELD - EXHAUST PIPE 5.0L OHC SGDI SC V8 Petrol - AJ133, Rear Bumper - Body Kit / LH / From: AA313069	-	1	Enquire
5E258D	LR025972	SHIELD	LR025972 SHIELD 5.0L OHC SGDI SC V8 Petrol - AJ133, Rear Bumper - Body Kit / RH / From: AA313069	-	1	Enquire
5F262A	WCS000150	INSULATOR - RUBBER	WCS000150 INSULATOR - RUBBER Centre / From: AA000001	-	2	Enquire
5F262B	WCS500030	INSULATOR - RUBBER	WCS500030 INSULATOR - RUBBER Rear / From: AA000001	-	4	Enquire
5K244	LR010955	MUFFLER AND PIPE - REAR	LR010955 MUFFLER AND PIPE - REAR Rear / From: AA000001	-	1	Enquire
5K291A	LR016836	BRACKET	LR016836 BRACKET RH / From: AA000001	-	1	Enquire
5K291B	LR016835	BRACKET	LR016835 BRACKET LH / From: AA000001	-	1	Enquire
5K291C	WCU500260	BRACKET - MUFFLER OUTLET PIPE	WCU500260 BRACKET - MUFFLER OUTLET PIPE RH / From: AA000001	-	1	Enquire
5K291D	WCU500270	BRACKET - MUFFLER OUTLET PIPE	WCU500270 BRACKET - MUFFLER OUTLET PIPE LH / From: AA000001	-	1	Enquire
9N497	LR011092	PIPE - EXHAUST	LR011092 PIPE - EXHAUST From: AA000001	-	2	Enquire
12B591A	LR011710	SENSOR - HEGO	LR011710 SENSOR - HEGO Exhaust Gas Oxygen / From: AA000001	-	2	Enquire
12B591B	LR011711	SENSOR - EXHAUST GAS - OXYGEN	LR011711 SENSOR - EXHAUST GAS - OXYGEN Exhaust Gas Oxygen / From: AA000001	-	2	Enquire
13A506	YQR000050	CLIP - WIRING	YQR000050 CLIP - WIRING From: AA000001	-	8	Enquire
5202	LR020940	EXTENSION - EXHAUST PIPE	LR020940 EXTENSION - EXHAUST PIPE 5.0L OHC SGDI SC V8 Petrol - AJ133, Rear Bumper - Body Kit / Kit Includes Fitting Parts / From: AA313069 / To: BA337138	-	1	Enquire
5202	LR029118	EXTENSION - EXHAUST PIPE	LR029118 EXTENSION - EXHAUST PIPE 5.0L OHC SGDI SC V8 Petrol - AJ133, Rear Bumper - Body Kit / Kit Includes Fitting Parts / From: BA337139 / To: BA338718	-	1	Enquire
5202	LR059415	EXTENSION - EXHAUST PIPE	LR059415 EXTENSION - EXHAUST PIPE 5.0L OHC SGDI SC V8 Petrol - AJ133, Rear Bumper - Body Kit / Kit Includes Fitting Parts / From: BA338719	-	1	Enquire
5230	LR011070	MUFFLER - CENTER	LR011070 MUFFLER - CENTER From: AA000001 / To: CA380956	-	1	Enquire
5230	LR039779	MUFFLER - CENTER	LR039779 MUFFLER - CENTER 5.0L OHC SGDI SC V8 Petrol - AJ133 / From: CA380957	-	1	Enquire
