View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011206	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008872	RING - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011267	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011271	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011274	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011270	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011505	PAN - ENGINE OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4594914	PLUG - OIL DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012640	SENSOR - OIL LEVEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008876	SENSOR - ENGINE SPEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010727	TUBE - OIL EXTRACTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011312	TUBE - OIL	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HR1	LR011206	O-RING	LR011206 O-RING Tube - Oil Extraction / From: AA000001	-	1	Enquire
HR2	LR008872	RING - RUBBER	LR008872 RING - RUBBER 14 x 1MM, Sensor - Crankshaft Position - CPS / From: AA000001	-	1	Enquire
HS1	LR011267	SCREW	LR011267 SCREW M6 X 20MM, Tube Indicator / From: AA000001	-	4	Enquire
HS2	LR011271	SCREW	LR011271 SCREW M6 x 30MM, Sensor - Oil Level / From: AA000001	-	3	Enquire
HS3	LR011700	SCREW	LR011700 SCREW M8 X 35MM, Oil Pan / From: AA000001	-	10	Enquire
HS4	LR011274	SCREW	LR011274 SCREW Oil Pan / From: AA000001	-	6	Enquire
HS5	LR011270	SCREW	LR011270 SCREW M6 x 25MM, To Crankshaft Sensor, Torx / From: AA000001	-	1	Enquire
6C624	LR012640	SENSOR - OIL LEVEL	LR012640 SENSOR - OIL LEVEL From: AA000001	-	1	Enquire
7H103	LR008876	SENSOR - ENGINE SPEED	LR008876 SENSOR - ENGINE SPEED Sensor - Crankshaft Position - CPS / From: AA000001	-	1	Enquire
6675	LR011505	PAN - ENGINE OIL	LR011505 PAN - ENGINE OIL From: AA000001	-	1	Enquire
6730	4594914	PLUG - OIL DRAIN	4594914 PLUG - OIL DRAIN M14 X 1.5 / From: AA000001	-	1	Enquire
67540A	LR010727	TUBE - OIL EXTRACTION	LR010727 TUBE - OIL EXTRACTION Upper / From: AA000001	-	1	Enquire
67540B	LR011312	TUBE - OIL	LR011312 TUBE - OIL Lower / From: AA000001	-	1	Enquire

Haven't found what you're looking for?

View Cart / Checkout

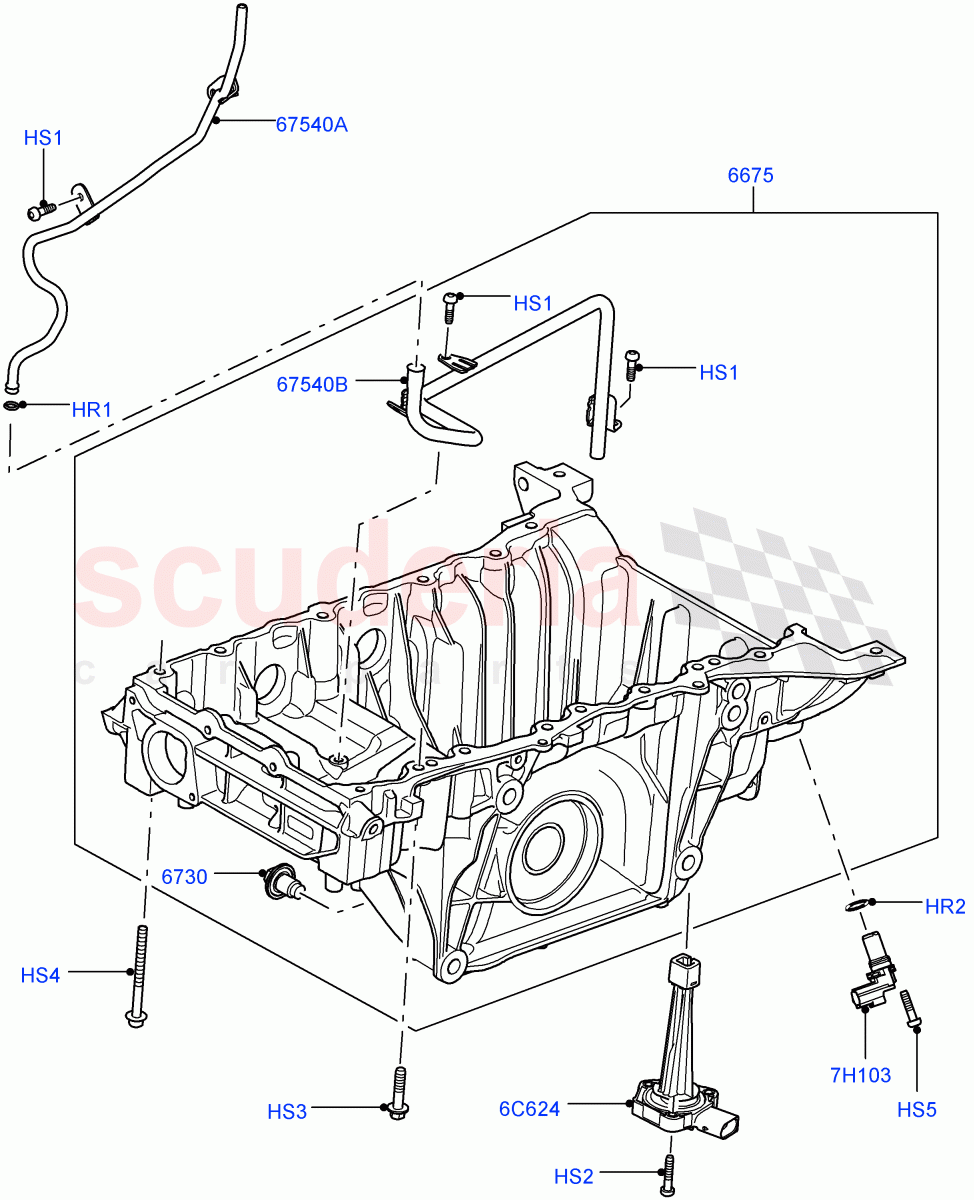

Oil Pan/Oil Level Indicator (5.0L Ohc Sgdi Sc V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]
