Cylinder Head (5.0L Ohc Sgdi Sc V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Cylinder Head (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001)

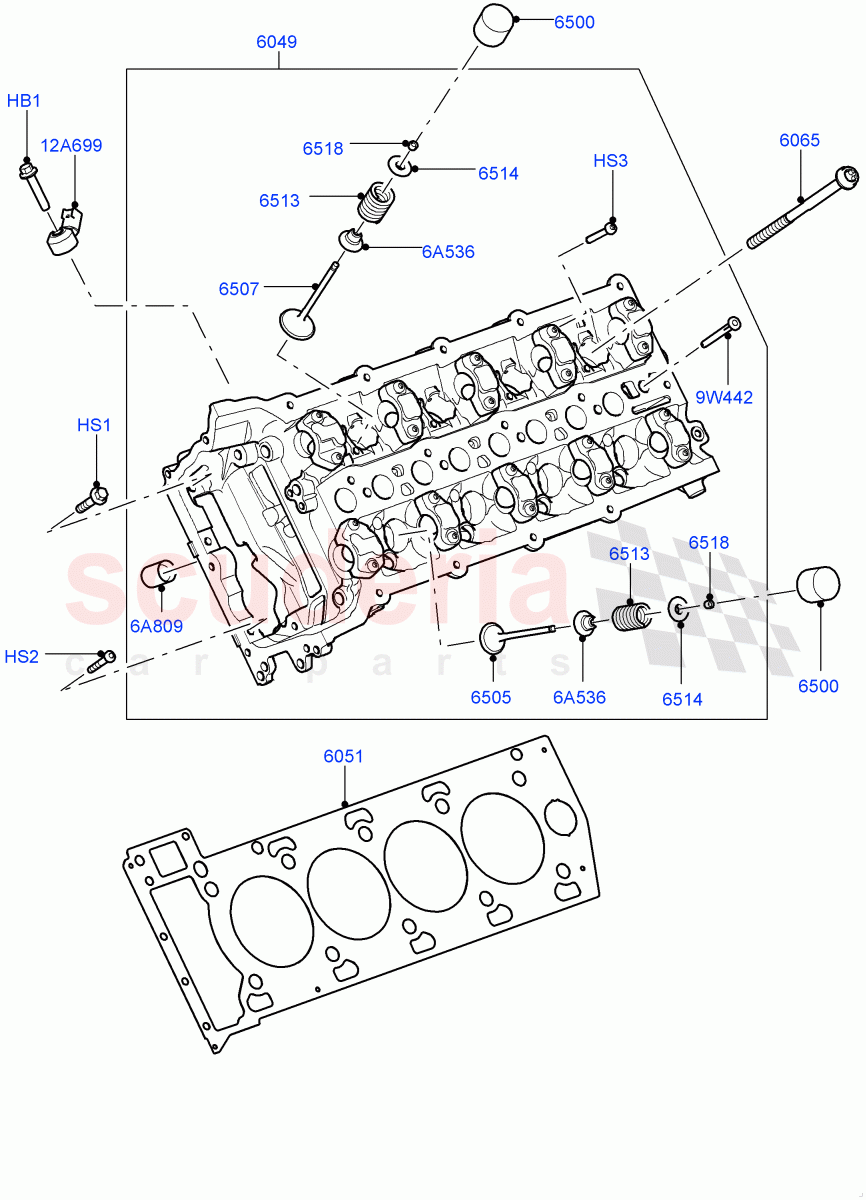

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR010903 BOLT $2.98 To Order
Photo Part No Description Price (each) Stock
LR011700 SCREW $1.34 IN STOCK
Photo Part No Description Price (each) Stock
LR010905 SCREW $1.11 IN STOCK
Photo Part No Description Price (each) Stock
LR011271 SCREW $1.19 IN STOCK
Photo Part No Description Price (each) Stock
LR011265 CYLINDER HEAD $2,730.38 To Order
LR011266 CYLINDER HEAD $3,408.10 To Order
LR026148 CYLINDER HEAD $3,172.23 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR010692 GASKET-CYLINDER HEAD $34.70 To Order
LR010693 GASKET-CYLINDER HEAD $68.98 To Order
LR105294 GASKET-CYLINDER HEAD $104.56 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4677857 BOLT - HEX.HEAD $6.59 To Order
LR026143 BOLT - HEX.HEAD $6.09 To Order
Photo Part No Description Price (each) Stock
4624031 TAPPET - VALVE $11.21 To Order
4624032 TAPPET - VALVE $9.36 To Order
4701390 TAPPET - VALVE $10.95 To Order
...and 97 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR010698 VALVE - EXHAUST $22.68 To Order
LR035551 VALVE - EXHAUST $31.82 To Order
LR055528 VALVE - EXHAUST $28.47 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR010863 VALVE - INLET $36.28 To Order
Photo Part No Description Price (each) Stock
LR010701 SPRING - VALVE $2.93 To Order
LR038167 SPRING - VALVE $57.46 To Order
Photo Part No Description Price (each) Stock
LR010702 RETAINER - VALVE SPRING $4.32 To Order
Photo Part No Description Price (each) Stock
LR008878 COLLET - VALVE SPRING RETAINER $1.30 IN STOCK
Photo Part No Description Price (each) Stock
LR010753 SEAT - SPRING $2.93 To Order
LR038164 Seat - Spring Enquire To Order
LR054369 SEAT - SPRING $5.02 To Order
Photo Part No Description Price (each) Stock
LR077674 VALVE - CHECK $9.16 To Order
Photo Part No Description Price (each) Stock
LR011996 TUBE - DRAIN $6.71 To Order
Photo Part No Description Price (each) Stock
LR008877 SENSOR - ENGINE KNOCK $107.73 To Order
View All
Cylinder Head (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR010903
BOLT
knock sensor, M8 x 40MM / From: AA000001 		$2.98 4
HS1 LR011700
SCREW
M8 X 35MM / From: AA000001
IN STOCK 		$1.34 2
HS2 LR010905
SCREW
M6 x 35MM / From: AA000001
IN STOCK 		$1.11 4
HS3 LR011271
SCREW
M6 x 30MM / From: AA000001
IN STOCK 		$1.19 40
6A536 LR010753
SEAT - SPRING
From: AA000001 / To: CA374367 		$2.93 32
6A536 LR038164
Seat - Spring
From: CA374368 / To: CA390000 		- 32 Enquire
6A536 LR054369
SEAT - SPRING
From: CA390001 		$5.02 32
6A809 LR077674
VALVE - CHECK 		$9.16 1
9W442 LR011996
TUBE - DRAIN
Drain / From: AA000001 		$6.71 2
12A699 LR008877
SENSOR - ENGINE KNOCK
From: AA000001 		$107.73 4
6049 LR011265
CYLINDER HEAD
RH / From: AA000001 / To: BA337055 		$2,730.38 1
6049 LR011266
CYLINDER HEAD
LH / From: AA000001 / To: BA337055 		$3,408.10 1
6049 LR026148
CYLINDER HEAD
RH / From: BA337056 / To: CA374367 		$3,172.23 1
6049 LR026150
CYLINDER HEAD
LH / From: BA337056 / To: CA374367 		$3,172.23 1
6049 LR038754
CYLINDER HEAD
RH / From: CA374368 / To: CA388716 		$2,899.85 1
6049 LR038755
CYLINDER HEAD
LH / From: CA374368 / To: CA388716 		$2,843.00 1
6049 LR082798
CYLINDER HEAD
RH / From: CA388717 / To: CA393621 		$2,914.07 1
6049 LR082799
CYLINDER HEAD
LH / From: CA388717 / To: CA393621 		$2,914.07 1
6049 LR101117
CYLINDER HEAD
RH / From: CA393622 		$2,606.08 1
6049 LR101118
CYLINDER HEAD
LH / From: CA393622 		$2,486.07 1
6051 LR010692
GASKET-CYLINDER HEAD
RH, With M10 Thread For Cylinder Head Mounting Bolt / From: AA000001 / To: BA337055 		$34.70 1
6051 LR010693
GASKET-CYLINDER HEAD
LH, With M10 Thread For Cylinder Head Mounting Bolt / From: AA000001 / To: BA337055 		$68.98 1
6051 LR105294
GASKET-CYLINDER HEAD
RH, With M10 Or M11 Thread For Cylinder Head Mounting Bolt / From: BA337056 / To: BA420401 		$104.56 1
6051 LR181763
GASKET - CYLINDER HEAD
LH, With M10 Or M11 Thread For Cylinder Head Mounting Bolt / From: BA337056 / To: BA420401 		$104.56 1
6051 LR084186
GASKET-CYLINDER HEAD
RH, With M10 Or M11 Thread For Cylinder Head Mounting Bolt / From: BA420402 		$104.56 1
6051 LR084185
GASKET-CYLINDER HEAD
LH, With M10 Or M11 Thread For Cylinder Head Mounting Bolt / From: BA420402 		$104.56 1
6065 4677857
BOLT - HEX.HEAD
Before Ordering Please Refer To SSM (Special Service Message) - 59037, M10 X 175MM, Please Order This Bolt For Engine Numbers Up To 11122107524 / From: AA000001 		$6.59 20
6065 LR026143
BOLT - HEX.HEAD
Before Ordering Please Refer To SSM (Special Service Message) - 59037, Before Ordering Please Refer To SSM (Special Service Message) - 61197, M11 X 178, Please Order This Bolt For Engine Numbers From 11122107525 / From: AA000001 		$6.09 20
6500 4624031
TAPPET - VALVE
2.950mm / From: AA000001 / To: CA374367 		$11.21 -
6500 4624032
TAPPET - VALVE
2.965MM / From: AA000001 / To: CA374367 		$9.36 -
6500 4701390
TAPPET - VALVE
2.98MM / From: AA000001 / To: CA374367 		$10.95 -
6500 4624034
TAPPET - VALVE
2.995MM / From: AA000001 / To: CA374367 		$9.09 -
6500 4624037
TAPPET - VALVE
3.010MM / From: AA000001 / To: CA374367 		$9.31 -
6500 4624038
TAPPET - VALVE
3.025MM / From: AA000001 / To: CA374367 		$9.00 -
6500 4624040
TAPPET - VALVE
3.040MM / From: AA000001 / To: CA374367 		$11.21 -
6500 4624043
TAPPET - VALVE
3.055MM / From: AA000001 / To: CA374367 		$9.12 -
6500 4624045
TAPPET - VALVE
3.070MM / From: AA000001 / To: CA374367 		$9.36 -
6500 4624049
TAPPET - VALVE
3.085MM / From: AA000001 / To: CA374367 		$9.36 -
6500 4624051
TAPPET - VALVE
3.100MM / From: AA000001 / To: CA374367 		$11.21 -
6500 4624054
TAPPET - VALVE
3.115MM / From: AA000001 / To: CA374367 		$9.36 -
6500 4624056
TAPPET - VALVE
3.130MM / From: AA000001 / To: CA374367 		$10.95 -
6500 4624060
TAPPET - VALVE
3.145MM / From: AA000001 / To: CA374367 		$7.47 -
6500 4624061
TAPPET - VALVE
3.160MM / From: AA000001 / To: CA374367 		$11.17 -
6500 4624062
TAPPET - VALVE
3.175MM / From: AA000001 / To: CA374367 		$9.12 -
6500 4624063
TAPPET - VALVE
3.190MM / From: AA000001 / To: CA374367 		$10.60 -
6500 4624064
TAPPET - VALVE
3.205MM / From: AA000001 / To: CA374367 		$10.60 -
6500 4649518
TAPPET - VALVE
3.220MM / From: AA000001 / To: CA374367 		$5.63 -
6500 4624069
TAPPET - VALVE
3.235MM / From: AA000001 / To: CA374367 		$11.49 -
6500 4624071
TAPPET - VALVE
3.250MM / From: AA000001 / To: CA374367 		$11.49 -
6500 LR037298
TAPPET - VALVE
3.265MM / From: AA000001 / To: CA374367 		$11.60 -
6500 LR037306
TAPPET - VALVE
3.280MM / From: AA000001 / To: CA374367 		$11.10 -
6500 4624074
TAPPET - VALVE
3.295MM / From: AA000001 / To: CA374367 		$11.49 -
6500 LR037308
TAPPET - VALVE
3.310MM / From: AA000001 / To: CA374367
IN STOCK 		$11.60 -
6500 LR037309
TAPPET - VALVE
3.325MM / From: AA000001 / To: CA374367 		$11.60 -
6500 LR037310
TAPPET - VALVE
3.340MM / From: AA000001 / To: CA374367
IN STOCK 		$11.60 -
6500 LR037311
TAPPET - VALVE
3.355MM / From: AA000001 / To: CA374367
IN STOCK 		$11.10 -
6500 LR037312
TAPPET - VALVE
3.370MM / From: AA000001 / To: CA374367 		$11.45 -
6500 LR037313
TAPPET - VALVE
3.385MM / From: AA000001 / To: CA374367
IN STOCK 		$11.60 -
6500 LR037314
TAPPET - VALVE
3.400MM / From: AA000001 / To: CA374367 		$11.60 -
6500 LR037315
TAPPET - VALVE
3.415MM / From: AA000001 / To: CA374367 		$11.60 -
6500 4649519
TAPPET - VALVE
3.430MM / From: AA000001 / To: CA374367 		$5.63 -
6500 4624091
TAPPET - VALVE
3.445MM / From: AA000001 / To: CA374367 		$11.49 -
6500 LR037318
TAPPET - VALVE
3.460MM / From: AA000001 / To: CA374367
IN STOCK 		$10.56 -
6500 4624095
TAPPET - VALVE
3.475MM / From: AA000001 / To: CA374367 		$9.36 -
6500 4624096
TAPPET - VALVE
3.490MM / From: AA000001 / To: CA374367 		$11.21 -
6500 4624099
TAPPET - VALVE
3.505MM / From: AA000001 / To: CA374367 		$9.36 -
6500 4649521
TAPPET - VALVE
3.520MM / From: AA000001 / To: CA374367 		$5.51 -
6500 4624102
TAPPET - VALVE
3.535MM / From: AA000001 / To: CA374367 		$9.36 -
6500 4624103
TAPPET - VALVE
3.550MM / From: AA000001 / To: CA374367 		$11.21 -
6500 4624104
TAPPET - VALVE
3.565MM / From: AA000001 / To: CA374367 		$10.95 -
6500 4624107
TAPPET - VALVE
3.580MM / From: AA000001 / To: CA374367 		$10.39 -
6500 4624108
TAPPET - VALVE
3.595MM / From: AA000001 / To: CA374367 		$10.60 -
6500 4624110
TAPPET - VALVE
3.610MM / From: AA000001 / To: CA374367 		$10.60 -
6500 4624111
TAPPET - VALVE
3.625MM / From: AA000001 / To: CA374367 		$10.60 -
6500 4624112
TAPPET - VALVE
3.640MM / From: AA000001 / To: CA374367 		$9.36 -
6500 4624113
TAPPET - VALVE
3.655MM / From: AA000001 / To: CA374367 		$10.60 -
6500 4624115
TAPPET - VALVE
3.670MM / From: AA000001 / To: CA374367 		$10.60 -
6500 4649522
TAPPET - VALVE
3.685MM / From: AA000001 / To: CA374367 		$10.55 -
6500 LR037205
TAPPET - VALVE
2.950mm / From: CA374368 		$11.60 -
6500 LR037211
TAPPET - VALVE
2.965MM / From: CA374368 		$10.93 -
6500 LR037229
TAPPET - VALVE
2.98MM / From: CA374368 		$10.47 -
6500 LR037243
TAPPET - VALVE
2.995MM / From: CA374368 		$10.47 -
6500 LR037252
TAPPET - VALVE
3.010MM / From: CA374368 		$9.60 -
6500 LR037253
TAPPET - VALVE
3.025MM / From: CA374368 		$9.20 -
6500 LR037254
TAPPET - VALVE
3.040MM / From: CA374368 		$11.60 -
6500 LR037258
TAPPET - VALVE
3.055MM / From: CA374368 		$10.56 -
6500 LR037262
TAPPET - VALVE
3.070MM / From: CA374368 		$10.10 -
6500 LR037264
TAPPET - VALVE
3.085MM / From: CA374368 		$11.60 -
6500 LR037267
TAPPET - VALVE
3.100MM / From: CA374368 		$11.60 -
6500 LR037269
TAPPET - VALVE
3.115MM / From: CA374368 		$11.05 -
6500 LR037272
TAPPET - VALVE
3.130MM / From: CA374368 		$11.05 -
6500 LR037275
TAPPET - VALVE
3.145MM / From: CA374368 		$11.60 -
6500 LR037279
TAPPET - VALVE
3.160MM / From: CA374368 		$11.05 -
6500 LR037284
TAPPET - VALVE
3.175MM / From: CA374368 		$11.05 -
6500 LR037286
TAPPET - VALVE
3.190MM / From: CA374368 		$11.10 -
6500 LR037287
TAPPET - VALVE
3.205MM / From: CA374368 		$11.60 -
6500 LR037288
TAPPET - VALVE
3.220MM / From: CA374368 		$11.45 -
6500 LR037289
TAPPET - VALVE
3.235MM / From: CA374368 		$11.10 -
6500 LR037292
TAPPET - VALVE
3.250MM / From: CA374368 		$11.10 -
6500 LR037298
TAPPET - VALVE
3.265MM / From: CA374368 		$11.60 -
6500 LR037306
TAPPET - VALVE
3.280MM / From: CA374368 		$11.10 -
6500 LR037307
TAPPET - VALVE
3.295MM / From: CA374368 		$11.60 -
6500 LR037308
TAPPET - VALVE
3.310MM / From: CA374368
IN STOCK 		$11.60 -
6500 LR037309
TAPPET - VALVE
3.325MM / From: CA374368 		$11.60 -
6500 LR037310
TAPPET - VALVE
3.340MM / From: CA374368
IN STOCK 		$11.60 -
6500 LR037311
TAPPET - VALVE
3.355MM / From: CA374368
IN STOCK 		$11.10 -
6500 LR037312
TAPPET - VALVE
3.370MM / From: CA374368 		$11.45 -
6500 LR037313
TAPPET - VALVE
3.385MM / From: CA374368
IN STOCK 		$11.60 -
6500 LR037314
TAPPET - VALVE
3.400MM / From: CA374368 		$11.60 -
6500 LR037315
TAPPET - VALVE
3.415MM / From: CA374368 		$11.60 -
6500 LR037316
TAPPET - VALVE
3.430MM / From: CA374368 		$11.45 -
6500 LR037317
TAPPET - VALVE
3.445MM / From: CA374368 		$11.60 -
6500 LR037318
TAPPET - VALVE
3.460MM / From: CA374368
IN STOCK 		$10.56 -
6500 LR037322
TAPPET - VALVE
3.475MM / From: CA374368
IN STOCK 		$11.60 -
6500 LR037328
TAPPET - VALVE
3.490MM / From: CA374368 		$11.60 -
6500 LR037329
TAPPET - VALVE
3.505MM / From: CA374368 		$11.10 -
6500 LR037330
TAPPET - VALVE
3.520MM / From: CA374368 		$11.45 -
6500 LR037331
TAPPET - VALVE
3.535MM / From: CA374368 		$10.56 -
6500 LR037332
TAPPET - VALVE
3.550MM / From: CA374368 		$11.05 -
6500 LR037333
TAPPET - VALVE
3.565MM / From: CA374368 		$11.60 -
6500 LR037334
TAPPET - VALVE
3.580MM / From: CA374368 		$11.10 -
6500 LR037335
TAPPET - VALVE
3.595MM / From: CA374368 		$11.05 -
6500 LR037336
TAPPET - VALVE
3.610MM / From: CA374368 		$11.60 -
6500 LR037343
TAPPET - VALVE
3.625MM / From: CA374368 		$11.60 -
6500 LR037344
TAPPET - VALVE
3.640MM / From: CA374368 		$11.60 -
6500 LR037345
TAPPET - VALVE
3.655MM / From: CA374368 		$11.60 -
6500 LR037346
TAPPET - VALVE
3.670MM / From: CA374368 		$10.56 -
6500 LR037347
TAPPET - VALVE
3.685MM / From: CA374368 		$11.60 -
6505 LR010698
VALVE - EXHAUST
From: AA000001 / To: CA393569 		$22.68 16
6505 LR035551
VALVE - EXHAUST
From: CA393570 / To: CA393621 		$31.82 16
6505 LR055528
VALVE - EXHAUST
From: CA393570 / To: CA393621 		$28.47 16
6505 LR082739
VALVE - EXHAUST
From: CA393622 		$28.58 16
6507 LR010863
VALVE - INLET
From: AA000001 		$36.28 16
6513 LR010701
SPRING - VALVE
From: AA000001 / To: CA374367 		$2.93 32
6513 LR038167
SPRING - VALVE
From: CA374368 		$57.46 32
6514 LR010702
RETAINER - VALVE SPRING
From: AA000001 		$4.32 32
6518 LR008878
COLLET - VALVE SPRING RETAINER
From: AA000001
IN STOCK 		$1.30 64

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
