Name: Pulleys And Drive Belts (Secondary Drive) (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMAA000001)
Rating: 5.0 (1 reviews)

Pulleys And Drive Belts (Secondary Drive) (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Pulleys And Drive Belts (Secondary Drive) (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133...

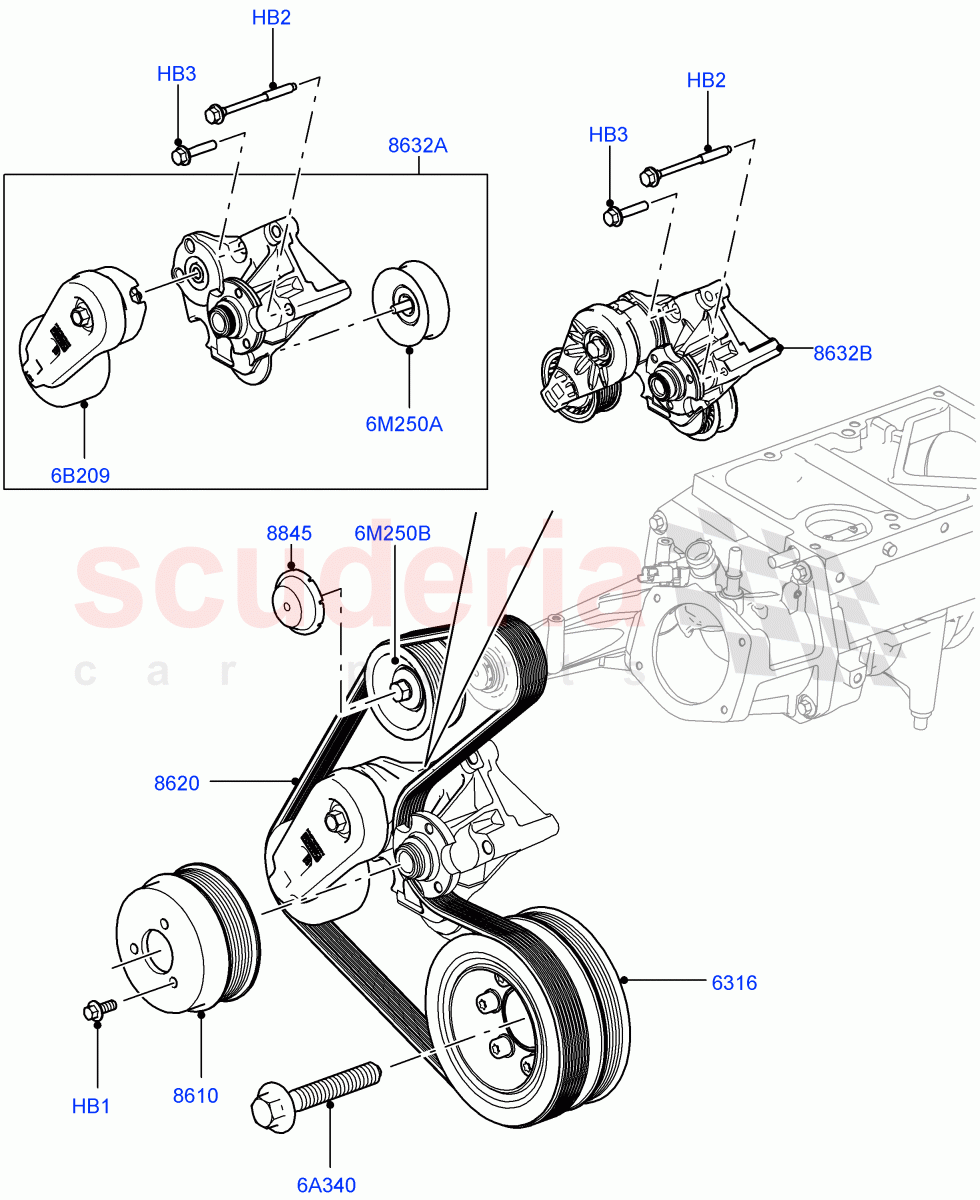

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR005074	BOLT	$1.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016837	BOLT	$1.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011972	PULLEY - CRANKSHAFT	$539.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011325	PULLEY - FAN	$97.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011327	BELT - ACCESSORY DRIVE	$73.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022816	CAP - IDLER PULLEY	$3.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011952	BOLT M18 X110	$22.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011335	TENSIONER	$158.12	To Order
	LR039517	TENSIONER - DRIVE BELT	$155.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011786	KIT - TENSIONER PULLEY AND BRACKET	$324.20	To Order
	LR025977	KIT - TENSIONER PULLEY AND BRACKET	$387.58	To Order
	LR035556	BRACKET WITH IDLER AND BEARING FAN	$398.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010725	PULLEY - IDLER	$56.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010724	PULLEY - IDLER	$43.40	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM, Pulley / From: AA000001 IN STOCK	$2.23	3
HB2	LR005074	BOLT	LR005074 BOLT Bracket, Hexagonal Head, M8 X 96.5 / From: AA000001	$1.11	1
HB3	LR016837	BOLT IN STOCK	LR016837 BOLT Bracket, M8 x 40MM / From: AA000001 IN STOCK	$1.00	3
6A340	LR011952	BOLT M18 X110 IN STOCK	LR011952 BOLT M18 X110 M16 X 118MM, Pulley - Crankshaft / From: AA000001 IN STOCK	$22.60	1
6B209	LR011335	TENSIONER	LR011335 TENSIONER Includes Bolt, Secondary Drive / From: AA000001 / To: CA389960	$158.12	1
6B209	LR039517	TENSIONER - DRIVE BELT	LR039517 TENSIONER - DRIVE BELT Includes Bolt, Secondary / From: CA389961	$155.06	1
6M250A	LR010725	PULLEY - IDLER	LR010725 PULLEY - IDLER Primary Drive / From: AA000001	$56.23	1
6M250B	LR010724	PULLEY - IDLER	LR010724 PULLEY - IDLER Includes Bolt, Secondary Drive / From: AA000001	$43.40	1
6316	LR011972	PULLEY - CRANKSHAFT	LR011972 PULLEY - CRANKSHAFT From: AA000001	$539.80	1
8610	LR011325	PULLEY - FAN	LR011325 PULLEY - FAN Fan / From: AA000001	$97.63	1
8620	LR011327	BELT - ACCESSORY DRIVE	LR011327 BELT - ACCESSORY DRIVE 1444mm Length, Secondary Drive / From: AA000001	$73.27	1
8632A	LR011786	KIT - TENSIONER PULLEY AND BRACKET	LR011786 KIT - TENSIONER PULLEY AND BRACKET With Idler, With Tensioner Assy / From: AA000001 / To: BA338660	$324.20	1
8632A	LR025977	KIT - TENSIONER PULLEY AND BRACKET	LR025977 KIT - TENSIONER PULLEY AND BRACKET With Idler, With Tensioner Assy / From: BA338661 / To: CA393569	$387.58	1
8632A	LR035556	BRACKET WITH IDLER AND BEARING FAN	LR035556 BRACKET WITH IDLER AND BEARING FAN With Idler, With Tensioner Assy / From: CA393570	$398.31	1
8845	LR022816	CAP - IDLER PULLEY	LR022816 CAP - IDLER PULLEY idler / From: CA393570	$3.12	1
