Supply & Return Hoses - Power Strg (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol] - Supply & Return Hoses - Power Strg (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

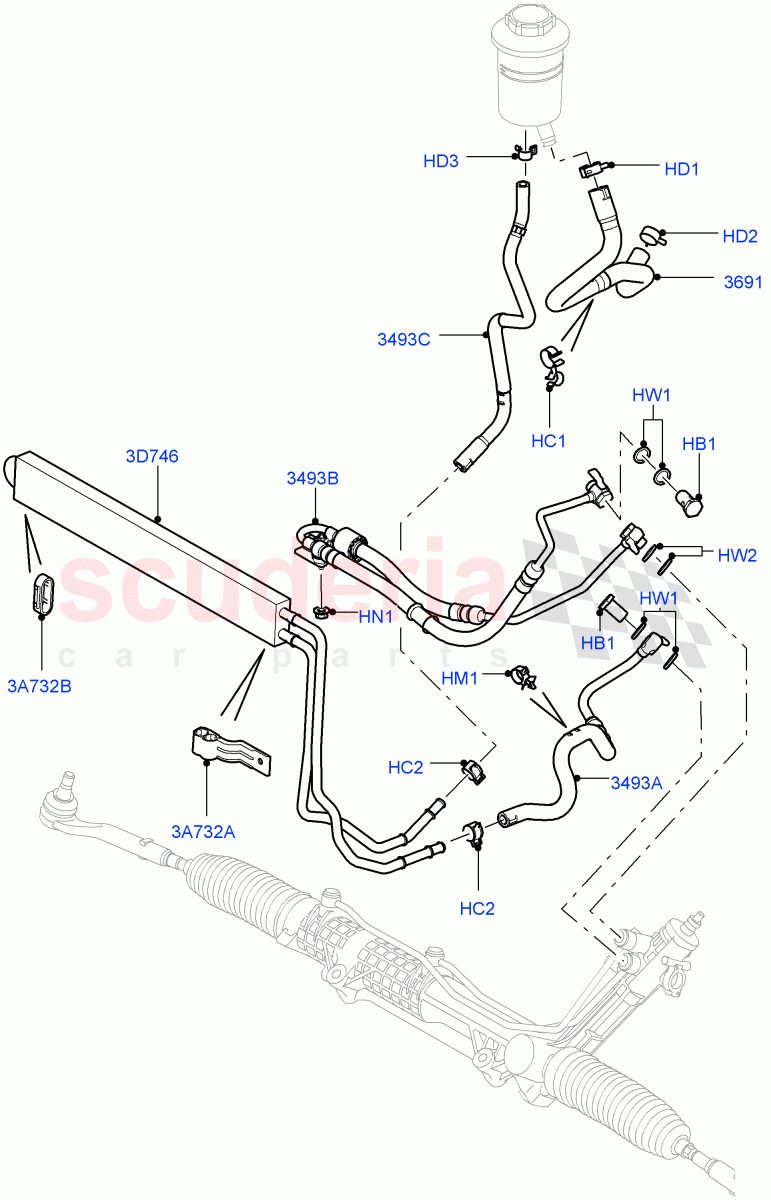

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	QFM100041	BOLT - BANJO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	QYC500020	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	QGM500040	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	QGM000010	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	QGM000020	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	QGM000030	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	QYD000020	STRAP - CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH000110	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	QGK100051	WASHER	Enquire	To Order
	LR020213	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	QGK500010	WASHER	Enquire	To Order
	LR020212	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	QEH500600	HOSE - RESERVOIR TO PUMP	Enquire	To Order
	LR023281	HOSE - RESERVOIR TO PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012758	HOSE	Enquire	To Order
	LR012757	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018464	TUBE	Enquire	To Order
	LR018463	TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019279	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	QGC500250	COIL - COOLING	Enquire	To Order
	LR048086	COIL - COOLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	QEU500080	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	QEU500070	BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	QFM100041	BOLT - BANJO	QFM100041 BOLT - BANJO Banjo Bolt / From: AA000001	-	2	Enquire
HC1	QYC500020	CLIP	QYC500020 CLIP Double / From: AA000001	-	1	Enquire
HC2	QGM500040	CLIP	QGM500040 CLIP Power Steering Hose, Single / From: AA000001	-	2	Enquire
HD1	QGM000010	CLAMP	QGM000010 CLAMP Hose / From: AA000001	-	1	Enquire
HD2	QGM000020	CLIP	QGM000020 CLIP Hose / From: AA000001	-	1	Enquire
HD3	QGM000030	CLIP	QGM000030 CLIP Hose / From: AA000001	-	1	Enquire
HM1	QYD000020	STRAP - CABLE	QYD000020 STRAP - CABLE Cable Tie With Holder	-	1	Enquire
HN1	RYH000110	NUT - FLANGED	RYH000110 NUT - FLANGED Flanged, M6 / From: AA000001	-	1	Enquire
HW1	QGK100051	WASHER	QGK100051 WASHER 16MM / From: AA000001 / To: BA346949	-	2	Enquire
HW1	LR020213	WASHER	LR020213 WASHER 16MM / From: BA346950	-	2	Enquire
HW2	QGK500010	WASHER	QGK500010 WASHER 14MM / From: AA000001 / To: BA346949	-	2	Enquire
HW2	LR020212	WASHER	LR020212 WASHER 14MM / From: BA346950	-	2	Enquire
3A732A	QEU500080	BRACKET	QEU500080 BRACKET LH, Radiator Fitting / From: AA000001	-	1	Enquire
3A732B	QEU500070	BRACKET	QEU500070 BRACKET RH, Radiator Fitting / From: AA000001	-	1	Enquire
3D746	QGC500250	COIL - COOLING	QGC500250 COIL - COOLING From: AA000001 / To: BA337610	-	1	Enquire
3D746	LR048086	COIL - COOLING	LR048086 COIL - COOLING From: BA337611	-	1	Enquire
3493A	LR012758	HOSE	LR012758 HOSE LHD / Gear To Cooler / From: AA000001	-	1	Enquire
3493A	LR012757	HOSE	LR012757 HOSE RHD / Gear To Cooler / From: AA000001	-	1	Enquire
3493B	LR018464	TUBE	LR018464 TUBE LHD / Pump To Gear / From: AA000001	-	1	Enquire
3493B	LR018463	TUBE	LR018463 TUBE RHD / Pump To Gear / From: AA000001	-	1	Enquire
3493C	LR019279	HOSE	LR019279 HOSE Cooler To Reservoir / From: AA000001	-	1	Enquire
3691	QEH500600	HOSE - RESERVOIR TO PUMP	QEH500600 HOSE - RESERVOIR TO PUMP Reservoir To Pump / From: AA000001 / To: AA328295	-	1	Enquire
3691	LR023281	HOSE - RESERVOIR TO PUMP	LR023281 HOSE - RESERVOIR TO PUMP Reservoir To Pump / From: AA328296	-	1	Enquire
