Front Seat Pads/Valances & Heating (Autobiography Ultimate Edition) ((V) Fromba344356)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol] - Front Seat Pads/Valances & Heating (Autobiography Ultimate Edition) ((V) FROMBA344356)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR032039 HINGE Enquire To Order
LR032038 HINGE Enquire To Order
Photo Part No Description Price (each) Stock
LR033709 BACK - SEAT Enquire To Order
LR033710 BACK - SEAT Enquire To Order
LR033711 BACK - SEAT Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR031067 COVER AND PAD - FRONT SEAT BACK Enquire To Order
LR011008 COVER AND PAD - FRONT SEAT BACK Enquire To Order
Photo Part No Description Price (each) Stock
LR033714 PANEL - SEAT BACK Enquire To Order
LR033713 PANEL - SEAT BACK Enquire To Order
Photo Part No Description Price (each) Stock
LR033691 COVER - IPAD Enquire To Order
LR033690 COVER - IPAD Enquire To Order
LR033688 COVER - IPAD Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR031056 COVER - ACCESS HOLE Enquire To Order
LR031057 COVER - ACCESS HOLE Enquire To Order
LR031182 COVER - ACCESS HOLE Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR031055 VALANCE - SEAT SIDE Enquire To Order
LR031071 VALANCE - SEAT SIDE Enquire To Order
LR031278 VALANCE - SEAT SIDE Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR045065 BRACKET - FRONT SEAT BACK FRAME Enquire To Order
Photo Part No Description Price (each) Stock
LR031053 COVER - SEAT CUSHION Enquire To Order
LR031052 COVER - SEAT CUSHION Enquire To Order
LR031066 COVER - SEAT CUSHION Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR031050 COVER - SEAT BACK Enquire To Order
LR031051 COVER - SEAT BACK Enquire To Order
LR031064 COVER - SEAT BACK Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR031048 PAD - SEAT BACK Enquire To Order
LR031062 PAD - SEAT BACK Enquire To Order
Photo Part No Description Price (each) Stock
LR031275 SWITCH - STEERING WHEEL Enquire To Order
Photo Part No Description Price (each) Stock
LR033715 SLIDER MECHANISM - IPAD Enquire To Order
LR033717 SLIDER MECHANISM - IPAD Enquire To Order
LR038947 SLIDER MECHANISM - IPAD Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR033707 BEZEL - IPAD Enquire To Order
LR033708 BEZEL - IPAD Enquire To Order
LR038949 BEZEL - IPAD Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR031059 HEADREST Enquire To Order
LR031058 HEADREST Enquire To Order
LR031060 HEADREST Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR031077 COVER - HINGE Enquire To Order
LR031076 COVER - HINGE Enquire To Order
Photo Part No Description Price (each) Stock
LR031078 COVER - HINGE Enquire To Order
LR031422 COVER - HINGE Enquire To Order
Photo Part No Description Price (each) Stock
LR031081 COVER - HINGE Enquire To Order
LR031423 COVER - HINGE Enquire To Order
View All

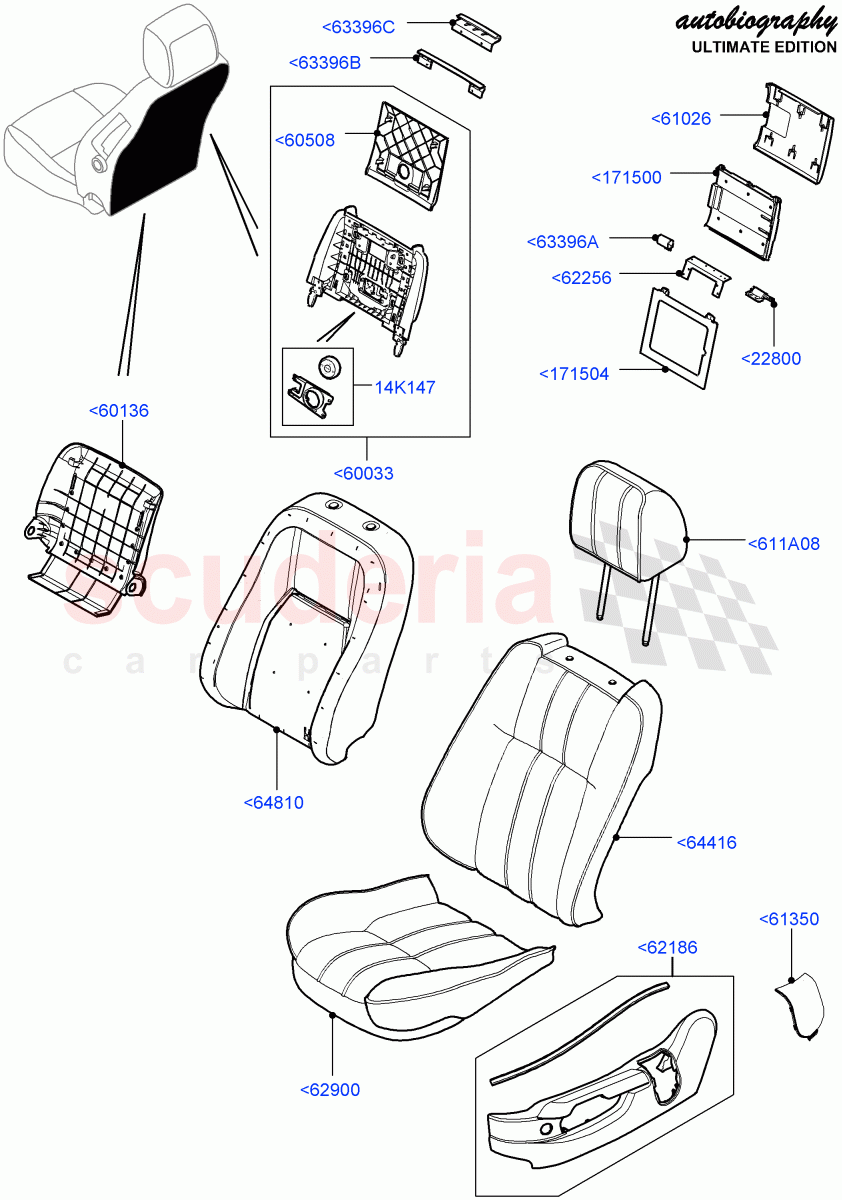

Front Seat Pads/Valances & Heating (Autobiography Ultimate Edition) ((V) FROMBA344356) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<611A08 LR031059
HEADREST
Requires VIN To Order / RH, Arabica/Ivory / From: BA344356 		- 1 Enquire
<611A08 LR031058
HEADREST
Requires VIN To Order / RH, Ivory/Dark Cherry / From: BA344356 		- 1 Enquire
<611A08 LR031060
HEADREST
Requires VIN To Order / LH, Ivory/Dark Cherry / From: BA344356 		- 1 Enquire
<611A08 LR031061
HEADREST
Requires VIN To Order / LH, Arabica/Ivory / From: BA344356 		- 1 Enquire
<22800 LR032039
HINGE
Requires VIN To Order / LH / From: BA344356 		- 2 Enquire
<22800 LR032038
HINGE
Requires VIN To Order / RH / From: BA344356 		- 2 Enquire
<60033 LR033709
BACK - SEAT
Requires VIN To Order / RH, Arabica / From: BA344356 		- 1 Enquire
<60033 LR033710
BACK - SEAT
Requires VIN To Order / RH, Ivory / From: BA344356 		- 1 Enquire
<60033 LR033711
BACK - SEAT
Requires VIN To Order / LH, Arabica / From: BA344356 		- 1 Enquire
<60033 LR033712
BACK - SEAT
Requires VIN To Order / LH, Ivory / From: BA344356 		- 1 Enquire
<60033 LR045176
BACK - SEAT
Requires VIN To Order / RH/LH / From: BA344356 		- 2 Enquire
<60136 LR031067
COVER AND PAD - FRONT SEAT BACK
Requires VIN To Order / Dark Cherry / From: BA344356 		- 2 Enquire
<60136 LR011008
COVER AND PAD - FRONT SEAT BACK
Arabica/Ivory / From: BA344356 		- 2 Enquire
<60508 LR033714
PANEL - SEAT BACK
Requires VIN To Order / Arabica / From: BA344356 		- 2 Enquire
<60508 LR033713
PANEL - SEAT BACK
Requires VIN To Order / Ivory / From: BA344356 		- 2 Enquire
<61026 LR033691
COVER - IPAD
Requires VIN To Order / RH, Arabica / From: BA344356 		- 1 Enquire
<61026 LR033690
COVER - IPAD
Requires VIN To Order / RH, Ivory / From: BA344356 		- 1 Enquire
<61026 LR033688
COVER - IPAD
Requires VIN To Order / LH, Arabica / From: BA344356 		- 1 Enquire
<61026 LR033689
COVER - IPAD
Requires VIN To Order / LH, Ivory / From: BA344356 		- 1 Enquire
<61350 LR031056
COVER - ACCESS HOLE
Requires VIN To Order / RH, Dark Cherry / From: BA344356 		- 1 Enquire
<61350 LR031057
COVER - ACCESS HOLE
Requires VIN To Order / RH, Arabica / From: BA344356 		- 1 Enquire
<61350 LR031182
COVER - ACCESS HOLE
Requires VIN To Order / LH, Dark Cherry / From: BA344356 		- 1 Enquire
<61350 LR031183
COVER - ACCESS HOLE
Requires VIN To Order / LH, Arabica / From: BA344356 		- 1 Enquire
<62186 LR031055
VALANCE - SEAT SIDE
Requires VIN To Order / RH, Arabica/Ivory, Supplied With Coloured Insulator / From: BA344356 		- 1 Enquire
<62186 LR031071
VALANCE - SEAT SIDE
Requires VIN To Order / LH, Arabica/Ivory, Supplied With Coloured Insulator / From: BA344356 		- 1 Enquire
<62186 LR031278
VALANCE - SEAT SIDE
Requires VIN To Order / RH, Dark Cherry/Ivory, Supplied With Coloured Insulator / From: BA344356 		- 1 Enquire
<62186 LR031279
VALANCE - SEAT SIDE
Requires VIN To Order / LH, Dark Cherry/Ivory, Supplied With Coloured Insulator / From: BA344356 		- 1 Enquire
<62256 LR045065
BRACKET - FRONT SEAT BACK FRAME
Requires VIN To Order / From: BA344356 		- 2 Enquire
<62900 LR031053
COVER - SEAT CUSHION
Requires VIN To Order / RH, Arabica/Ivory / From: BA344356 		- 1 Enquire
<62900 LR031052
COVER - SEAT CUSHION
Requires VIN To Order / RH, Ivory/Dark Cherry / From: BA344356 		- 1 Enquire
<62900 LR031066
COVER - SEAT CUSHION
Requires VIN To Order / LH, Arabica/Ivory / From: BA344356 		- 1 Enquire
<62900 LR031065
COVER - SEAT CUSHION
Requires VIN To Order / LH, Ivory/Dark Cherry / From: BA344356 		- 1 Enquire
<63396A LR031077
COVER - HINGE
Requires VIN To Order / RH, Cap / From: BA344356 		- 2 Enquire
<63396A LR031076
COVER - HINGE
Requires VIN To Order / LH, Cap / From: BA344356 		- 2 Enquire
<63396B LR031078
COVER - HINGE
Requires VIN To Order / Arabica, Front / From: BA344356 		- 2 Enquire
<63396B LR031422
COVER - HINGE
Requires VIN To Order / Front, Ivory / From: BA344356 		- 2 Enquire
<63396C LR031081
COVER - HINGE
Requires VIN To Order / Arabica, Rear / From: BA344356 		- 2 Enquire
<63396C LR031423
COVER - HINGE
Requires VIN To Order / Ivory, Rear / From: BA344356 		- 2 Enquire
<64416 LR031050
COVER - SEAT BACK
Requires VIN To Order / RH, Ivory/Dark Cherry / From: BA344356 		- 1 Enquire
<64416 LR031051
COVER - SEAT BACK
Requires VIN To Order / RH, Arabica/Ivory / From: BA344356 		- 1 Enquire
<64416 LR031064
COVER - SEAT BACK
Requires VIN To Order / LH, Arabica/Ivory / From: BA344356 		- 1 Enquire
<64416 LR031063
COVER - SEAT BACK
Requires VIN To Order / LH, Ivory/Dark Cherry / From: BA344356 		- 1 Enquire
<64810 LR031048
PAD - SEAT BACK
Requires VIN To Order / RH / From: BA344356 		- 1 Enquire
<64810 LR031062
PAD - SEAT BACK
Requires VIN To Order / LH / From: BA344356 		- 1 Enquire
<171500 LR033715
SLIDER MECHANISM - IPAD
Requires VIN To Order / RH, iPad 1 / From: BA344356 		- 1 Enquire
<171500 LR033717
SLIDER MECHANISM - IPAD
Requires VIN To Order / LH, iPad 1 / From: BA344356 		- 1 Enquire
<171500 LR038947
SLIDER MECHANISM - IPAD
Requires VIN To Order / RH, iPad 2 / From: BA344356 		- 1 Enquire
<171500 LR038948
SLIDER MECHANISM - IPAD
Requires VIN To Order / LH, iPad 2 / From: BA344356 		- 1 Enquire
<171504 LR033707
BEZEL - IPAD
Requires VIN To Order / RH, iPad 1 / From: BA344356 		- 1 Enquire
<171504 LR033708
BEZEL - IPAD
Requires VIN To Order / LH, iPad 1 / From: BA344356 		- 1 Enquire
<171504 LR038949
BEZEL - IPAD
Requires VIN To Order / RH, iPad 2 / From: BA344356 		- 1 Enquire
<171504 LR038950
BEZEL - IPAD
Requires VIN To Order / LH, iPad 2 / From: BA344356 		- 1 Enquire
14K147 LR031275
SWITCH - STEERING WHEEL
Requires VIN To Order / Rear Audio Control / From: BA344356 		- 2 Enquire
