Rear Brake Discs And Calipers (3.6L V8 32V DOHC EFi Diesel Lion, 5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001, (V) TOBA333985) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol] - Rear Brake Discs And Calipers (3.6L V8 32V DOHC EFi Diesel Lion, 5.0L OHC SGDI NA V8 Petrol -...

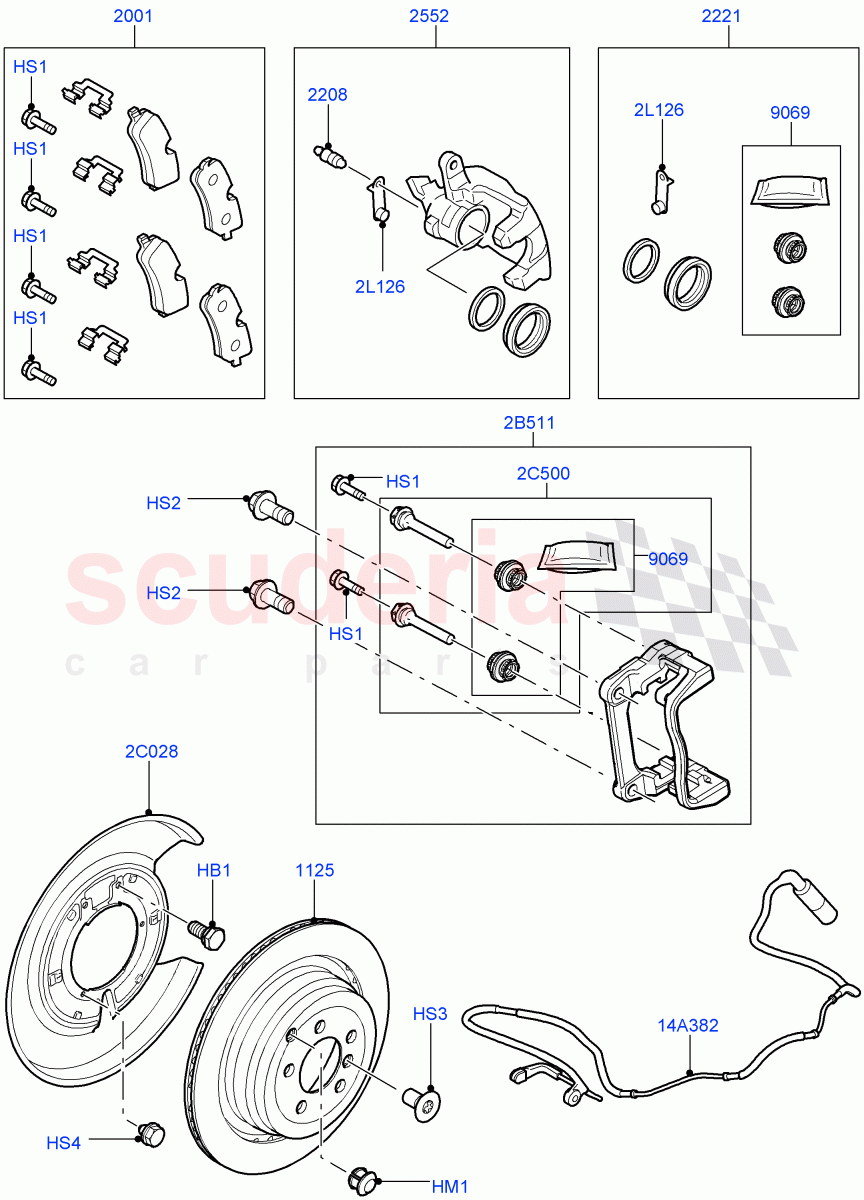

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	SYP000181	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SOD000010	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015546	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012823	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SDG100000L	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SYP000171	SCREW	Enquire	To Order
	LR018509	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017804	DISC - BRAKE - VENTED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015519	BRAKE PADS - WITH SPRINGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015523	SCREW - BLEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015520	KIT - CALIPER SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015586	CALIPER - BRAKE	Enquire	To Order
	LR015524	CALIPER - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015525	COVER - DUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015572	BRACKET	Enquire	To Order
	LR015567	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011715	SHIELD - BRAKE DISC SPLASH	Enquire	To Order
	LR011714	SHIELD - BRAKE DISC SPLASH	Enquire	To Order
	LR019452	SHIELD - BRAKE DISC SPLASH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR017032	KIT - LOCATING PIN BOLTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SEE500100	CAP - BLEED SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SOE500030	WIRE - BRAKE PAD WEAR WARNING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	SYP000181	SCREW	SYP000181 SCREW M8 x 15MM, Shield / From: AA000001	-	4	Enquire
HM1	SOD000010	GROMMET	SOD000010 GROMMET Plug / From: AA000001	-	2	Enquire
HS1	LR015546	BOLT	LR015546 BOLT Pin - Slide / From: AA000001	-	4	Enquire
HS2	LR012823	SCREW	LR012823 SCREW M12 X 1.5 X 29.5MM, To Caliper / From: AA000001	-	4	Enquire
HS3	SDG100000L	SCREW	SDG100000L SCREW Disc - Brake, M8 X 14 / From: AA000001	-	2	Enquire
HS4	SYP000171	SCREW	SYP000171 SCREW M6 X 10MM, Shield / From: AA000001 / To: BA336892	-	6	Enquire
HS4	LR018509	SCREW	LR018509 SCREW M6 X 10MM, Shield, Torx / From: BA336893	-	6	Enquire
2B511	LR015572	BRACKET	LR015572 BRACKET LH / From: AA000001	-	1	Enquire
2B511	LR015567	BRACKET	LR015567 BRACKET RH / From: AA000001	-	1	Enquire
2C028	LR011715	SHIELD - BRAKE DISC SPLASH	LR011715 SHIELD - BRAKE DISC SPLASH RH, Shield / From: AA000001 / To: AA314627	-	1	Enquire
2C028	LR011714	SHIELD - BRAKE DISC SPLASH	LR011714 SHIELD - BRAKE DISC SPLASH LH, Shield / From: AA000001 / To: AA314627	-	1	Enquire
2C028	LR019452	SHIELD - BRAKE DISC SPLASH	LR019452 SHIELD - BRAKE DISC SPLASH LH, Shield / From: AA314628	-	1	Enquire
2C028	LR019451	SHIELD - BRAKE DISC SPLASH	LR019451 SHIELD - BRAKE DISC SPLASH RH, Shield / From: AA314628	-	1	Enquire
2C500	LR017032	KIT - LOCATING PIN BOLTS	LR017032 KIT - LOCATING PIN BOLTS Caliper Set, Pin And Boot / From: AA000001	-	2	Enquire
2L126	SEE500100	CAP - BLEED SCREW	SEE500100 CAP - BLEED SCREW From: AA000001	-	2	Enquire
14A382	SOE500030	WIRE - BRAKE PAD WEAR WARNING	SOE500030 WIRE - BRAKE PAD WEAR WARNING From: AA000001	-	1	Enquire
1125	LR017804	DISC - BRAKE - VENTED	LR017804 DISC - BRAKE - VENTED From: AA000001	-	2	Enquire
2001	LR015519	BRAKE PADS - WITH SPRINGS	LR015519 BRAKE PADS - WITH SPRINGS Axle Set / From: AA000001	-	1	Enquire
2208	LR015523	SCREW - BLEED	LR015523 SCREW - BLEED From: AA000001	-	2	Enquire
2221	LR015520	KIT - CALIPER SEAL	LR015520 KIT - CALIPER SEAL Caliper Set, To Caliper / From: AA000001	-	2	Enquire
2552	LR015586	CALIPER - BRAKE	LR015586 CALIPER - BRAKE LH / From: AA000001	-	1	Enquire
2552	LR015524	CALIPER - BRAKE	LR015524 CALIPER - BRAKE RH / From: AA000001	-	1	Enquire
9069	LR015525	COVER - DUST	LR015525 COVER - DUST Boot, Caliper Set / From: AA000001	-	2	Enquire
