Name: Front Doors, Hinges & Weatherstrips (With B6 Level Armouring) ((V) FROMAA000001)
Rating: 4.4 (1 reviews)

View All

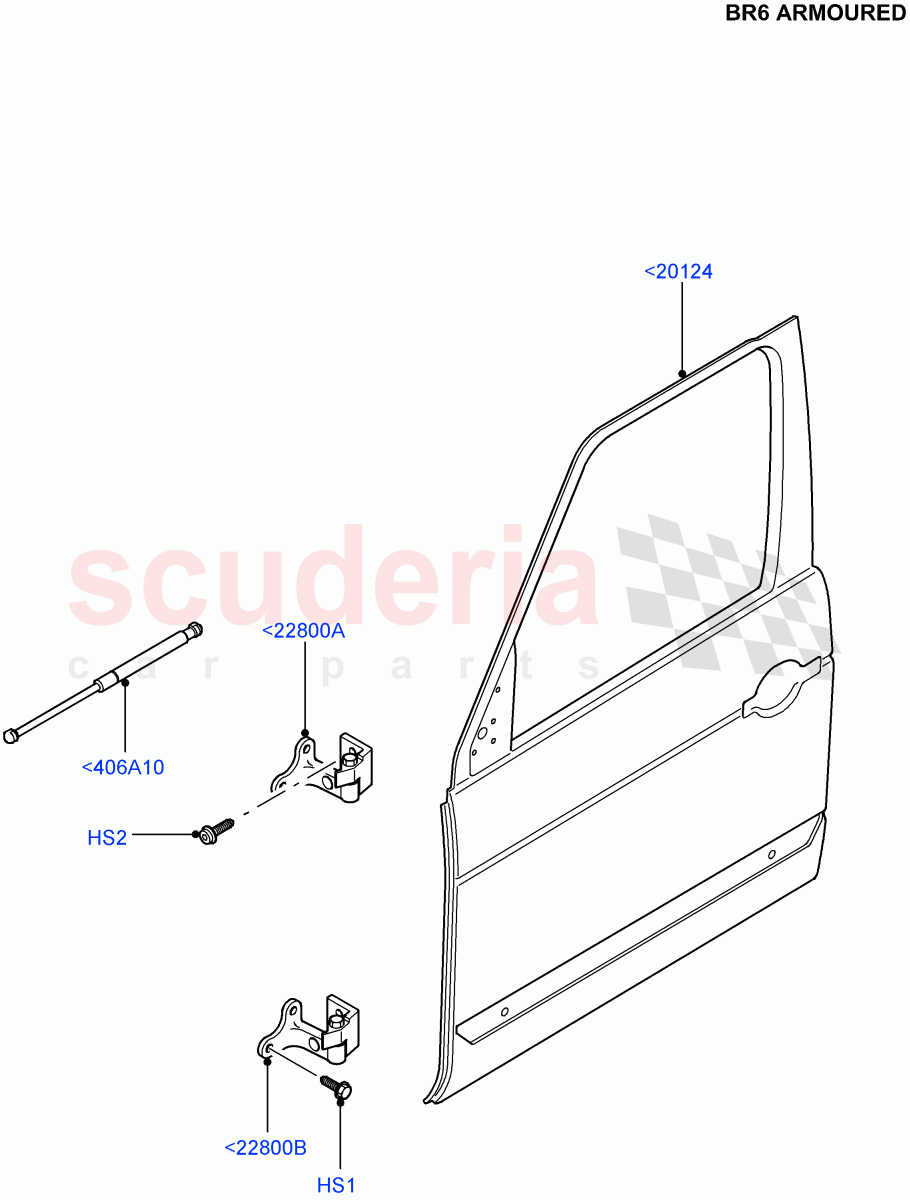

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AYP500160	SCREW	$1.16	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP000130	SCREW - PAN HEAD	$1.09	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<406A10	IPL500010	LIFT - GAS	IPL500010 LIFT - GAS Drivers Door / From: AA000001	$733.44	1
<406A10	IPL500040	LIFT - GAS	IPL500040 LIFT - GAS Passengers Door / From: AA000001	$733.44	1
<20124	BDA760180	DOOR - FRONT	BDA760180 DOOR - FRONT RH, Inner / From: AA000001	$27,691.92	1
<20124	BDA760190	DOOR - FRONT	BDA760190 DOOR - FRONT LH, Inner / From: AA000001	$27,691.92	1
<22800A	BDB760200	HINGE - DOOR	BDB760200 HINGE - DOOR RH, Upper, With Bolts And Washers / From: AA000001	$1,153.85	1
<22800A	BDB760210	HINGE - DOOR	BDB760210 HINGE - DOOR LH, Upper, With Bolts And Washers / From: AA000001	$1,153.85	1
<22800B	BDB760230	HINGE - DOOR	BDB760230 HINGE - DOOR LH, Lower, With Bolts And Washers / From: AA000001	$1,153.85	1
<22800B	BDB760220	HINGE - DOOR	BDB760220 HINGE - DOOR RH, Lower, With Bolts And Washers / From: AA000001	$1,153.85	1
HS1	AYP500160	SCREW	AYP500160 SCREW M10 / From: AA000001	$1.16	8
HS2	BYP000130	SCREW - PAN HEAD	BYP000130 SCREW - PAN HEAD Door Hinge, Pan Head, Upper / From: AA000001	$1.09	8

Front Doors, Hinges & Weatherstrips (With B6 Level Armouring) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol]
