Fuel Tank & Related Parts (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol] - Fuel Tank & Related Parts (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)

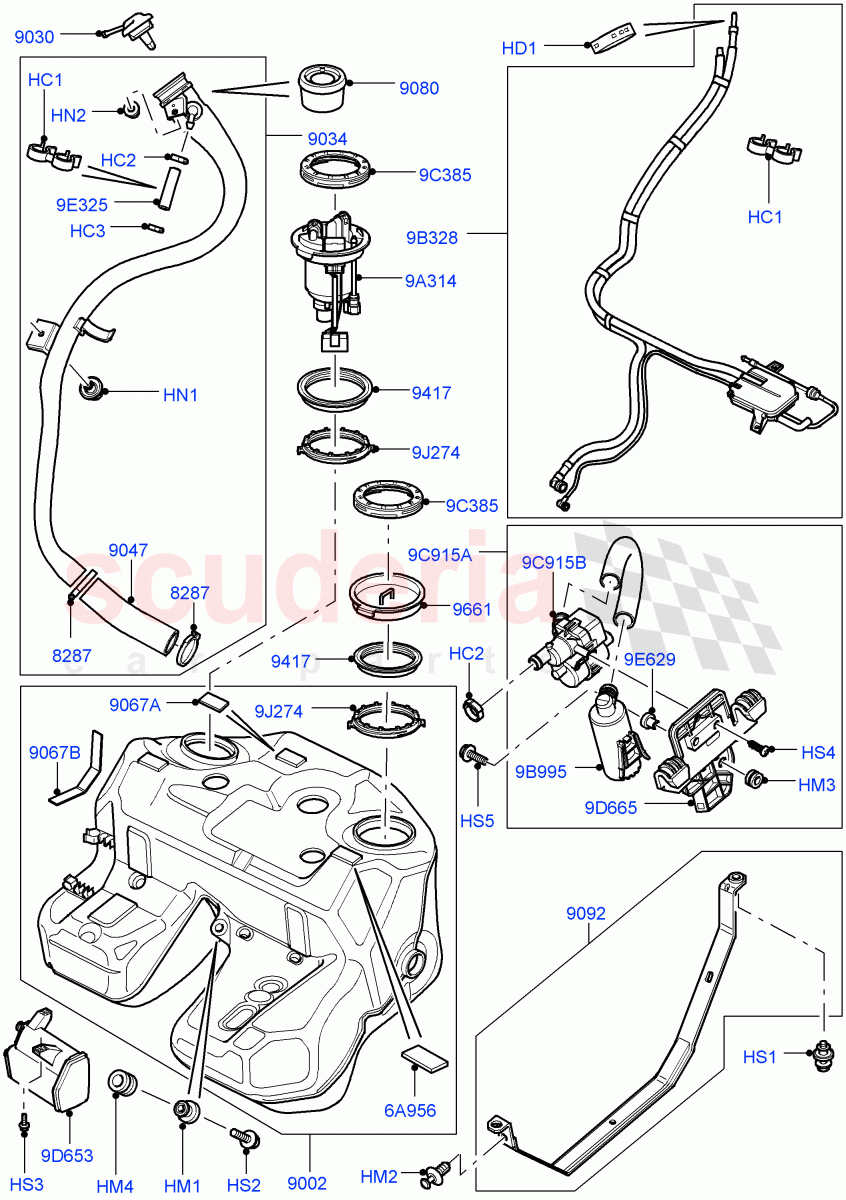

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	WJC000100	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYC000080	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYC000070	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005052	CLAMP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYF000020	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYQ000010	RIVET - PLASTIC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYA000010	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYD000020	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYH000020	NUT - PLASTIC - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500310	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP000330	SCREW	Enquire	To Order
	LR022497	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501170	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYP000090	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYP000060	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP000250	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9952119	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WFE500693	TANK - FUEL	Enquire	To Order
	WFE501350	TANK - FUEL	Enquire	To Order
	LR034153	TANK - FUEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	202123529	CAP - FUEL TANK FILLER	Enquire	To Order
	LR011468	CAP - FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WMJ500210	PIPE - FUEL FILLER	Enquire	To Order
	WMJ500220	PIPE - FUEL FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJH500050	HOSE - FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WMK000010	GROMMET - FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WFS500010	STRAP - FUEL TANK	Enquire	To Order
	WFS500020	STRAP - FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WGQ500020	GASKET - FUEL TANK COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WGC000020	COVER - FUEL SENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FWA500230	PAD	Enquire	To Order
	LR035088	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WFK000010	STRIP - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WFK000020	STRIP - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014995	COVER - FUEL SENDER	Enquire	To Order
	LR043154	COVER - FUEL SENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJL500042	SEPARATOR - FUEL VAPOUR	Enquire	To Order
	WJL500052	SEPARATOR - FUEL VAPOUR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WTE000010	FILTER - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ESR3808	RING - LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WTB500240	RESERVOIR	Enquire	To Order
	WTB500250	RESERVOIR - FUEL VAPOUR SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYH000080	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WLH000020	HOSE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SYF100290L	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ESR3807	ADAPTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WTG500040	PUMP - LEAK DETECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR174757	VALVE - CONTROL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	WJC000100	CLIP - HOSE	WJC000100 CLIP - HOSE (-)"CDN/MEX/USA" / Double / From: AA000001	-	1	Enquire
HC2	WYC000080	CLIP - HOSE	WYC000080 CLIP - HOSE (-)"CDN/MEX/USA" / 27MM / From: AA000001	-	2	Enquire
HC3	WYC000070	CLAMP	WYC000070 CLAMP (+)"CDN/MEX/USA" / CLAMP - HOSE RETAINING / From: AA000001	-	1	Enquire
HD1	LR005052	CLAMP - HOSE	LR005052 CLAMP - HOSE (+)"CDN/MEX/USA" / 20.9-24.1, Clamp / From: AA000001	-	1	Enquire
HM1	WYF000020	SPACER	WYF000020 SPACER Spacer / From: AA000001	-	1	Enquire
HM2	WYQ000010	RIVET - PLASTIC	WYQ000010 RIVET - PLASTIC Fuel Tank Strap, Plastic, Rivet Type / From: AA000001	-	4	Enquire
HM3	WYA000010	GROMMET	WYA000010 GROMMET (+)"CDN/MEX/USA" / Bracket, Filter, Grommet / From: AA000001	-	1	Enquire
HM4	WYD000020	GROMMET	WYD000020 GROMMET Fuel Tank / From: AA000001	-	1	Enquire
HN1	WYH000020	NUT - PLASTIC - SPECIAL	WYH000020 NUT - PLASTIC - SPECIAL Plastic / From: AA000001	-	1	Enquire
HN2	RYH500310	NUT AND WASHER - HEX.	RYH500310 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer / From: AA000001	-	1	Enquire
HS1	RYP000330	SCREW	RYP000330 SCREW M8 X 30MM / From: AA000001 / To: BA765431	-	4	Enquire
HS1	LR022497	SCREW	LR022497 SCREW M8 X 30MM / From: BA765432	-	4	Enquire
HS2	RYG501170	SCREW AND WASHER	RYG501170 SCREW AND WASHER Hexagonal Head, M8 X 30MM / From: AA000001	-	4	Enquire
HS3	WYP000090	SCREW	WYP000090 SCREW M8 / From: AA000001	-	2	Enquire
HS4	WYP000060	SCREW	WYP000060 SCREW (+)"CDN/MEX/USA" / M5 / From: AA000001	-	1	Enquire
HS5	RYP000250	SCREW	RYP000250 SCREW M6 X 25MM / From: AA000001	-	1	Enquire
6A956	FWA500230	PAD	FWA500230 PAD Fuel Tank / From: AA000001 / To: CA361333	-	2	Enquire
6A956	LR035088	FOAM PAD - ENERGY ABSORBING	LR035088 FOAM PAD - ENERGY ABSORBING Fuel Tank / From: CA361334	-	2	Enquire
9A314	LR014995	COVER - FUEL SENDER	LR014995 COVER - FUEL SENDER Includes Fuel Filter / From: AA000001 / To: CA384465	-	1	Enquire
9A314	LR043154	COVER - FUEL SENDER	LR043154 COVER - FUEL SENDER Includes Fuel Filter / From: CA384466	-	1	Enquire
9B328	WJL500042	SEPARATOR - FUEL VAPOUR	WJL500042 SEPARATOR - FUEL VAPOUR (+)"CDN/MEX/USA" / From: AA000001	-	1	Enquire
9B328	WJL500052	SEPARATOR - FUEL VAPOUR	WJL500052 SEPARATOR - FUEL VAPOUR (-)"CDN/MEX/USA" / From: AA000001	-	1	Enquire
9B995	WTE000010	FILTER - FUEL	WTE000010 FILTER - FUEL (+)"CDN/MEX/USA" / From: AA000001	-	1	Enquire
9C385	ESR3808	RING - LOCK	ESR3808 RING - LOCK Fuel Tank Sender / From: AA000001	-	2	Enquire
9C915A	WTG500040	PUMP - LEAK DETECTION	WTG500040 PUMP - LEAK DETECTION (+)"CDN/MEX/USA" / Vapor Valve / From: AA000001	-	1	Enquire
9C915B	LR174757	VALVE - CONTROL	LR174757 VALVE - CONTROL (+)"CDN/MEX/USA" / Pump - Diagnostic Monitoring Tank Leakage / From: AA000001	-	1	Enquire
9D653	WTB500240	RESERVOIR	WTB500240 RESERVOIR (+)"CDN/MEX/USA" / Carbon / From: AA000001	-	1	Enquire
9D653	WTB500250	RESERVOIR - FUEL VAPOUR SYSTEM	WTB500250 RESERVOIR - FUEL VAPOUR SYSTEM (-)"CDN/MEX/USA" / Carbon, Fuel Vapour System / From: AA000001	-	1	Enquire
9D665	WYH000080	BRACKET	WYH000080 BRACKET (+)"CDN/MEX/USA" / Filter / From: AA000001	-	1	Enquire
9E325	WLH000020	HOSE - FUEL	WLH000020 HOSE - FUEL (-)"CDN/MEX/USA" / From: AA000001	-	1	Enquire
9E629	SYF100290L	SLEEVE	SYF100290L SLEEVE (+)"CDN/MEX/USA" / Breather / From: AA000001	-	1	Enquire
9J274	ESR3807	ADAPTOR	ESR3807 ADAPTOR Retaining Ring / From: AA000001	-	2	Enquire
8287	9952119	CLAMP	9952119 CLAMP FILLER, For Fuel Tube / From: AA000001	-	2	Enquire
9002	WFE500693	TANK - FUEL	WFE500693 TANK - FUEL (-)"CDN/MEX/USA" / From: AA000001 / To: CA361289	-	1	Enquire
9002	WFE501350	TANK - FUEL	WFE501350 TANK - FUEL (+)"CDN/MEX/USA" / From: AA000001 / To: CA361289	-	1	Enquire
9002	LR034153	TANK - FUEL	LR034153 TANK - FUEL (+)"CDN/MEX/USA" / From: CA361290	-	1	Enquire
9002	LR034154	TANK - FUEL	LR034154 TANK - FUEL (-)"CDN/MEX/USA" / From: CA361290	-	1	Enquire
9030	202123529	CAP - FUEL TANK FILLER	202123529 CAP - FUEL TANK FILLER (-)"CDN/MEX/USA" / From: AA000001	-	1	Enquire
9030	LR011468	CAP - FILLER	LR011468 CAP - FILLER (+)"CDN/MEX/USA" / From: AA000001	-	1	Enquire
9034	WMJ500210	PIPE - FUEL FILLER	WMJ500210 PIPE - FUEL FILLER (+)"CDN/MEX/USA" / From: AA000001	-	1	Enquire
9034	WMJ500220	PIPE - FUEL FILLER	WMJ500220 PIPE - FUEL FILLER (-)"CDN/MEX/USA" / From: AA000001	-	1	Enquire
9047	WJH500050	HOSE - FILLER PIPE	WJH500050 HOSE - FILLER PIPE From: AA000001	-	1	Enquire
9067A	WFK000010	STRIP - RUBBER	WFK000010 STRIP - RUBBER Small / From: AA000001	-	4	Enquire
9067B	WFK000020	STRIP - RUBBER	WFK000020 STRIP - RUBBER Large / From: AA000001	-	2	Enquire
9080	WMK000010	GROMMET - FILLER PIPE	WMK000010 GROMMET - FILLER PIPE From: AA000001	-	1	Enquire
9092	WFS500010	STRAP - FUEL TANK	WFS500010 STRAP - FUEL TANK RH / From: AA000001	-	1	Enquire
9092	WFS500020	STRAP - FUEL TANK	WFS500020 STRAP - FUEL TANK LH / From: AA000001	-	1	Enquire
9417	WGQ500020	GASKET - FUEL TANK COVER	WGQ500020 GASKET - FUEL TANK COVER Fuel Tank Sender / From: AA000001	-	2	Enquire
9661	WGC000020	COVER - FUEL SENDER	WGC000020 COVER - FUEL SENDER Fuel Tank / From: AA000001	-	1	Enquire
