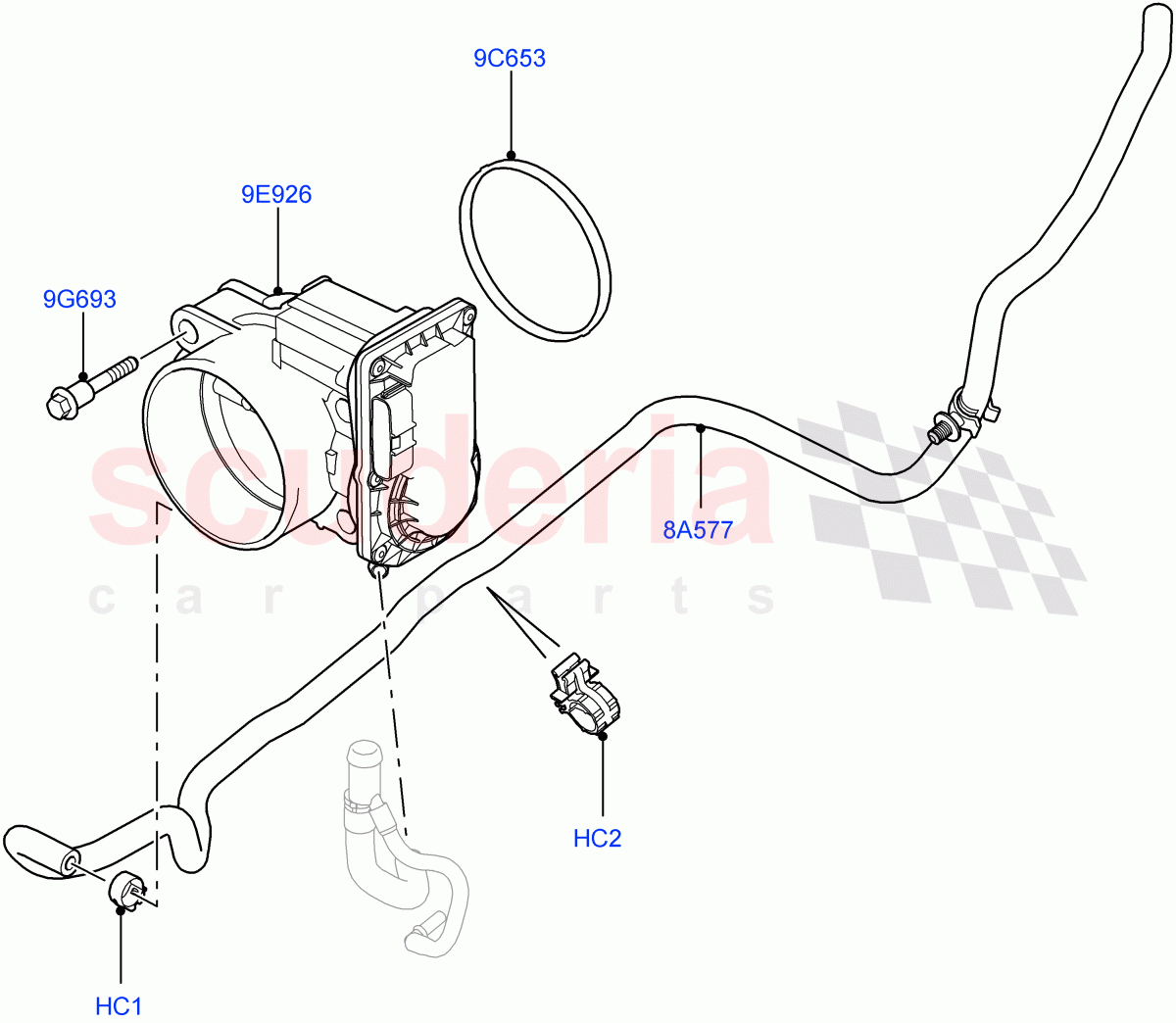

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011158	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011221	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011965	HOSE - THROTTLE BODY HEATER INLET	Enquire	To Order
	LR021952	HOSE - THROTTLE BODY HEATER INLET	Enquire	To Order
	LR051511	HOSE - THROTTLE BODY HEATER INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011999	SEAL - THROTTLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010814	THROTTLE BODY AND MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011222	BOLT	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR011158	CLIP - HOSE	LR011158 CLIP - HOSE 13-14 X 8, Hose - Throttle Body Heater / From: AA000001	-	1	Enquire
HC2	LR011221	CLIP	LR011221 CLIP Retainer / From: AA000001	-	2	Enquire
8A577	LR011965	HOSE - THROTTLE BODY HEATER INLET	LR011965 HOSE - THROTTLE BODY HEATER INLET Hose - Throttle Body Heater, Inlet / From: AA000001 / To: AA320498	-	1	Enquire
8A577	LR021952	HOSE - THROTTLE BODY HEATER INLET	LR021952 HOSE - THROTTLE BODY HEATER INLET Hose - Throttle Body Heater, Inlet / From: AA320499 / To: CA374367	-	1	Enquire
8A577	LR051511	HOSE - THROTTLE BODY HEATER INLET	LR051511 HOSE - THROTTLE BODY HEATER INLET Hose - Throttle Body Heater, Inlet / From: CA374368	-	1	Enquire
9C653	LR011999	SEAL - THROTTLE	LR011999 SEAL - THROTTLE Attaches to intake manifold, Throttle Body To Intake / From: AA000001	-	1	Enquire
9E926	LR010814	THROTTLE BODY AND MOTOR	LR010814 THROTTLE BODY AND MOTOR From: AA000001	-	1	Enquire
9G693	LR011222	BOLT	LR011222 BOLT M7 x 55MM, Throttle Body To Intake / From: AA000001	-	4	Enquire

Haven't found what you're looking for?

View Cart / Checkout

Throttle Housing (5.0L Ohc Sgdi Na V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol]
