Vacuum Control And Air Injection (5.0L Ohc Sgdi Na V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol] - Vacuum Control And Air Injection (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR009660 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR011842 CLIP - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR011273 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR010690 PUMP - VACUUM Enquire To Order
LR048796 PUMP - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR012685 SEAL - VACUUM PUMP Enquire To Order
Photo Part No Description Price (each) Stock
LR012825 GROMMET Enquire To Order
LR012826 GROMMET Enquire To Order
Photo Part No Description Price (each) Stock
LR046913 HOSE - VACUUM Enquire To Order
LR011526 MANIFOLD - VACUUM SUPPLY Enquire To Order
LR023074 MANIFOLD - VACUUM SUPPLY Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR011527 MANIFOLD - VACUUM SUPPLY Enquire To Order
LR023075 MANIFOLD - VACUUM SUPPLY Enquire To Order
LR046914 HOSE - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR010811 HOSE - VACUUM Enquire To Order
LR025086 HOSE - VACUUM Enquire To Order
LR105295 HOSE - VACUUM Enquire To Order
View All

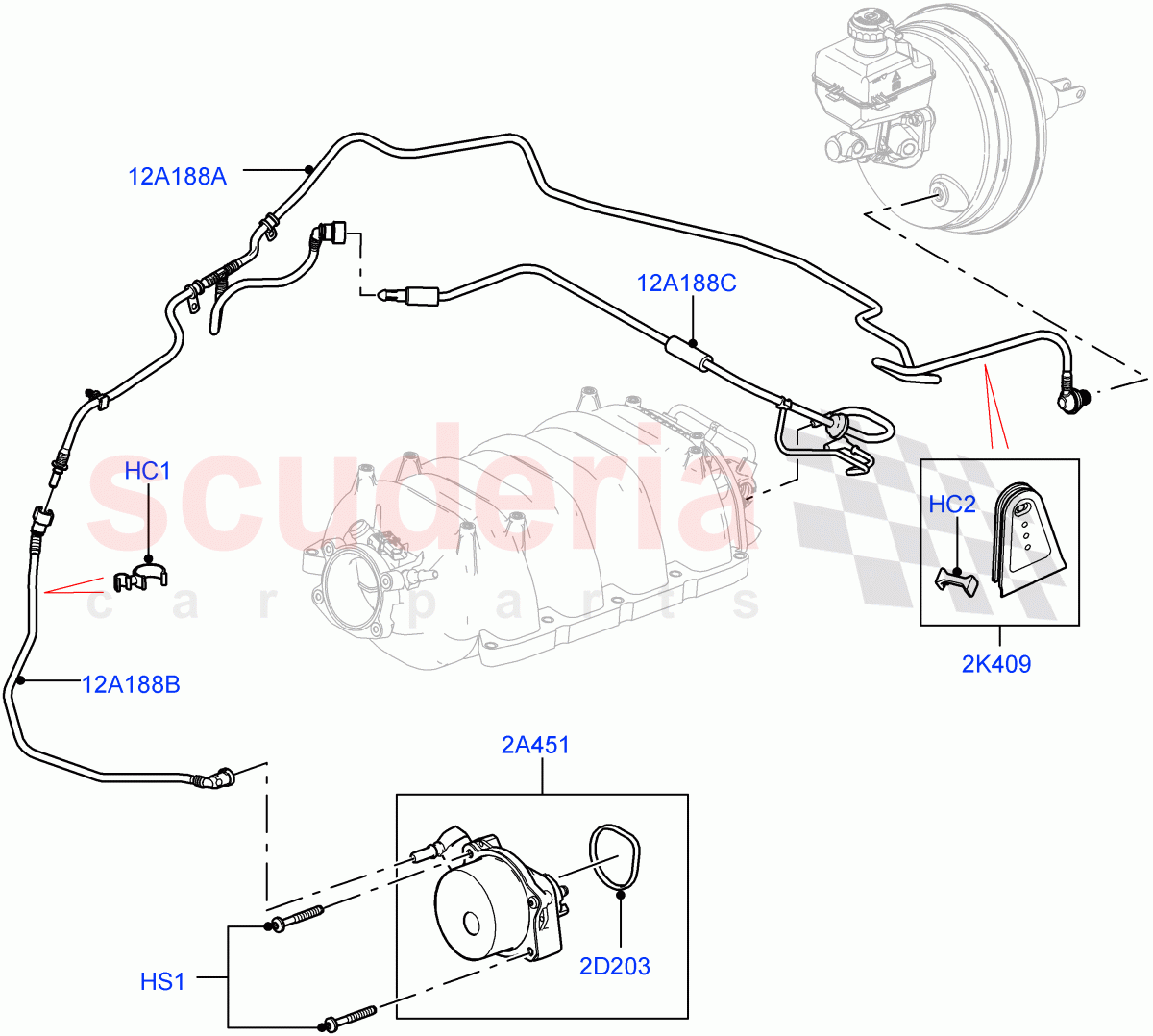

Vacuum Control And Air Injection (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR009660
CLIP
Double, Vacuum Pump Hose / From: AA000001 		- 2 Enquire
HC2 LR011842
CLIP - SPECIAL
Locking / From: AA000001 		- 1 Enquire
HS1 LR011273
SCREW
M6 X 45MM, Pump - Vacuum / From: AA000001 		- 2 Enquire
2A451 LR010690
PUMP - VACUUM
From: AA000001 / To: CA393564 		- 1 Enquire
2A451 LR048796
PUMP - VACUUM
From: CA393565 		- 1 Enquire
2D203 LR012685
SEAL - VACUUM PUMP
From: AA000001 		- 1 Enquire
2K409 LR012825
GROMMET
LHD / From: AA000001 		- 1 Enquire
2K409 LR012826
GROMMET
RHD / From: AA000001 		- 1 Enquire
12A188A LR046913
HOSE - VACUUM
LHD / Brake Vacuum Booster / From: AA000001 / To: AA321548 		- 1 Enquire
12A188A LR011526
MANIFOLD - VACUUM SUPPLY
RHD / Brake Vacuum Booster / From: AA000001 		- 1 Enquire
12A188A LR023074
MANIFOLD - VACUUM SUPPLY
LHD / Brake Vacuum Booster / From: AA321549 / To: CA381303 		- 1 Enquire
12A188A LR046913
HOSE - VACUUM
LHD / Brake Vacuum Booster / From: CA381304 		- 1 Enquire
12A188B LR011527
MANIFOLD - VACUUM SUPPLY
Pump - Vacuum / From: AA000001 / To: AA324552 		- 1 Enquire
12A188B LR023075
MANIFOLD - VACUUM SUPPLY
Pump - Vacuum / From: AA324553 / To: CA381303 		- 1 Enquire
12A188B LR046914
HOSE - VACUUM
Pump - Vacuum / From: CA381304 		- 1 Enquire
12A188C LR010811
HOSE - VACUUM
From: AA000001 / To: AA999999 		- 1 Enquire
12A188C LR025086
HOSE - VACUUM
From: BA000001 / To: CA600354 		- 1 Enquire
12A188C LR105295
HOSE - VACUUM
From: CA600355 		- 1 Enquire
