Name: Pulleys And Drive Belts (Secondary Drive) (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)
Rating: 5.0 (1 reviews)

View All

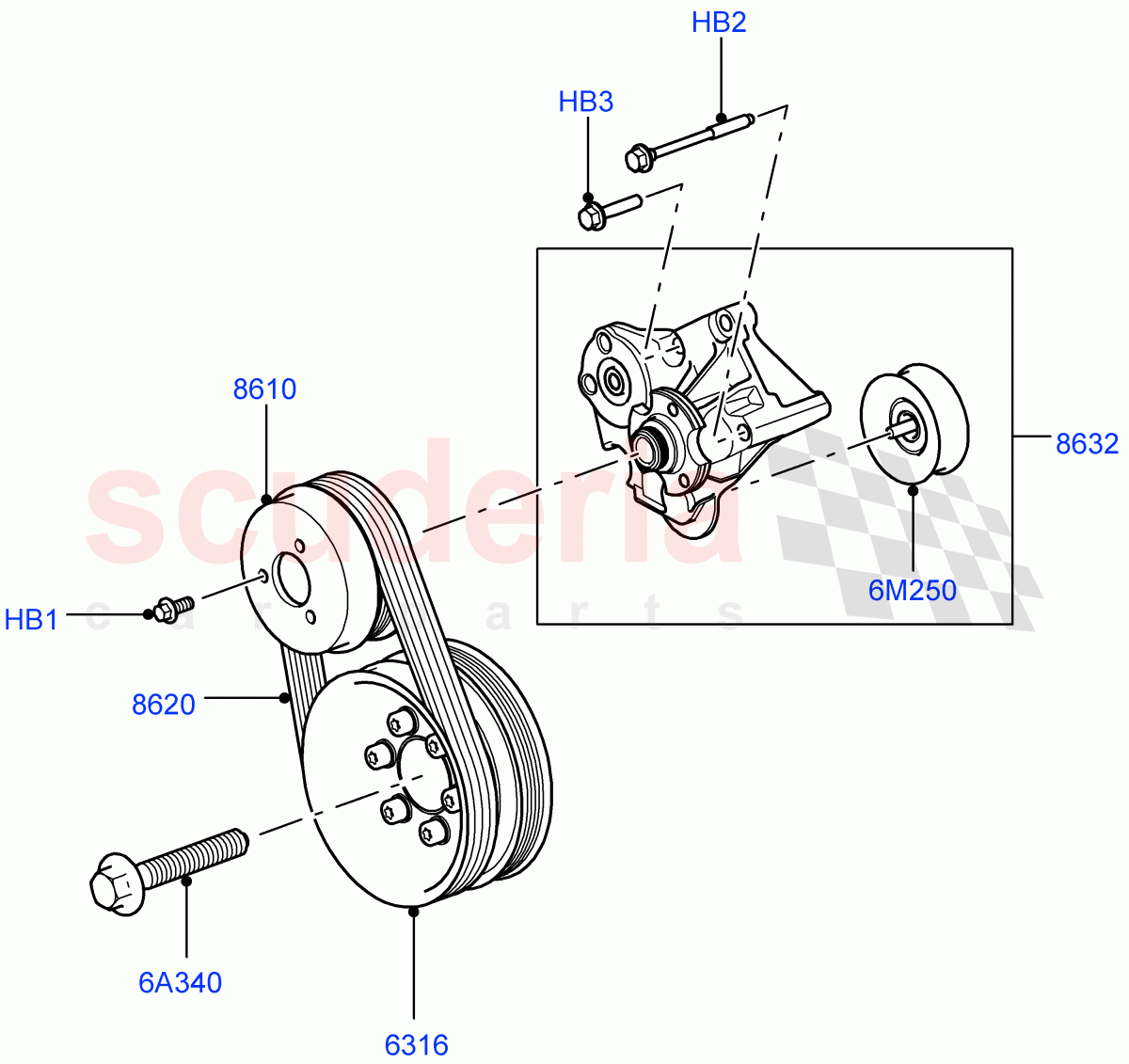

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR005074	BOLT	$1.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016837	BOLT	$1.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR012000	PULLEY - CRANKSHAFT	$354.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012624	PULLEY - FAN	$112.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012663	BELT - ACCESSORY DRIVE	$62.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012623	BRACKET - COUPLING SHAFT BEARING	$290.03	To Order
	LR025978	BRACKET - COUPLING SHAFT BEARING	$237.39	To Order
	LR035555	BRACKET WITH IDLER AND BEARING FAN	$237.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011952	BOLT M18 X110	$22.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR010725	PULLEY - IDLER	$56.23	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM, Pulley / From: AA000001 IN STOCK	$2.23	3
HB2	LR005074	BOLT	LR005074 BOLT Bracket, Hexagonal Head, M8 X 96.5 / From: AA000001	$1.11	1
HB3	LR016837	BOLT IN STOCK	LR016837 BOLT Bracket, M8 x 40MM / From: AA000001 IN STOCK	$1.00	3
6A340	LR011952	BOLT M18 X110 IN STOCK	LR011952 BOLT M18 X110 M16 X 118MM, Pulley - Crankshaft / From: AA000001 IN STOCK	$22.60	1
6M250	LR010725	PULLEY - IDLER	LR010725 PULLEY - IDLER Primary Drive / From: AA000001	$56.23	1
6316	LR012000	PULLEY - CRANKSHAFT	LR012000 PULLEY - CRANKSHAFT From: AA000001	$354.28	1
8610	LR012624	PULLEY - FAN	LR012624 PULLEY - FAN Fan / From: AA000001	$112.85	1
8620	LR012663	BELT - ACCESSORY DRIVE	LR012663 BELT - ACCESSORY DRIVE Secondary Drive / From: AA000001	$62.94	1
8632	LR012623	BRACKET - COUPLING SHAFT BEARING	LR012623 BRACKET - COUPLING SHAFT BEARING With Idler / From: AA000001 / To: BA337829	$290.03	1
8632	LR025978	BRACKET - COUPLING SHAFT BEARING	LR025978 BRACKET - COUPLING SHAFT BEARING With Idler / From: BA337830 / To: CA393569	$237.39	1
8632	LR035555	BRACKET WITH IDLER AND BEARING FAN	LR035555 BRACKET WITH IDLER AND BEARING FAN With Idler / From: CA393570	$237.39	1

Pulleys And Drive Belts (Secondary Drive) (5.0L Ohc Sgdi Na V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol]
