Rear Seat Back (Frame Assy, Backboard-Rear Seat) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Rear Seat Back (Frame Assy, Backboard-Rear Seat) ((V) FROMAA000001)

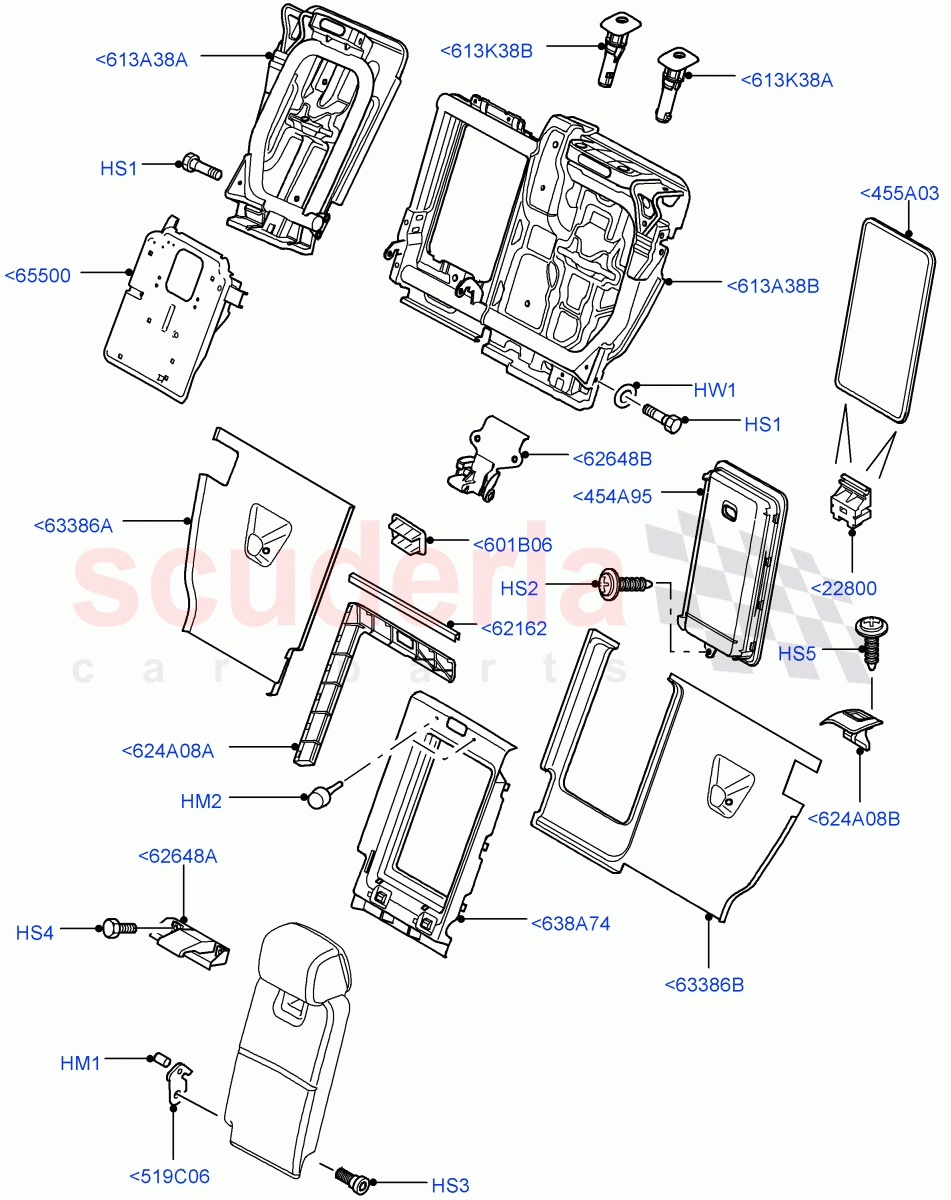

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
HAN500230 BOLT $6.81 To Order
Photo Part No Description Price (each) Stock
HZU500040 BUMP STOP $12.12 To Order
Photo Part No Description Price (each) Stock
HYP500210 SCREW $1.16 To Order
Photo Part No Description Price (each) Stock
HYP000290 SCREW $1.16 To Order
Photo Part No Description Price (each) Stock
HAN500240 BOLT $16.15 To Order
Photo Part No Description Price (each) Stock
HYP000300 SCREW $3.78 To Order
Photo Part No Description Price (each) Stock
HYP000230 SCREW - SELF-TAPPING $1.09 To Order
Photo Part No Description Price (each) Stock
LR023211 WASHER - WAVE $12.72 To Order
Photo Part No Description Price (each) Stock
HTL500010 HINGE $11.08 To Order
Photo Part No Description Price (each) Stock
HZE500040 SHIELD - REAR $8.05 To Order
Photo Part No Description Price (each) Stock
LR017779 SUPPORT - SEAT BACK - LUMBAR $364.99 To Order
LR017780 SUPPORT - SEAT BACK - LUMBAR $406.66 To Order
Photo Part No Description Price (each) Stock
HLO500030PUY BAG - CURTAIN STORAGE $351.09 To Order
Photo Part No Description Price (each) Stock
HIB000010JMN PANEL $85.88 To Order
HIB000010PVA PANEL $40.76 To Order
HIB000010SUN PANEL $85.88 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
HLM500160 COVER - ARMREST $7.81 To Order
HLM500170 COVER - ARMREST $7.81 To Order
Photo Part No Description Price (each) Stock
HXV000020JMN LATCH - REAR SEAT BACK $65.32 To Order
HXV000020PVA LATCH - REAR SEAT BACK $65.32 To Order
HXV000020SUN LATCH - REAR SEAT BACK $65.32 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
HWE000051PUY LATCH $60.71 To Order
Photo Part No Description Price (each) Stock
HTL000060 LATCH - REAR SEAT CUSHION $30.24 To Order
Photo Part No Description Price (each) Stock
HMS000010JMN COVER $40.39 To Order
HMS000010PVA COVER $46.67 To Order
HMS000010SUN COVER $46.67 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
HMS000031JMN COVER $114.19 To Order
HMS000031PVA COVER $283.82 To Order
HMS000031SUN COVER $283.82 To Order
...and 13 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
HXP000080JMN COVER - SEAT BACK LATCH $178.83 To Order
HXP000080PVA COVER - SEAT BACK LATCH $178.83 To Order
HXP000080SUN COVER - SEAT BACK LATCH $178.83 To Order
...and 13 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
HTF000050 FRAME - REAR SEAT BACK RETAINING $1,027.01 To Order
LR018186 FRAME - REAR SEAT BACK RETAINING $254.78 To Order
Photo Part No Description Price (each) Stock
HTF000030 FRAME - REAR SEAT BACK RETAINING $1,027.01 To Order
LR018187 FRAME - REAR SEAT BACK RETAINING $1,377.60 To Order
Photo Part No Description Price (each) Stock
HJQ000050PUY ESCUTCHEON $12.13 To Order
LR019976 SLEEVE - GUIDE $12.51 To Order
Photo Part No Description Price (each) Stock
HJQ000060PUY SLEEVE - GUIDE $12.43 To Order
LR019968 SLEEVE - GUIDE $12.51 To Order
Photo Part No Description Price (each) Stock
HXP000030JMN BEZEL $102.73 To Order
HXP000030PVA BEZEL $106.30 To Order
HXP000030SUN BEZEL $50.46 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
HXM500240JMN BEZEL - SEAT BELT GUIDE BRACKET $55.90 To Order
HXM500240LER BEZEL - SEAT BELT GUIDE BRACKET $53.70 To Order
HXM500240PVA BEZEL - SEAT BELT GUIDE BRACKET $52.28 To Order
...and 4 more part variants. See table on right for more details.
View All
Rear Seat Back (Frame Assy, Backboard-Rear Seat) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<454A95 HLO500030PUY
BAG - CURTAIN STORAGE
With Ski Bag Provision / From: AA000001 		$351.09 1
<455A03 HIB000010JMN
PANEL
Int Navy Carpet - LR, With Ski Bag Provision / Navy / From: AA000001 		$85.88 1
<455A03 HIB000010PVA
PANEL
Int Jet Carpet - LR, With Ski Bag Provision / Jet / From: AA000001 		$40.76 1
<455A03 HIB000010SUN
PANEL
Int Sand Carpet - LR, With Ski Bag Provision / Sand / From: AA000001 		$85.88 1
<455A03 LR016341
PANEL - REAR SEAT ARMREST
Interior Arabica Carpet, With Ski Bag Provision / Arabica / From: AA000001 		$71.95 1
<519C06 HLM500160
COVER - ARMREST
RH, Armrest / From: AA000001 		$7.81 1
<519C06 HLM500170
COVER - ARMREST
LH, Armrest / From: AA000001 		$7.81 1
<601B06 HXV000020JMN
LATCH - REAR SEAT BACK
Int Navy Carpet - LR / Door Release Control, Navy / From: AA000001 		$65.32 1
<601B06 HXV000020PVA
LATCH - REAR SEAT BACK
Int Jet Carpet - LR / Door Release Control, Jet / From: AA000001 		$65.32 1
<601B06 HXV000020SUN
LATCH - REAR SEAT BACK
Int Sand Carpet - LR / Door Release Control, Sand / From: AA000001 		$65.32 1
<601B06 LR016340
LATCH - REAR SEAT BACK
Interior Arabica Carpet / Arabica, Door Release Control / From: AA000001 		$48.68 1
<613A38A HTF000050
FRAME - REAR SEAT BACK RETAINING
40% Seat / From: AA000001 / To: AA313068 		$1,027.01 1
<613A38A LR018186
FRAME - REAR SEAT BACK RETAINING
40% Seat / From: AA313069 		$254.78 1
<613A38B HTF000030
FRAME - REAR SEAT BACK RETAINING
60% Seat / From: AA000001 / To: AA313068 		$1,027.01 1
<613A38B LR018187
FRAME - REAR SEAT BACK RETAINING
60% Seat / From: AA313069 		$1,377.60 1
<613K38A HJQ000050PUY
ESCUTCHEON
LH, Black, Locking / From: AA000001 / To: AA313068 		$12.13 2
<613K38A LR019976
SLEEVE - GUIDE
LH, Black, Locking / From: AA313069 		$12.51 2
<613K38B HJQ000060PUY
SLEEVE - GUIDE
RH, Black, Non Locking / From: AA000001 / To: AA313068 		$12.43 2
<613K38B LR019968
SLEEVE - GUIDE
RH, Black, Non Locking / From: AA313069 		$12.51 2
<624A08A HXP000030JMN
BEZEL
Int Navy Carpet - LR, With Ski Bag Provision / From: AA000001 		$102.73 1
<624A08A HXP000030PVA
BEZEL
Int Jet Carpet - LR, With Ski Bag Provision / From: AA000001 		$106.30 1
<624A08A HXP000030SUN
BEZEL
Int Sand Carpet - LR, With Ski Bag Provision / From: AA000001 		$50.46 1
<624A08A HXP000090JMN
BEZEL
Int Navy Carpet - LR, Less Ski Bag Provision / From: AA000001 		$104.49 1
<624A08A HXP000090PVA
BEZEL
Int Jet Carpet - LR, Less Ski Bag Provision / From: AA000001 		$104.49 1
<624A08A HXP000090SUN
BEZEL
Int Sand Carpet - LR, Less Ski Bag Provision / From: AA000001 		$104.49 1
<624A08A LR016331
BEZEL - ARMREST
Interior Arabica Carpet, With Ski Bag Provision / From: AA000001 		$114.65 1
<624A08A LR016333
BEZEL - ARMREST
Interior Arabica Carpet, Less Ski Bag Provision / From: AA000001 		$104.49 1
<624A08B HXM500240JMN
BEZEL - SEAT BELT GUIDE BRACKET
For Centre Seatbelt, Navy / From: AA000001 		$55.90 1
<624A08B HXM500240LER
BEZEL - SEAT BELT GUIDE BRACKET
For Centre Seatbelt, Storm / From: AA000001 		$53.70 1
<624A08B HXM500240PVA
BEZEL - SEAT BELT GUIDE BRACKET
For Centre Seatbelt, Jet / From: AA000001 		$52.28 1
<624A08B HXM500240SUN
BEZEL - SEAT BELT GUIDE BRACKET
For Centre Seatbelt, Sand / From: AA000001 		$54.26 1
<624A08B HXM500240VAE
BEZEL - SEAT BELT GUIDE BRACKET
For Centre Seatbelt, Parchment / From: AA000001 		$28.03 1
<624A08B LR011135
BEZEL - SEAT BELT GUIDE BRACKET
Arabica, For Centre Seatbelt / From: AA000001 		$64.39 1
<624A08B HXM500240NUG
BEZEL - SEAT BELT GUIDE BRACKET
For Centre Seatbelt, Ivory / From: AA000001 		$51.30 1
<638A74 HXP000080JMN
COVER - SEAT BACK LATCH
Int Navy Carpet - LR, With Ski Bag Provision / Front / From: AA000001 / To: AA313068 		$178.83 1
<638A74 HXP000080PVA
COVER - SEAT BACK LATCH
Int Jet Carpet - LR, With Ski Bag Provision / Front / From: AA000001 / To: AA313068 		$178.83 1
<638A74 HXP000080SUN
COVER - SEAT BACK LATCH
Int Sand Carpet - LR, With Ski Bag Provision / Front / From: AA000001 / To: AA313068 		$178.83 1
<638A74 LR016332
Cover
Interior Arabica Carpet, With Ski Bag Provision / Front / From: AA000001 / To: AA313068 		- 1 Enquire
<638A74 HXP000100JMN
COVER - SEAT BACK LATCH
Int Navy Carpet - LR, Less Ski Bag Provision / Front / From: AA000001 / To: AA313068 		$86.56 1
<638A74 HXP000100PVA
COVER - SEAT BACK LATCH
Int Jet Carpet - LR, Less Ski Bag Provision / Front / From: AA000001 / To: AA313068 		$178.83 1
<638A74 HXP000100SUN
COVER - SEAT BACK LATCH
Int Sand Carpet - LR, Less Ski Bag Provision / Front / From: AA000001 / To: AA313068 		$178.83 1
<638A74 LR016334
Cover
Interior Arabica Carpet, Less Ski Bag Provision / Front / From: AA000001 / To: AA313068 		- 1 Enquire
<638A74 LR017676
COVER - ARMREST
Interior Arabica Carpet, With Ski Bag Provision / Front / From: AA313069 		$167.38 1
<638A74 LR017677
COVER - ARMREST
Int Navy Carpet - LR, With Ski Bag Provision / Front / From: AA313069 		$167.38 1
<638A74 LR017678
COVER - ARMREST
Int Jet Carpet - LR, With Ski Bag Provision / Front / From: AA313069 		$167.38 1
<638A74 LR017679
COVER - ARMREST
Int Sand Carpet - LR, With Ski Bag Provision / Front / From: AA313069 		$79.45 1
<638A74 LR017680
COVER - ARMREST
Interior Arabica Carpet, Less Ski Bag Provision / Front / From: AA313069 		$167.38 1
<638A74 LR017681
COVER - ARMREST
Int Navy Carpet - LR, Less Ski Bag Provision / Front / From: AA313069 		$177.49 1
<638A74 LR017682
COVER - ARMREST
Int Jet Carpet - LR, Less Ski Bag Provision / Front / From: AA313069 		$167.38 1
<638A74 LR017683
COVER - ARMREST
Int Sand Carpet - LR, Less Ski Bag Provision / Front / From: AA313069 		$162.51 1
<22800 HTL500010
HINGE
With Ski Bag Provision / From: AA000001 		$11.08 2
<62162 HZE500040
SHIELD - REAR
From: AA000001 		$8.05 1
<62648A HWE000051PUY
LATCH
Rear Seat Armrest / From: AA000001 		$60.71 1
<62648B HTL000060
LATCH - REAR SEAT CUSHION
Ski Bag / From: AA000001 		$30.24 1
<63386A HMS000010JMN
COVER
Int Navy Carpet - LR, Less Heated & Cooled Fr & Rr Seats / 40% Seat, Navy / From: AA000001 		$40.39 1
<63386A HMS000010PVA
COVER
Int Jet Carpet - LR, Less Heated & Cooled Fr & Rr Seats / 40% Seat, Jet / From: AA000001 		$46.67 1
<63386A HMS000010SUN
COVER
Int Sand Carpet - LR, Less Heated & Cooled Fr & Rr Seats / 40% Seat, Sand / From: AA000001 		$46.67 1
<63386A LR011169
CARPET - REAR SEAT BACK
Interior Arabica Carpet, Less Heated & Cooled Fr & Rr Seats / 40% Seat, Arabica / From: AA000001 		$98.76 1
<63386A LR019186
COVER - REAR SEAT BRACKET
Heated/Cooled Front/Rear Seat, Interior Arabica Carpet / 40% Seat / From: AA000001 		$202.75 1
<63386A LR019187
COVER - REAR SEAT BRACKET
Heated/Cooled Front/Rear Seat, Int Navy Carpet - LR / 40% Seat / From: AA000001 		$202.75 1
<63386A LR019188
COVER - REAR SEAT BRACKET
Heated/Cooled Front/Rear Seat, Int Jet Carpet - LR / 40% Seat / From: AA000001 		$202.75 1
<63386A LR019189
COVER - REAR SEAT BRACKET
Heated/Cooled Front/Rear Seat, Int Sand Carpet - LR / 40% Seat / From: AA000001 		$202.75 1
<63386B HMS000031JMN
COVER
Int Navy Carpet - LR, Less Heated & Cooled Fr & Rr Seats, Less Ski Bag Provision / 60% Seat / From: AA000001 		$114.19 1
<63386B HMS000031PVA
COVER
Int Jet Carpet - LR, Less Heated & Cooled Fr & Rr Seats, Less Ski Bag Provision / 60% Seat / From: AA000001 		$283.82 1
<63386B HMS000031SUN
COVER
Int Sand Carpet - LR, Less Heated & Cooled Fr & Rr Seats, Less Ski Bag Provision / 60% Seat / From: AA000001 		$283.82 1
<63386B HMS000020JMN
COVER
Int Navy Carpet - LR, Less Heated & Cooled Fr & Rr Seats, With Ski Bag Provision / 60% Seat / From: AA000001 		$168.08 1
<63386B HMS000020PVA
COVER
Int Jet Carpet - LR, Less Heated & Cooled Fr & Rr Seats, With Ski Bag Provision / 60% Seat / From: AA000001 		$168.08 1
<63386B HMS000020SUN
COVER
Int Sand Carpet - LR, Less Heated & Cooled Fr & Rr Seats, With Ski Bag Provision / 60% Seat / From: AA000001 		$168.08 1
<63386B LR016335
COVER - REAR SEAT BRACKET
Interior Arabica Carpet, Less Heated & Cooled Fr & Rr Seats, Less Ski Bag Provision / 60% Seat / From: AA000001 		$990.99 1
<63386B LR016326
CARPET - REAR SEAT BACK
Interior Arabica Carpet, Less Heated & Cooled Fr & Rr Seats, With Ski Bag Provision / 60% Seat / From: AA000001 		$470.36 1
<63386B LR019178
COVER - REAR SEAT BRACKET
Heated/Cooled Front/Rear Seat, Interior Arabica Carpet, Less Ski Bag Provision / 60% Seat / From: AA000001 		$233.90 1
<63386B LR019179
COVER - REAR SEAT BRACKET
Heated/Cooled Front/Rear Seat, Int Navy Carpet - LR, Less Ski Bag Provision / 60% Seat / From: AA000001 		$233.90 1
<63386B LR019180
COVER - REAR SEAT BRACKET
Heated/Cooled Front/Rear Seat, Int Jet Carpet - LR, Less Ski Bag Provision / 60% Seat / From: AA000001 		$233.90 1
<63386B LR019181
COVER - REAR SEAT BRACKET
Heated/Cooled Front/Rear Seat, Int Sand Carpet - LR, Less Ski Bag Provision / 60% Seat / From: AA000001 		$233.90 1
<63386B LR019182
COVER - REAR SEAT BRACKET
Heated/Cooled Front/Rear Seat, Interior Arabica Carpet, With Ski Bag Provision / 60% Seat / From: AA000001 		$233.90 1
<63386B LR019183
COVER - REAR SEAT BRACKET
Heated/Cooled Front/Rear Seat, Int Navy Carpet - LR, With Ski Bag Provision / 60% Seat / From: AA000001 		$233.90 1
<63386B LR019184
COVER - REAR SEAT BRACKET
Heated/Cooled Front/Rear Seat, Int Jet Carpet - LR, With Ski Bag Provision / 60% Seat / From: AA000001 		$233.90 1
<63386B LR019185
COVER - REAR SEAT BRACKET
Heated/Cooled Front/Rear Seat, Int Sand Carpet - LR, With Ski Bag Provision / 60% Seat / From: AA000001 		$233.90 1
<65500 LR017779
SUPPORT - SEAT BACK - LUMBAR
Rear Seat - Power 4-Way Lumbar / 40% Seat / From: AA000001 		$364.99 1
<65500 LR017780
SUPPORT - SEAT BACK - LUMBAR
Rear Seat - Power 4-Way Lumbar / 60% Seat / From: AA000001 		$406.66 1
HM1 HAN500230
BOLT
Armrest / From: AA000001 		$6.81 2
HM2 HZU500040
BUMP STOP
Buffer / From: AA000001 		$12.12 2
HS1 HYP500210
SCREW
M8 X 14 / From: AA000001 		$1.16 2
HS2 HYP000290
SCREW
M8, Ski Bag / From: AA000001 		$1.16 1
HS3 HAN500240
BOLT
Armrest, M6 / From: AA000001 		$16.15 1
HS4 HYP000300
SCREW
M6 / From: AA000001 		$3.78 2
HS5 HYP000230
SCREW - SELF-TAPPING
Bezel Only, Only For Seat Belt / From: AA000001 		$1.09 2
HW1 LR023211
WASHER - WAVE
Wavy Washer / From: AA000001 		$12.72 2

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
