Lower Body Guards And Shields (Accessory) (With Power Deployable Running Board) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

View All

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Lower Body Guards And Shields (Accessory) (With Power Deployable Running Board) ((V) FROMAA000001)

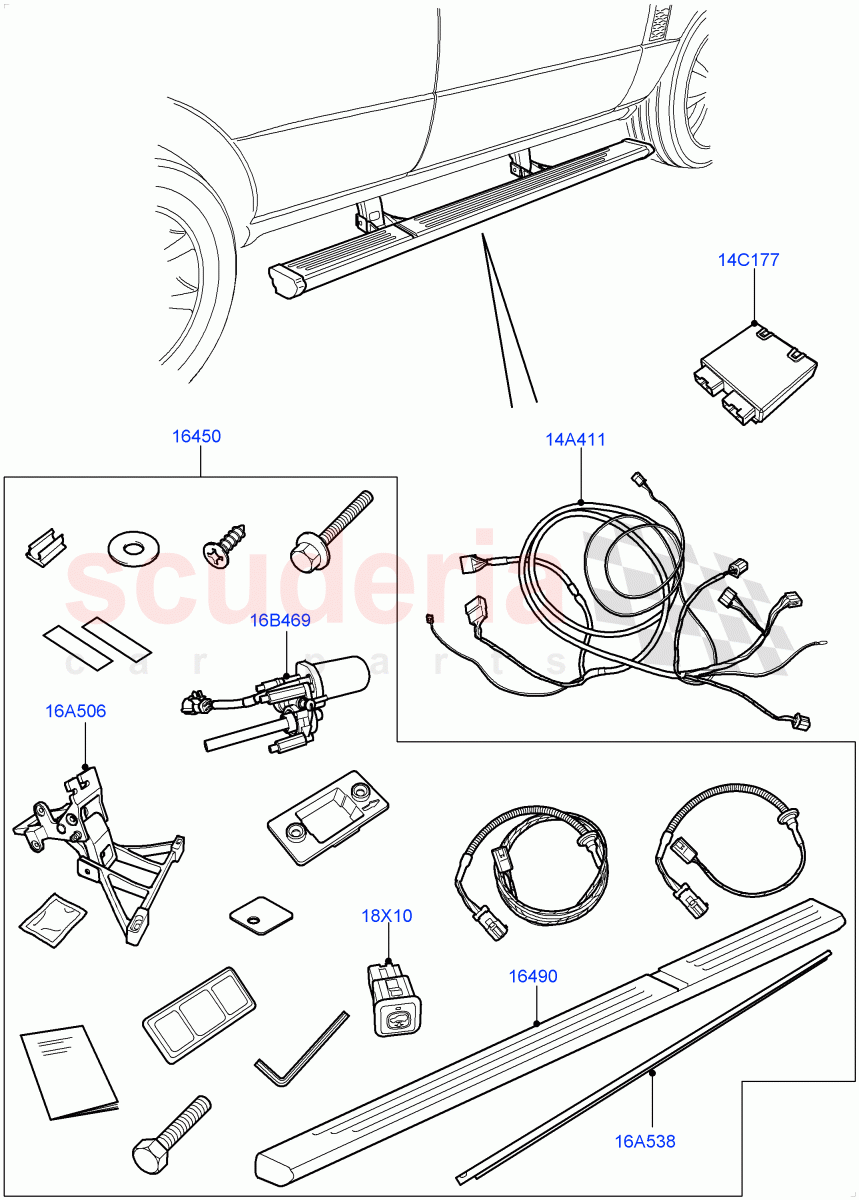

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	VPLMP0041	KIT - SIDE STEPS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004814	MAT	Enquire	To Order
	LR004813	MAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	VPLMP0001	MICROSWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	VPLMV0023	HARNESS - SIDE STEP	Enquire	To Order
	VPLMV0080	HARNESS - SIDE STEP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	VPLMP0026	MODULE - SIDE STEP CONTROL	Enquire	To Order
	VPLMP0097	MODULE - SIDE STEP CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004810	BRACKET	Enquire	To Order
	LR004809	BRACKET	Enquire	To Order
	LR004812	BRACKET	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR004816	BAR - ROLL	Enquire	To Order
	LR004815	BAR - ROLL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004808	MOTOR	Enquire	To Order
	LR004807	MOTOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
14A411	VPLMV0023	HARNESS - SIDE STEP	VPLMV0023 HARNESS - SIDE STEP Wiring Harness / From: AA000001 / To: BA999999	-	1	Enquire
14A411	VPLMV0080	HARNESS - SIDE STEP	VPLMV0080 HARNESS - SIDE STEP Wiring Harness / From: CA000001	-	1	Enquire
14C177	VPLMP0026	MODULE - SIDE STEP CONTROL	VPLMP0026 MODULE - SIDE STEP CONTROL Power Deployable / From: AA000001 / To: AA999999	-	1	Enquire
14C177	VPLMP0097	MODULE - SIDE STEP CONTROL	VPLMP0097 MODULE - SIDE STEP CONTROL Power Deployable / From: BA000001	-	1	Enquire
16A506	LR004810	BRACKET	LR004810 BRACKET RH, Front, Power Deployable / From: AA000001	-	1	Enquire
16A506	LR004809	BRACKET	LR004809 BRACKET LH, Front, Power Deployable / From: AA000001	-	1	Enquire
16A506	LR004812	BRACKET	LR004812 BRACKET RH, Power Deployable, Rear / From: AA000001	-	1	Enquire
16A506	LR004811	BRACKET	LR004811 BRACKET LH, Power Deployable, Rear / From: AA000001	-	1	Enquire
16A538	LR004816	BAR - ROLL	LR004816 BAR - ROLL RH, Power Deployable / From: AA000001	-	1	Enquire
16A538	LR004815	BAR - ROLL	LR004815 BAR - ROLL LH, Power Deployable / From: AA000001	-	1	Enquire
16B469	LR004808	MOTOR	LR004808 MOTOR RH, Power Deployable / From: AA000001	-	1	Enquire
16B469	LR004807	MOTOR	LR004807 MOTOR LH, Power Deployable / From: AA000001	-	1	Enquire
18X10	VPLMP0001	MICROSWITCH	VPLMP0001 MICROSWITCH From: AA000001	-	1	Enquire
16450	VPLMP0041	KIT - SIDE STEPS	VPLMP0041 KIT - SIDE STEPS For Bodykit Vehicles Please Order Sill Moulding LR018383 And LR018384, Less Harness, Power Deployable / From: AA000001	-	1	Enquire
16490	LR004814	MAT	LR004814 MAT RH, Power Deployable / From: AA000001	-	1	Enquire
16490	LR004813	MAT	LR004813 MAT LH, Power Deployable / From: AA000001	-	1	Enquire
