Name: Starter Motor (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)
Rating: 5.0 (1 reviews)

View All

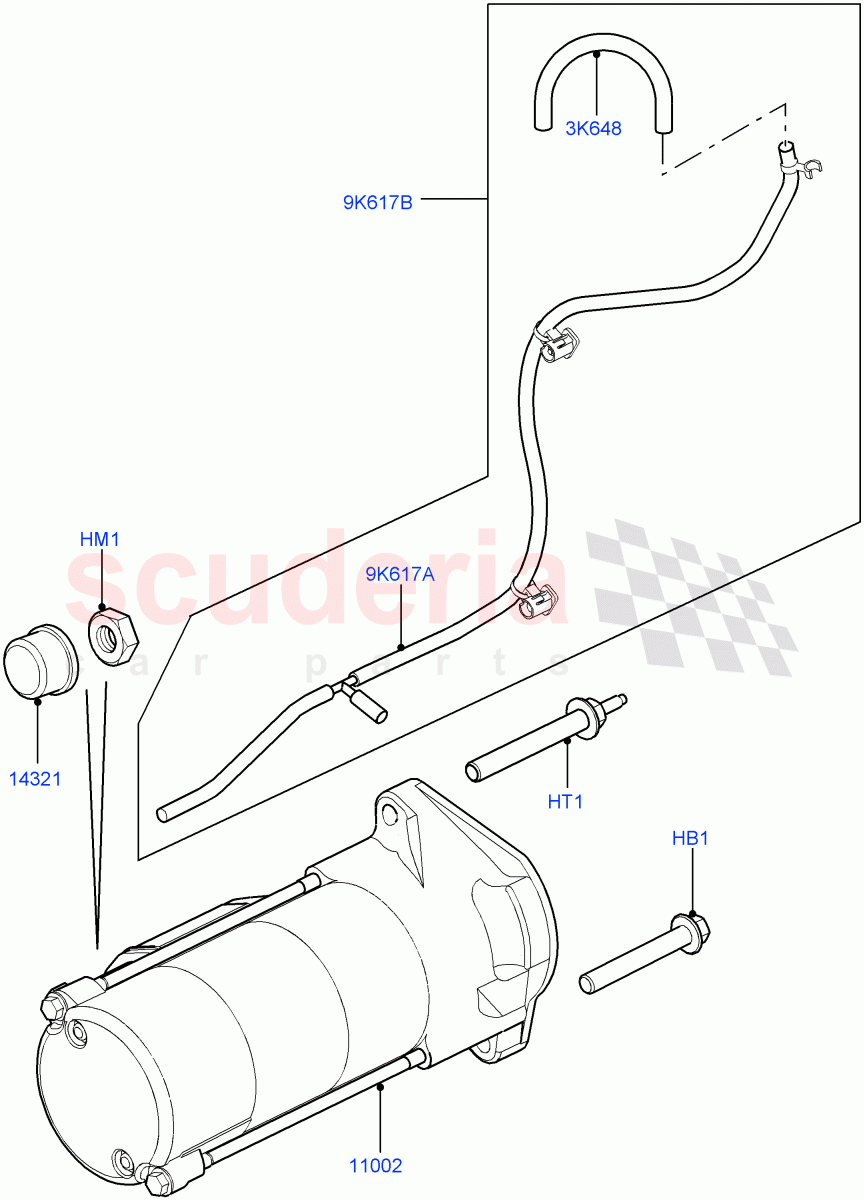

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FB110146	BOLT - HEX.HEAD	$1.74	To Order

Photo	Part No	Description	Price (each)	Stock
	FN110042	NUT	$0.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017279	STUD	$2.16	To Order

Photo	Part No	Description	Price (each)	Stock
	YQD500430	COVER - STARTER MOTOR TERMINAL	$2.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031127	TUBE - BREATHER	$4.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020517	TUBE - BREATHER	$40.25	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FB110146	BOLT - HEX.HEAD	FB110146 BOLT - HEX.HEAD Hexagonal Head, M10 x 70MM / From: BA000001	$1.74	2
HM1	FN110042	NUT	FN110042 NUT M10, Nut / From: BA000001	$0.80	1
HT1	LR017279	STUD	LR017279 STUD M10 x 75MM, M6 X 16MM / From: BA000001	$2.16	1
3K648	LR031127	TUBE - BREATHER	LR031127 TUBE - BREATHER Top / From: BA348338	$4.35	1
9K617A	LR020517	TUBE - BREATHER	LR020517 TUBE - BREATHER From: BA000001 / To: BA348337	$40.25	1
9K617B	LR027548	TUBE - BREATHER	LR027548 TUBE - BREATHER From: BA348338 / To: CA363959	$35.54	1
9K617B	LR034094	TUBE - BREATHER	LR034094 TUBE - BREATHER From: CA363960	$35.93	1
11002	LR021461	STARTER MOTOR	LR021461 STARTER MOTOR From: BA000001 / To: CA361496	$545.66	1
11002	LR032541	STARTER MOTOR	LR032541 STARTER MOTOR From: CA361497	$542.73	1
14321	YQD500430	COVER - STARTER MOTOR TERMINAL	YQD500430 COVER - STARTER MOTOR TERMINAL From: BA000001	$2.54	1

Starter Motor (4.4L Dohc Ditc V8 Diesel) ((V) Fromba000001)

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]
